Glove box driver side for BMW 7 Series E38 728i (2001)

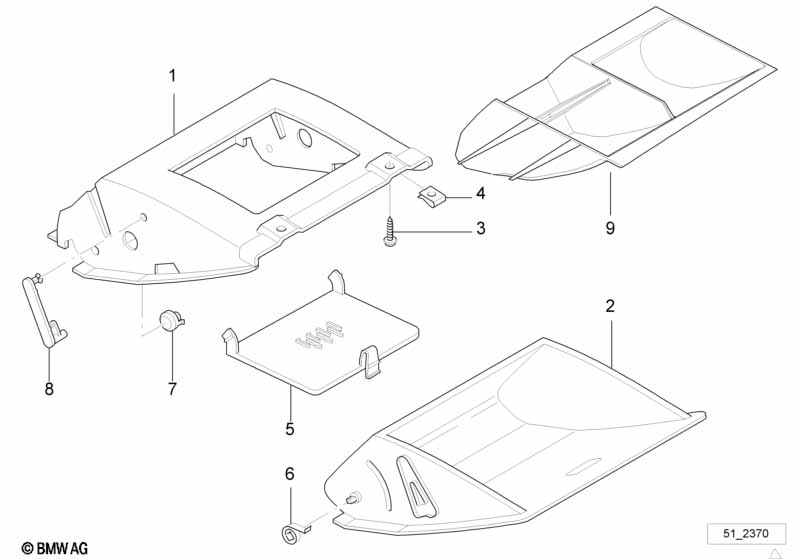

This Glove box driver side technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Folding partition housing | 1 | 51458150464 | Shop at ECS Tuning | ||||||
| 02 | Hinged compartment in dashboard | GRAU | 1 | 51458184101 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hinged compartment in dashboard | SCHWARZ | 1 | 51458184102 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hinged compartment in dashboard | MARINEBLAU | 1 | 51458184103 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hinged compartment in dashboard | SANDBEIGE | 1 | 51458184104 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hinged compartment in dashboard | LAVENDELGRAU | 1 | 51458184105 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hinged compartment in dashboard | DUNKELGRUEN | 1 | 51458184106 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hinged compartment in dashboard | PASTELLGRUEN | 1 | 51458184107 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hinged compartment in dashboard | PEARLBEIGE | 1 | 09/1998 | 51458251395 | ENDED | Shop at ECS Tuning | |||
| For vehicles with All leather equipment Montana |
=Yes |
|||||||||
| 02 | Hinged compartment in dashboard | GRAU | 1 | 51458184115 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hinged compartment in dashboard | SCHWARZ | 1 | 51458184116 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hinged compartment in dashboard | MARINEBLAU | 1 | 51458184117 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hinged compartment in dashboard | SANDBEIGE | 1 | 51458184118 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hinged compartment in dashboard | LAVENDELGRAU | 1 | 51458184119 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hinged compartment in dashboard | DUNKELGRUEN | 1 | 51458184120 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hinged compartment in dashboard | PASTELLGRUEN | 1 | 51458184121 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hinged compartment in dashboard | PEARLBEIGE | 1 | 09/1998 | 51458251398 | ENDED | Shop at ECS Tuning | |||
| 03 | Fillister head self-tapping screw | ST4,2X19 | 2 | 51431874616 | $0.39 | Shop at ECS Tuning | ||||
| 04 | C-clip nut | 2 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 05 | Fuse box cover | 1 | 51458171438 | Shop at ECS Tuning | ||||||
| 06 | Folding partition spring | 2 | 51458125714 | $2.32 | Shop at ECS Tuning | |||||
| 07 | Folding partition damper | 1 | 51458160439 | $9.03 | Shop at ECS Tuning | |||||
| 08 | Folding partition guiding bow | 1 | 51458125713 | $3.47 | Shop at ECS Tuning | |||||
| 09 | Folding partition insert | 1 | 51458170283 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 728i Glove box driver side?
- This technical diagram illustrates the Glove box driver side within the Vehicle trim group for the 7 Series E38 728i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Folding partition housing (Part #51458150464).
- Which models use the hardware listed in this Glove box driver side?
- The hardware and components featured in the Glove box driver side are specific to the 7 Series E38 728i produced during 2001. These technical specifications ensure that parts like the Folding partition housing (51458150464) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Glove box driver side assembly?
- Each item in the Glove box driver side corresponds to the numbered list below the illustration. For the 7 Series E38 728i, you can identify the Folding partition housing by locating its position on the schematic, which then links to the official BMW part number 51458150464 for the Vehicle trim section.
