Sun visors for BMW 5 Series E39 530i (2003)

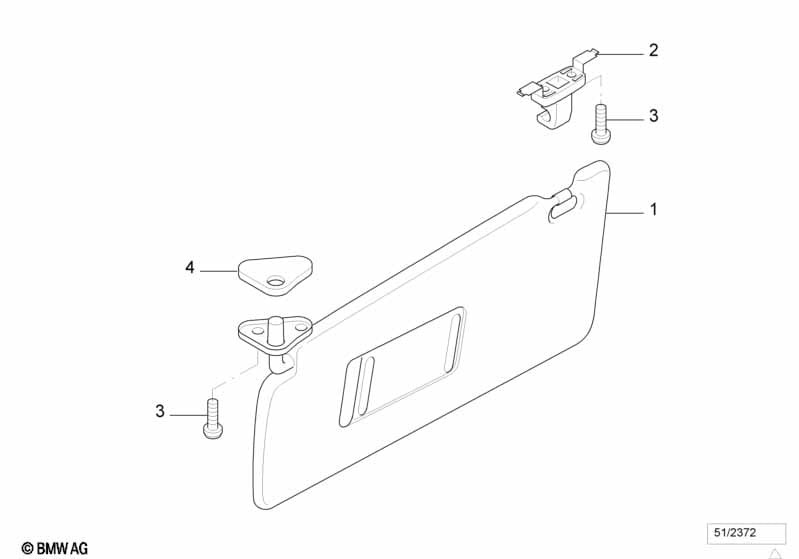

This Sun visors technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with ITS - Head airbag VINYL SUN VISOR |
=Yes |
|||||||||
| 01 | Lighted make-up sun visor left - ITS | HELLGRAU | 1 | 09/1997 | 51168237625 | $180.79 | ENDED | Shop at ECS Tuning | ||
| 01 | Lighted make-up sun visor right - ITS | HELLGRAU | 1 | 09/1997 | 51168237626 | $147.31 | ENDED | Shop at ECS Tuning | ||
| 01 | Lighted make-up sun visor left - ITS | SANDBEIGE | 1 | 09/1997 | 51168237627 | $147.31 | ENDED | Shop at ECS Tuning | ||
| 01 | Lighted make-up sun visor right - ITS | SANDBEIGE | 1 | 09/1997 | 51168237628 | $180.79 | ENDED | Shop at ECS Tuning | ||
| For vehicles with ITS - Head airbag CLOTH SUN VISOR |
=Yes |
|||||||||
| 01 | Lighted make-up sun visor left - ITS | SCHWARZ | 1 | 09/1997 | 51162252919 | $112.72 | ENDED | Shop at ECS Tuning | ||
| 01 | Lighted make-up sun visor right - ITS | SCHWARZ | 1 | 09/1997 | 51162252920 | $112.72 | ENDED | Shop at ECS Tuning | ||
| 01 | Lighted make-up sun visor left - ITS | HELLGRAU | 1 | 09/1997 | 51168242537 | $180.79 | Shop at ECS Tuning | |||
| 01 | Lighted make-up sun visor right - ITS | HELLGRAU | 1 | 09/1997 | 51168242538 | $139.50 | Shop at ECS Tuning | |||
| 01 | Lighted make-up sun visor left - ITS | SANDBEIGE | 1 | 09/1997 | 51168242539 | $180.79 | Shop at ECS Tuning | |||
| 01 | Lighted make-up sun visor right - ITS | SANDBEIGE | 1 | 09/1997 | 51168242540 | $139.50 | ENDED | Shop at ECS Tuning | ||
| 02 | Sun visor bracket | HELLGRAU | 2 | 51168174715 | $1.68 | Shop at ECS Tuning | ||||
| 02 | Sun visor bracket | SANDBEIGE | 2 | 51168174716 | $1.68 | Shop at ECS Tuning | ||||
| 02 | Sun visor bracket | PEARLBEIGE | 2 | 51168250922 | $1.68 | Shop at ECS Tuning | ||||
| 02 | Sun visor bracket | SCHWARZ | 2 | 51169151525 | $1.68 | Shop at ECS Tuning | ||||
| 03 | Fillister head self-tapping screw | ST4,2X16MM | 8 | 07147144275 | $0.10 | Shop at ECS Tuning | ||||
| 04 | Left bearing bracket cover | ANTHRAZIT | 2 | 51162268885 | $0.76 | Shop at ECS Tuning | ||||
| 04 | Right bearing bracket cover | ANTHRAZIT | 2 | 51162268886 | $0.92 | Shop at ECS Tuning | ||||
| 04 | Left bearing bracket cover | HELLGRAU | 2 | 51168169241 | $0.92 | ENDED | Shop at ECS Tuning | |||
| 04 | Right bearing bracket cover | HELLGRAU | 2 | 51168169242 | $0.92 | Shop at ECS Tuning | ||||
| 04 | Left bearing bracket cover | SANDBEIGE | 2 | 51168169243 | $0.92 | Shop at ECS Tuning | ||||
| 04 | Right bearing bracket cover | SANDBEIGE | 2 | 51168169244 | $0.92 | Shop at ECS Tuning | ||||
| 04 | Left bearing bracket cover | PEARLBEIGE | 2 | 09/1998 | 51168250913 | $0.99 | ENDED | Shop at ECS Tuning | ||
| 04 | Right bearing bracket cover | PEARLBEIGE | 2 | 09/1998 | 51168250914 | $1.00 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
