Interior mirror for BMW 7 Series E38 735i (2001)

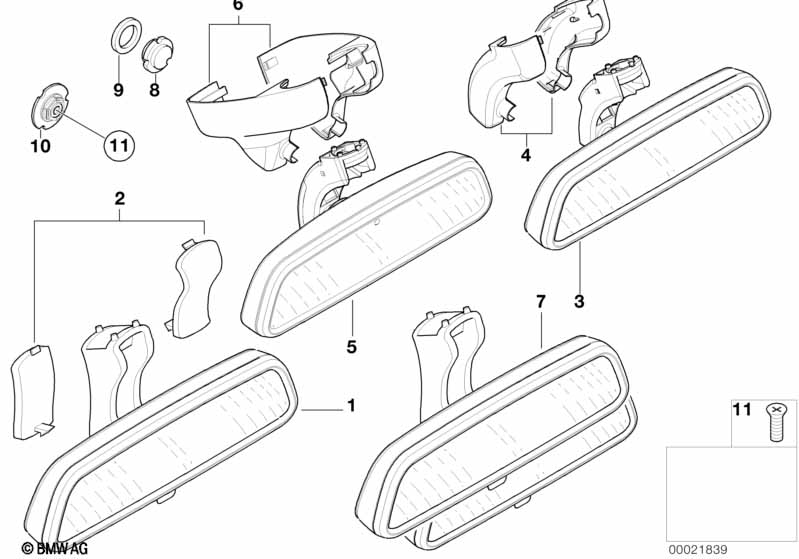

This Interior mirror technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | EC = Electrochromatic Radio = Radio-wave remote control LED = Light-emitting diode for alarm system GTO = Integrated remote control/garage door opener FLA = High-beam assistant Compass = Digital compass display ETC = Electronic Toll Collection TLC = Out-of-lane warning |
|||||||||
| 01 | Interior-mirror, manual | 1 | 51168174088 | $86.23 | ENDED | Shop at ECS Tuning | ||||
| 03 | Rearview mirror EC / LED | 1 | 10/1997 | 51169134459 | $250.95 | Shop at ECS Tuning | ||||
| 03 | Inside rearview mirror, man / LED / IR | INFRARED | 1 | 09/1998 | 51169134425 | $496.72 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Rain sensor |
=Yes |
|||||||||
| 03 | Rearview mirror EC / LED | 1 | 10/1997 | 51169134459 | $250.95 | Shop at ECS Tuning | ||||
| 04 | Set of covers mirror baseplate | BLACK | 1 | 10/1997 | 51167062264 | $3.94 | Shop at ECS Tuning | |||
| 05 | Rearview mirror, manual / LED | 1 | 09/1998 | 51169218046 | Shop at ECS Tuning | |||||
| For vehicles with Rain sensor |
=Yes |
|||||||||
| 05 | Rearview mirror, manual / LED | 1 | 09/1998 | 51169218046 | Shop at ECS Tuning | |||||
| 06 | Set of covers mirror baseplate | SCHWARZ | 1 | 09/1998 | 51168257203 | $3.94 | Shop at ECS Tuning | |||
| 07 | Tandem interior mirror | 1 | 51168107578 | $173.77 | ENDED | Shop at ECS Tuning | ||||
| 08 | Base plate, rear view mirror, interior | 1 | 51318145530 | $8.72 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Glass activator 1 | 30ML | 1 | 83190152036 | $22.29 | ENDED | Shop at ECS Tuning | |||
| -- | Adh.set f.int.rearv.mirr.Araldite 2013-1 | 50ML | 1 | 83192456696 | Shop at ECS Tuning | |||||
| 09 | Cover, base plate f interior mirror | 1 | 51161954117 | $1.21 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
