Rear center console for BMW 3 Series E36 323i (1999)

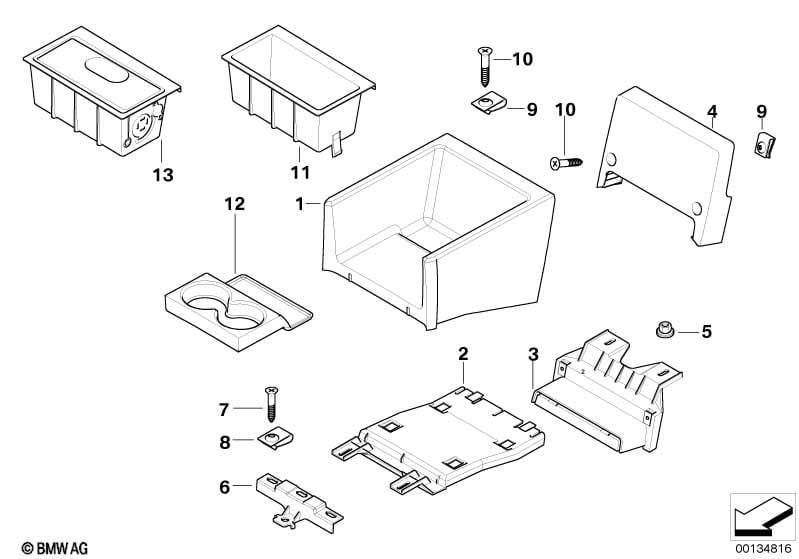

This Rear center console technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Console | SCHWARZ | 1 | 51168186790 | $95.97 | ENDED | Shop at ECS Tuning | |||
| 01 | Console | GRAU | 1 | 51168186791 | $95.97 | ENDED | Shop at ECS Tuning | |||
| 01 | Console | BEIGE | 1 | 51168186792 | $95.97 | ENDED | Shop at ECS Tuning | |||
| For vehicles with All leather equipment Walknappa |
=Yes |
|||||||||
| 01 | Console | L7SW SCHWARZ | 1 | 51162255384 | $376.09 | ENDED | Shop at ECS Tuning | |||
| 01 | Console | L7TT GRAU | 1 | 51162255385 | $376.09 | ENDED | Shop at ECS Tuning | |||
| 01 | Console | L7SN BEIGE | 1 | 51162265640 | ENDED | Shop at ECS Tuning | ||||
| 02 | Carrier | 1 | 51168169526 | $16.64 | Shop at ECS Tuning | |||||
| 03 | Carrier | SCHWARZ'93 | 1 | 51168190750 | $9.37 | ENDED | Shop at ECS Tuning | |||
| 03 | Carrier | GRAU | 1 | 51168190751 | ENDED | Shop at ECS Tuning | ||||
| 04 | Cover | SCHWARZ | 1 | 51168186787 | $11.18 | ENDED | Shop at ECS Tuning | |||
| 04 | Cover | GRAU | 1 | 51168186788 | $11.18 | ENDED | Shop at ECS Tuning | |||
| 04 | Cover | BEIGE | 1 | 51168186789 | $11.55 | ENDED | Shop at ECS Tuning | |||
| 05 | Plastic capnut with washer | D=18MM | 2 | 09/1999 | 51161943122 | $0.39 | Shop at ECS Tuning | |||
| 05 | Plastic nut for coarse threaded pin | M6 | 2 | 07147336362 | Shop at ECS Tuning | |||||
| 06 | Support | 1 | 51168172467 | $5.79 | Shop at ECS Tuning | |||||
| 07 | Fillister head self-tapping screw | ST4,8X16 | 2 | 07147137416 | $0.20 | Shop at ECS Tuning | ||||
| 08 | Plug-in nut | M5 | 2 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 09 | C-clip nut | 4 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 10 | Fillister head self-tapping screw | ST4,2X13-Z2 | 4 | 07119907939 | $0.11 | Shop at ECS Tuning | ||||
| 12 | Insert | 1 | 51168199768 | $35.28 | ENDED | Shop at ECS Tuning | ||||
| 13 | Ashtray rear | 1 | 51168186306 | $26.30 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
