Wheelarch trim for BMW 4 Series F82 M4 M4 (2017)

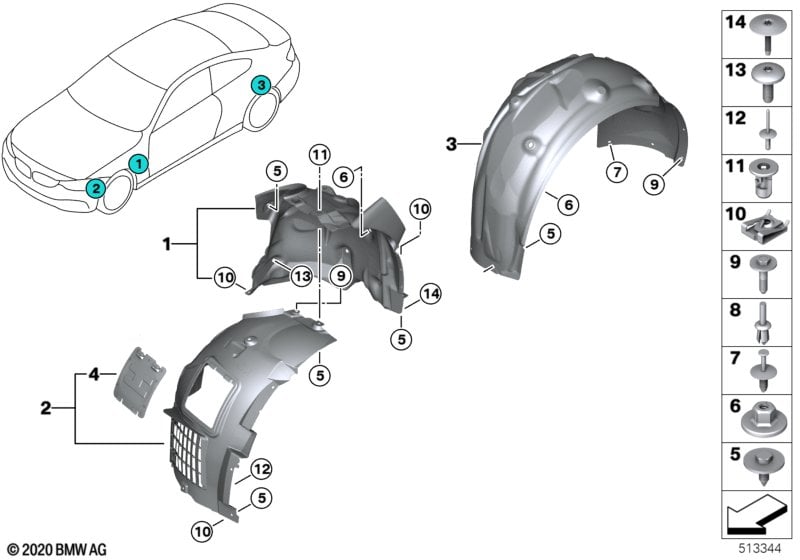

This Wheelarch trim technical drawing provides a detailed breakdown of the assembly for the 4 Series F82 M4 M4. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, wheelhousing, front end rear left | 1 | 51718056409 | Shop at ECS Tuning | ||||||
| 01 | Cover, wheelhousing front end rear right | 1 | 51718056410 | Shop at ECS Tuning | ||||||
| 02 | Cover, wheelhousing, fr. sec., front lft | 1 | 51718054279 | Shop at ECS Tuning | ||||||
| 02 | Cover, wheelhousing, fr. sec., front rgt | 1 | 51718054280 | Shop at ECS Tuning | ||||||
| 03 | Cover, wheel housing, rear left | 1 | 51718054275 | Shop at ECS Tuning | ||||||
| 03 | Cover, wheel housing, rear right | 1 | 51718054276 | Shop at ECS Tuning | ||||||
| 04 | Cover for bulb change | 2 | 51717260397 | Shop at ECS Tuning | ||||||
| 05 | Hex bolt | TS5X17 SW8 D=22 | 26 | 07149126886 | Shop at ECS Tuning | |||||
| 06 | Plastic capnut with washer | D=22MM | 26 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Expanding rivet | 10 | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
| 08 | Expanding rivet | 12 | 51161881149 | $0.20 | Shop at ECS Tuning | |||||
| 09 | Hex bolt | 6 | 07149110671 | $0.55 | Shop at ECS Tuning | |||||
| 10 | C-clip nut | 4 | 51717065773 | Shop at ECS Tuning | ||||||
| 11 | Expanding nut | L=18.4, DMAX=18 | 6 | 07147201307 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Expanding rivet | X | 51717002953 | $0.78 | Shop at ECS Tuning | |||||
| 13 | Torx screw with washer | ISA M6X18 | X | 07146978618 | $2.56 | Shop at ECS Tuning | ||||
| 14 | Securing pin | X | 07147296886 | Shop at ECS Tuning |
