Mounting parts, center console for BMW 7 Series E38 730i (1996)

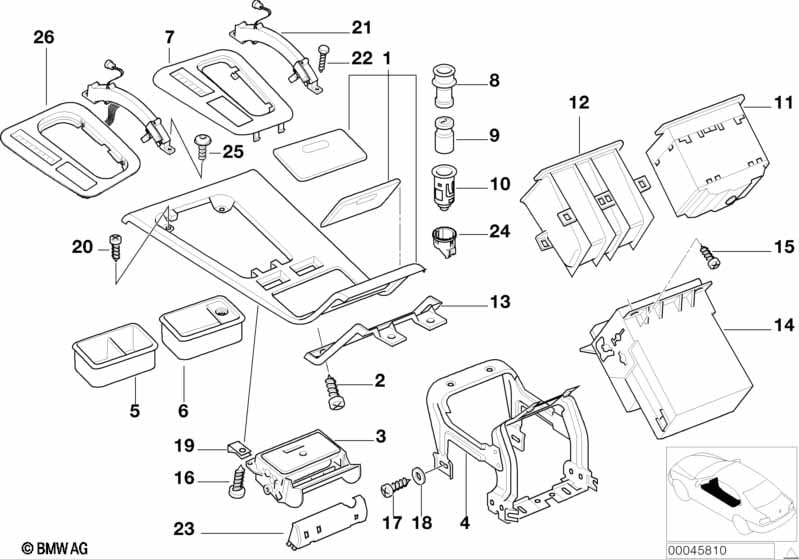

This Mounting parts, center console technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Base of center console | NUSSBAUM | 1 | 03/1997 | 51168238029 | $723.83 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Central locking system switch | 1 | 03/1997 | 61318360828 | $73.75 | Shop at ECS Tuning | ||||
| -- | Adapter lead | 1 | 03/1997 | 61128378985 | $16.68 | Shop at ECS Tuning | ||||
| 01 | Base of center console | VAVONA | 1 | 03/1997 | 51168238031 | $694.71 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Central locking system switch | 1 | 03/1997 | 61318360828 | $73.75 | Shop at ECS Tuning | ||||
| -- | Adapter lead | 1 | 03/1997 | 61128378985 | $16.68 | Shop at ECS Tuning | ||||
| For vehicles with SA 533 = Blower rear air conditioning ONLY APPLIES TO BLOWER REAR |
=Yes |
|||||||||
| 01 | Base of center console | NUSSBAUM | 1 | 03/1997 | 51168238033 | $723.83 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Central locking system switch | 1 | 03/1997 | 61318360828 | $73.75 | Shop at ECS Tuning | ||||
| -- | Adapter lead | 1 | 03/1997 | 61128378985 | $16.68 | Shop at ECS Tuning | ||||
| 01 | Base of center console | VAVONA | 1 | 03/1997 | 51168238035 | $694.71 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Central locking system switch | 1 | 03/1997 | 61318360828 | $73.75 | Shop at ECS Tuning | ||||
| -- | Adapter lead | 1 | 03/1997 | 61128378985 | $16.68 | Shop at ECS Tuning | ||||
| 02 | Fillister head self-tapping screw | ST4,8X16-Z1 | 3 | 07119907925 | $0.25 | Shop at ECS Tuning | ||||
| 03 | Center console insert | 1 | 09/1996 | 51168160423 | $126.68 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Lighter element | 1 | 09/1996 | 61349308246 | Shop at ECS Tuning | |||||
| 05 | Coinbox | SCHWARZ | 1 | 51168163967 | $17.00 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Ashtray insert | SCHWARZ | 1 | 51168170481 | $15.73 | ENDED | Shop at ECS Tuning | |||
| 07 | Cover, gear selecting lever | SCHWARZ | 1 | 51168163810 | $156.81 | Shop at ECS Tuning | ||||
| 07 | Preselect.lever cover f steptronic | SCHWARZ | 1 | 51168193012 | $157.36 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Steptronic/sports program |
=Yes |
|||||||||
| 07 | Preselect.lever cover f steptronic | SCHWARZ | 1 | 51168221520 | $157.36 | Shop at ECS Tuning | ||||
| 08 | Plug | 1 | 09/1996 | 51168119660 | $1.93 | Shop at ECS Tuning | ||||
| 09 | Lighter element | 1 | 09/1996 | 61341375967 | $19.58 | ENDED | Shop at ECS Tuning | |||
| 10 | Cigarette lighter socket | 1 | 09/1996 | 61348352287 | $65.47 | Shop at ECS Tuning | ||||
| 11 | Cassette box | 1 | 65148178966 | $132.07 | +core | Shop at ECS Tuning | ||||
| 12 | Center console storing partition | 1 | 51168161569 | $23.17 | +core | Shop at ECS Tuning | ||||
| 13 | Bracket, center console | 1 | 51168156667 | $8.00 | ENDED | Shop at ECS Tuning | ||||
| 14 | Rear center console insert | 1 | 51168150395 | $68.94 | Shop at ECS Tuning | |||||
| 15 | Fillister head self-tapping screw | ST3,5X13-Z1 | 2 | 07119907951 | $0.18 | Shop at ECS Tuning | ||||
| 16 | Fillister head self-tapping screw | ST4,8X13-Z1 | 2 | 07119907956 | $0.18 | Shop at ECS Tuning | ||||
| 17 | Fillister head screw | M4X14 | 4 | 07119900246 | $0.20 | Shop at ECS Tuning | ||||
| 18 | Washer | 9X4,3X0,8-200HV | 4 | 07119904205 | $0.07 | Shop at ECS Tuning | ||||
| 19 | Body nut | ST4,8-9-ZNS3 | 2 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 20 | Fillister head self-tapping screw | ST4,2X16-Z2 | 2 | 07119907948 | $0.18 | Shop at ECS Tuning | ||||
| For vehicles with Steptronic |
=Yes |
|||||||||
| 21 | Cover, gear selector switch | 1 | 51168171666 | $169.95 | ENDED | Shop at ECS Tuning | ||||
| 22 | Screw | M3.5X10MM | 2 | 07119910393 | $0.22 | Shop at ECS Tuning | ||||
| 23 | Covering cap | SCHWARZ | 1 | 51168202971 | $6.17 | Shop at ECS Tuning | ||||
| 24 | Illuminated ring | 1 | 09/1996 | 51168173140 | $1.20 | ENDED | Shop at ECS Tuning | |||
| 26 | Cover, gear selecting lever | SCHWARZ | 1 | 51168163810 | $156.81 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
