Glove box for BMW 3 Series E36 318ti (1998)

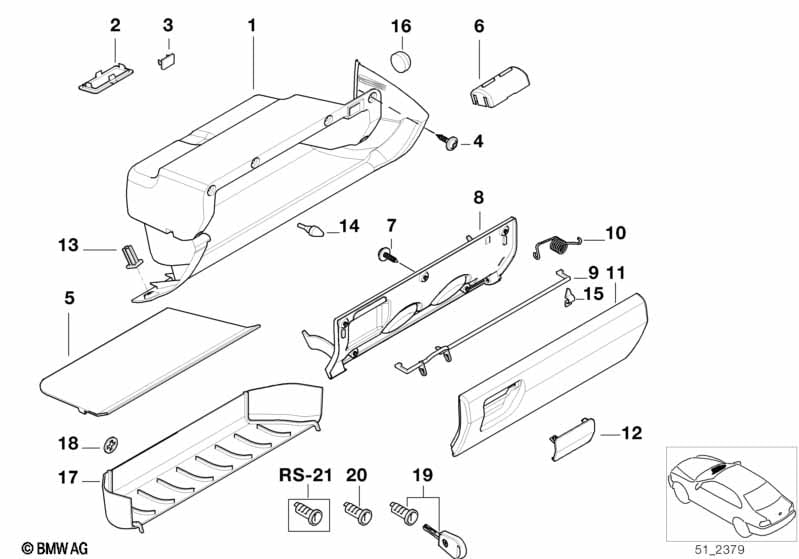

This Glove box technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Glove box housing | SANDGRAU | 1 | 51168185767 | $94.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box housing | ANTHRAZIT | 1 | 51168185768 | Shop at ECS Tuning | |||||
| 01 | Glove box housing | ANTHR./ANTHR. | 1 | 51168197941 | $94.30 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO PERSONAL-CHOICE | ||||||||||
| 01 | Glove box housing | SANDGR./ANTHR. | 1 | 51168197937 | $94.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box housing | SANDGR./SANDGR. | 1 | 51168197938 | $94.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box housing | SANDGR./KGS-BL. | 1 | 51168197939 | $94.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box housing | SANDGR./KAR-ROT | 1 | 51168197940 | $94.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box housing | ANTHR./ANTHR. | 1 | 51168197941 | $94.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box housing | ANTHR./SANDGRAU | 1 | 51168197942 | $94.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box housing | ANTHR./KGS-BLAU | 1 | 51168197943 | $94.30 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Glove box housing | ANTHR./KARM-ROT | 1 | 51168197944 | $94.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box housing | ANTHR./LEUCHTGR | 1 | 51168197945 | $94.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box housing | ANTHR./ROT | 1 | 51168197946 | $94.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box housing | SANDGR./AUBERGI | 1 | 51168197947 | $94.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box housing | SANDGR./MOOSGR. | 1 | 51168197948 | $94.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box housing | ANTHR./AUBERGIN | 1 | 51168197949 | $94.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box housing | ANTHR/MOOSGRUEN | 1 | 51168197950 | $94.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box housing | SANDGR/SANDG-HE | 1 | 51168197951 | $94.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box housing | SANDGR./VIOLETT | 1 | 51168197952 | $94.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box housing | ANTHR./SANDG-HE | 1 | 51168197953 | $94.30 | ENDED | Shop at ECS Tuning | |||
| 01 | Glove box housing | ANTHR./VIOLETT | 1 | 51168197954 | $94.30 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | SANDGRAU | 1 | 51168186088 | $0.65 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover | ANTHRAZIT | 1 | 51168186089 | $0.65 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover | SANDGRAU | 1 | 51168186086 | $0.48 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover | ANTHRAZIT | 1 | 51168186087 | $0.64 | ENDED | Shop at ECS Tuning | |||
| 04 | Sheet metal screw | ST4,2X19-U2-C-H | X | 07119904176 | $0.25 | Shop at ECS Tuning | ||||
| 05 | Glove box bottom panel | 1 | 51168146471 | $6.18 | Shop at ECS Tuning | |||||
| 06 | Floor lamp cover | 1 | 51458166683 | $4.60 | Shop at ECS Tuning | |||||
| 07 | Fillister head self-tapping screw | X | 51168172604 | $0.27 | Shop at ECS Tuning | |||||
| 08 | Cover | 1 | 09/1996 | 51168222499 | $16.65 | Shop at ECS Tuning | ||||
| 09 | Rod | 1 | 09/1996 | 51168222501 | $14.70 | Shop at ECS Tuning | ||||
| 10 | Spring | 1 | 09/1996 | 51168222498 | $1.47 | Shop at ECS Tuning | ||||
| 11 | Glove box lid | SANDGRAU | 1 | 09/1996 | 51168222487 | $121.84 | Shop at ECS Tuning | |||
| 11 | Glove box lid | ANTHRAZIT | 1 | 09/1996 | 51168222488 | $121.84 | ENDED | Shop at ECS Tuning | ||
| 12 | Flap | 1 | 51168146466 | $9.93 | Shop at ECS Tuning | |||||
| 12 | Lockable flap | 1 | 51168218167 | $29.10 | Shop at ECS Tuning | |||||
| 13 | Plug-in nut | X | 51458191429 | $0.56 | Shop at ECS Tuning | |||||
| 14 | Rubber buffer | 2 | 51451917675 | $0.50 | Shop at ECS Tuning | |||||
| 15 | Supporting bracket | 3 | 51168195278 | $0.32 | Shop at ECS Tuning | |||||
| 15 | Supporting bracket | 1 | 51168200129 | $0.35 | Shop at ECS Tuning | |||||
| 16 | Cap | SCHWARZ | 1 | 51161949793 | $0.42 | Shop at ECS Tuning | ||||
| 16 | Cap | SANDGRAU | 1 | 51168191949 | $0.19 | Shop at ECS Tuning | ||||
| 17 | Insert | PAPPEL NATUR | 1 | 51162266506 | $796.51 | ENDED, +core | Shop at ECS Tuning | |||
| 17 | INSERT, birchwood | ANTHRAZIT | 1 | 51162428632 | $892.80 | ENDED, +core, NoS | Shop at ECS Tuning | |||
| 17 | Insert | NUSSBAUM | 1 | 09/1996 | 51162493737 | $892.80 | ENDED, +core | Shop at ECS Tuning | ||
| 18 | Spring nut | 2 | 07129926325 | $0.11 | Shop at ECS Tuning | |||||
| 19 | Rep.kit f lock cylinder | 1 | 51169061388 | $36.91 | Shop at ECS Tuning | |||||
| 20 | Rep.kit f lock cylinder | 1 | 51169061388 | $36.91 | Shop at ECS Tuning | |||||
| 21 | Rep.kit f lock cylinder | 1 | 51169061388 | $36.91 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- NoS = No Stock (Part centrally not stocked)
