Trim panel leg room for BMW 7 Series E38 728i (2001)

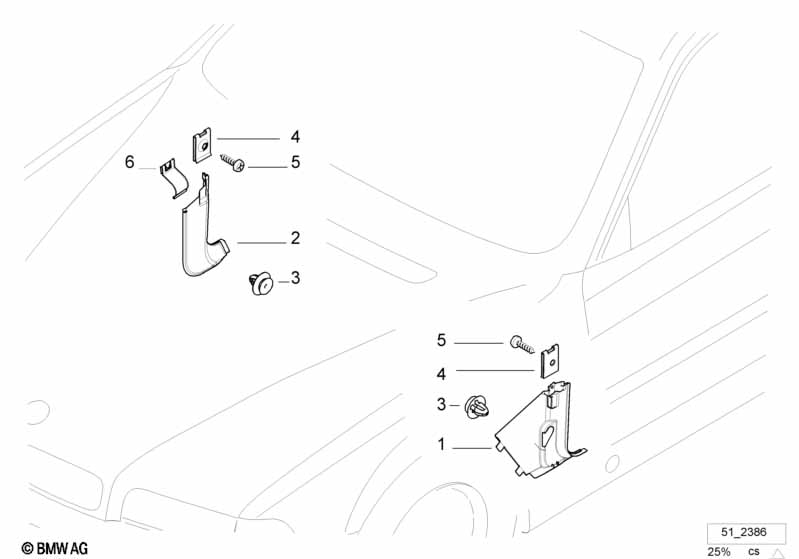

This Trim panel leg room technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lateral trim panel front left | GRAU | 1 | 51438174807 | $22.31 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel front left | ANTHRAZIT | 1 | 51438174809 | $22.31 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel front left | MARINEBLAU | 1 | 51438174811 | $22.31 | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel front left | SANDBEIGE | 1 | 51438174813 | $22.31 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel front left | LAVENDELGRAU | 1 | 51438174815 | $22.31 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel front left | DUNKELGRUEN | 1 | 51438174817 | $19.31 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel front left | PASTELLGRUEN | 1 | 51438174819 | $19.31 | ENDED | Shop at ECS Tuning | |||
| 01 | Lateral trim panel front left | TOBACCOBRAUN | 1 | 09/1998 | 51438250925 | $19.31 | ENDED | Shop at ECS Tuning | ||
| 01 | Lateral trim panel front right | TOBACCOBRAUN | 1 | 09/1998 | 51438250926 | $14.17 | ENDED | Shop at ECS Tuning | ||
| 02 | Lateral trim panel front right | GRAU | 1 | 51438174808 | $22.31 | Shop at ECS Tuning | ||||
| 02 | Lateral trim panel front right | ANTHRAZIT | 1 | 51438174810 | $22.31 | Shop at ECS Tuning | ||||
| 02 | Lateral trim panel front right | MARINEBLAU | 1 | 51438174812 | $22.31 | Shop at ECS Tuning | ||||
| 02 | Lateral trim panel front right | SANDBEIGE | 1 | 51438174814 | $22.31 | Shop at ECS Tuning | ||||
| 02 | Lateral trim panel front right | LAVENDELGRAU | 1 | 51438174816 | $22.31 | ENDED | Shop at ECS Tuning | |||
| 02 | Lateral trim panel front right | DUNKELGRUEN | 1 | 51438174818 | $19.31 | ENDED | Shop at ECS Tuning | |||
| 02 | Lateral trim panel front right | PASTELGRUEN | 1 | 51438174820 | $19.31 | ENDED | Shop at ECS Tuning | |||
| 03 | Clip, black | 4 | 51498123832 | $0.29 | Shop at ECS Tuning | |||||
| 03 | Clip, bottom part | 4 | 51438225566 | $0.24 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Clamp | 4 | 51418212261 | $1.89 | Shop at ECS Tuning | |||||
| 04 | C-clip nut | 1 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 05 | Fillister head self-tapping screw | ST4,2X19 | 1 | 51431874616 | $0.39 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 06 | Warning torch holder | 1 | 51718170078 | $7.37 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
