Edge protector / Trim for entry for BMW 7 Series E38 740i (1996)

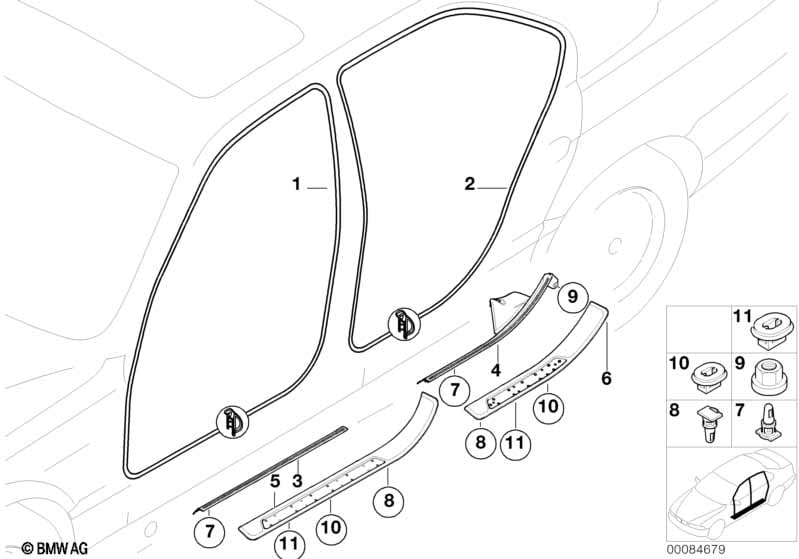

This Edge protector / Trim for entry technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Edge protection, door, front | GRAU | 2 | 51728175067 | $83.18 | Shop at ECS Tuning | ||||
| 01 | Edge protection, door, front | ANTHRAZIT | 2 | 51728175069 | $83.18 | ENDED | Shop at ECS Tuning | |||
| 01 | Edge protection, door, front | MARINEBLAU | 2 | 51728175071 | $83.18 | +core | Shop at ECS Tuning | |||
| 01 | Edge protection, door, front | LAVENDELGRAU | 2 | 51728175075 | $83.18 | +core | Shop at ECS Tuning | |||
| 01 | Edge protection, door, front | DUNKELGRUEN | 2 | 51728175077 | $83.18 | +core | Shop at ECS Tuning | |||
| 01 | Edge protection, door, front | PASTELLGRUEN | 2 | 51728175079 | $70.03 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Edge protection, door, rear left | GRAU | 1 | 51728175081 | $83.18 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Edge protection, door, rear right | GRAU | 1 | 51728175082 | $83.18 | +core | Shop at ECS Tuning | |||
| 02 | Edge protection, door, rear left | ANTHRAZIT | 1 | 51728175083 | $83.18 | +core | Shop at ECS Tuning | |||
| 02 | Edge protection, door, rear right | ANTHRAZIT | 1 | 51728175084 | $72.77 | +core | Shop at ECS Tuning | |||
| 02 | Edge protection, door, rear left | MARINEBLAU | 1 | 51728175085 | $70.03 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Edge protection, door, rear right | MARINEBLAU | 1 | 51728175086 | $83.18 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Edge protection, door, rear left | SANDBEIGE | 1 | 51728175087 | $83.18 | +core | Shop at ECS Tuning | |||
| 02 | Edge protection, door, rear right | SANDBEIGE | 1 | 51728175088 | $83.18 | +core | Shop at ECS Tuning | |||
| 02 | Edge protection, door, rear left | LAVENDELGRAU | 1 | 51728175089 | $70.03 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Edge protection, door, rear right | LAVENDELGRAU | 1 | 51728175090 | $83.18 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Edge protection, door, rear left | DUNKELGRUEN | 1 | 51728175091 | $70.03 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Edge protection, door, rear right | DUNKELGRUEN | 1 | 51728175092 | $70.03 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Edge protection, door, rear left | PASTELLGRUEN | 1 | 51728175093 | $70.03 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Edge protection, door, rear right | PASTELLGRUEN | 1 | 51728175094 | $70.03 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Front left sill strip | GRAU | 1 | 51478174501 | $13.38 | Shop at ECS Tuning | ||||
| 03 | Front right sill strip | GRAU | 1 | 51478174502 | $13.38 | Shop at ECS Tuning | ||||
| 03 | Front left sill strip | SCHWARZ | 1 | 51478174503 | $13.38 | Shop at ECS Tuning | ||||
| 03 | Front right sill strip | SCHWARZ | 1 | 51478174504 | $13.38 | Shop at ECS Tuning | ||||
| 03 | Front left sill strip | MARINEBLAU | 1 | 51478174505 | $13.38 | Shop at ECS Tuning | ||||
| 03 | Front right sill strip | MARINEBLAU | 1 | 51478174506 | $13.38 | Shop at ECS Tuning | ||||
| 03 | Front left sill strip | DUNKELGRUEN | 1 | 51478174507 | $13.38 | Shop at ECS Tuning | ||||
| 03 | Front right sill strip | DUNKELGRUEN | 1 | 51478174508 | $13.38 | Shop at ECS Tuning | ||||
| 03 | Front left sill strip | SANDBEIGE | 1 | 51478174509 | $13.38 | Shop at ECS Tuning | ||||
| 03 | Front right sill strip | SANDBEIGE | 1 | 51478174510 | $13.38 | Shop at ECS Tuning | ||||
| 03 | Front left sill strip | LAVENDELGRAU | 1 | 51478174511 | $13.38 | Shop at ECS Tuning | ||||
| 03 | Front right sill strip | LAVENDELGRAU | 1 | 51478174512 | $13.38 | Shop at ECS Tuning | ||||
| 03 | Front left sill strip | PASTELLGRUEN | 1 | 51478174513 | $13.38 | ENDED | Shop at ECS Tuning | |||
| 03 | Front right sill strip | PASTELLGRUEN | 1 | 51478174514 | $13.38 | ENDED | Shop at ECS Tuning | |||
| 04 | Sill strip rear left | GRAU | 1 | 51478174515 | $20.43 | Shop at ECS Tuning | ||||
| 04 | Sill strip rear right | GRAU | 1 | 51478174516 | $20.43 | Shop at ECS Tuning | ||||
| 04 | Sill strip rear left | SCHWARZ | 1 | 51478174517 | $20.43 | Shop at ECS Tuning | ||||
| 04 | Sill strip rear right | SCHWARZ | 1 | 51478174518 | $20.43 | Shop at ECS Tuning | ||||
| 04 | Sill strip rear left | MARINEBLAU | 1 | 51478174519 | $20.43 | Shop at ECS Tuning | ||||
| 04 | Sill strip rear right | MARINEBLAU | 1 | 51478174520 | $20.43 | Shop at ECS Tuning | ||||
| 04 | Sill strip rear left | DUNKELGRUEN | 1 | 51478174521 | $21.99 | ENDED | Shop at ECS Tuning | |||
| 04 | Sill strip rear right | DUNKELGRUEN | 1 | 51478174522 | $20.43 | ENDED | Shop at ECS Tuning | |||
| 04 | Sill strip rear left | SANDBEIGE | 1 | 51478174523 | $20.43 | Shop at ECS Tuning | ||||
| 04 | Sill strip rear right | SANDBEIGE | 1 | 51478174524 | $20.43 | Shop at ECS Tuning | ||||
| 04 | Sill strip rear left | LAVENDELGRAU | 1 | 51478174525 | $20.43 | Shop at ECS Tuning | ||||
| 04 | Sill strip rear right | LAVENDELGRAU | 1 | 51478174526 | $20.43 | Shop at ECS Tuning | ||||
| 04 | Sill strip rear left | PASTELLGRUEN | 1 | 51478174527 | $21.99 | ENDED | Shop at ECS Tuning | |||
| 04 | Sill strip rear right | PASTELLGRUEN | 1 | 51478174528 | $21.99 | ENDED | Shop at ECS Tuning | |||
| 05 | Front left entrance cover | SCHWARZ | 1 | 03/1997 | 51478125935 | $41.83 | +core | Shop at ECS Tuning | ||
| 05 | Front right entrance cover | SCHWARZ | 1 | 03/1997 | 51478125936 | $41.83 | +core | Shop at ECS Tuning | ||
| 06 | Rear left entrance cover | SCHWARZ | 1 | 03/1997 | 51478125937 | $40.51 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Rear right entrance cover | SCHWARZ | 1 | 03/1997 | 51478125938 | $40.51 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Sill strip clip | X | 51478234047 | $0.44 | Shop at ECS Tuning | |||||
| 08 | Clip Natur | L=13,2MM | X | 51471840960 | $0.24 | Shop at ECS Tuning | ||||
| 09 | Plastic nut for coarse threaded pin | M6 | 4 | 16131176747 | $0.53 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
