Headlining / Handle for BMW 7 Series E38 740i (1995)

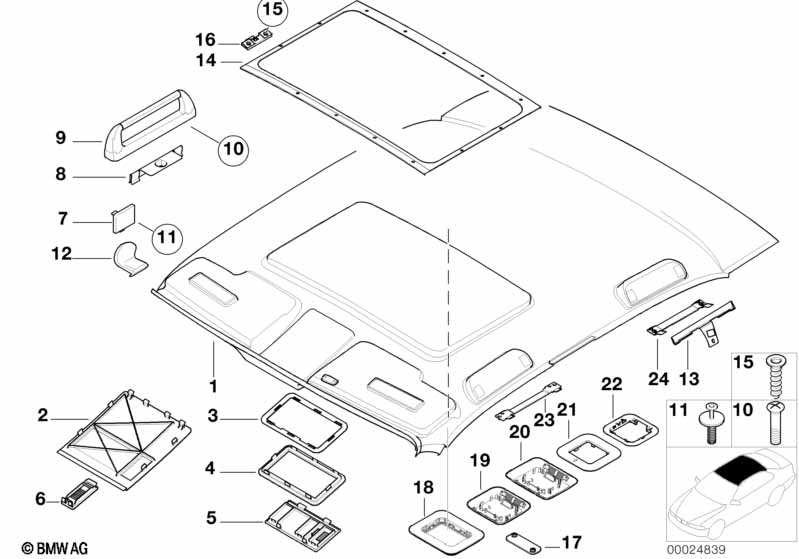

This Headlining / Handle technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Molded roof lining | ANTHRAZIT | 1 | 09/1997 | 51442268973 | $848.92 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Molded headlining f sliding lifting roof | ANTHRAZIT | 1 | 09/1997 | 51442268976 | $848.92 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Molded roof lining | HELLGRAU | 1 | 09/1997 | 51448174699 | $967.36 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Molded roof lining | SANDBEIGE | 1 | 09/1997 | 51448174700 | $848.92 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Molded headlining f sliding lifting roof | HELLGRAU | 1 | 09/1997 | 51448174706 | $967.36 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Molded headlining f sliding lifting roof | SANDBEIGE | 1 | 09/1997 | 51448174707 | $820.41 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Cover sliding roof motor | ANTHRAZIT | 1 | 51442268978 | $28.75 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover sliding roof motor | HELLGRAU | 1 | 51448174710 | $23.62 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Cover sliding roof motor | SANDBEIGE | 1 | 51448174711 | $23.62 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Hands-free telephone only applies to garage door opener |
=Yes |
|||||||||
| 02 | Cover sliding roof motor | ANTHRAZIT | 1 | 51442269455 | $28.75 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover sliding roof motor | HELLGRAU | 1 | 03/1995 | 01/2001 | 51448205883 | $23.62 | ENDED | Shop at ECS Tuning | |
| 02 | Cover sliding roof motor | SANDBEIGE | 1 | 03/1995 | 01/2001 | 51448205884 | $23.62 | ENDED | Shop at ECS Tuning | |
| 03 | Frame f hands free telephone | 1 | 51448171515 | $1.65 | Shop at ECS Tuning | |||||
| 04 | Frame f hands free telephone | ANTHRAZIT | 1 | 51442268975 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Frame f hands free telephone | HELLGRAU | 1 | 51448174704 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Frame f hands free telephone | SANDBEIGE | 1 | 51448174705 | $3.21 | ENDED | Shop at ECS Tuning | |||
| 05 | Cover, microphone | ANTHRAZIT | 1 | 05/1998 | 51442269459 | $4.29 | Shop at ECS Tuning | |||
| 05 | Cover, microphone | HELLGRAU | 1 | 05/1998 | 51448174708 | $4.29 | ENDED | Shop at ECS Tuning | ||
| 05 | Cover, microphone | SANDBEIGE | 1 | 05/1998 | 51448174709 | $4.29 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Hands-free telephone and Lift-up-and-slide-back sunroof |
=Yes =Yes |
|||||||||
| 06 | Cover, microphone | SCHWARZ | 1 | 01/1995 | 05/1998 | 51448160840 | $4.29 | Shop at ECS Tuning | ||
| 07 | Handle cap | SCHWARZ | 8 | 51162268890 | $0.55 | Shop at ECS Tuning | ||||
| 07 | Handle cap | HELLGRAU | 8 | 51168178968 | $0.55 | Shop at ECS Tuning | ||||
| 07 | Handle cap | SANDBEIGE | 8 | 51168178989 | $0.50 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Lift-up-and-slide-back sunroof |
=Yes |
|||||||||
| 07 | Handle cap | SCHWARZ | 8 | 51162268895 | $0.55 | ENDED | Shop at ECS Tuning | |||
| 07 | Handle cap | HELLGRAU | 8 | 51168178991 | $0.55 | Shop at ECS Tuning | ||||
| 07 | Handle cap | SANDBEIGE | 8 | 51168178992 | $0.55 | ENDED | Shop at ECS Tuning | |||
| 08 | Bracket for sliding lifting roof frame | X | 51448169740 | $0.55 | Shop at ECS Tuning | |||||
| 09 | Handle | SCHWARZ | 4 | 51162268893 | $39.15 | ENDED | Shop at ECS Tuning | |||
| 09 | Handle | HELLGRAU | 4 | 51168174717 | $38.23 | Shop at ECS Tuning | ||||
| 09 | Handle | SANDBEIGE | 4 | 51168174718 | $38.23 | Shop at ECS Tuning | ||||
| LEATHER VERSION MONTANA | ||||||||||
| 09 | Handle | SCHWARZ | 4 | 51162268896 | $65.48 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Handle | HELLGRAU | 4 | 51168178993 | $56.95 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Handle | SANDBEIGE | 4 | 51168178994 | $56.95 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Lift-up-and-slide-back sunroof |
=Yes |
|||||||||
| 09 | Handle | SCHWARZ | 4 | 51162268894 | $39.15 | ENDED | Shop at ECS Tuning | |||
| 09 | Handle | HELLGRAU | 4 | 51168174719 | $37.87 | Shop at ECS Tuning | ||||
| 09 | Handle | SANDBEIGE | 4 | 51168174720 | $38.23 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Lift-up-and-slide-back sunroof MODEL WITH CHROME/WOOD |
=Yes |
|||||||||
| 09 | Handle | SCHWARZ | 4 | 51162265542 | $108.52 | ENDED | Shop at ECS Tuning | |||
| 09 | Handle | HELLGRAU | 4 | 51168162566 | $108.52 | ENDED | Shop at ECS Tuning | |||
| 09 | Handle | SANDBEIGE | 4 | 51168162567 | $108.52 | +core | Shop at ECS Tuning | |||
| For vehicles with Lift-up-and-slide-back sunroof LEATHER VERSION MONTANA |
=Yes |
|||||||||
| 09 | Handle | SCHWARZ | 4 | 51162268897 | $63.33 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Handle | HELLGRAU | 4 | 51168178995 | $56.95 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Handle | SANDBEIGE | 4 | 51168178996 | $56.95 | ENDED, +core | Shop at ECS Tuning | |||
| 10 | Fillister head self-tapping screw | ST4,8X19 | 8 | 07119907790 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Expanding rivet | D = 6MM | 2 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 12 | Handle hook | SCHWARZ | 2 | 51162236798 | $0.86 | Shop at ECS Tuning | ||||
| 12 | Handle hook | HELLGRAU | 2 | 51168175015 | $0.79 | Shop at ECS Tuning | ||||
| 12 | Handle hook | SANDBEIGE | 2 | 51168175016 | $0.79 | Shop at ECS Tuning | ||||
| 13 | Left head lining bracket | 1 | 51448162719 | $3.87 | Shop at ECS Tuning | |||||
| 13 | Right head lining bracket | 1 | 51448162720 | $3.87 | Shop at ECS Tuning | |||||
| 14 | Frame sliding-lifting roof | 1 | 54128167248 | $35.73 | Shop at ECS Tuning | |||||
| 15 | Torx-countersunk head screw | ISA L=9.5MM | X | 54128169957 | $0.29 | Shop at ECS Tuning | ||||
| 16 | Clamp | 2 | 54138120576 | $1.84 | Shop at ECS Tuning | |||||
| 17 | Radio burglar alarm bracket | 1 | 65758363096 | $1.12 | Shop at ECS Tuning | |||||
| 18 | Radio burglar alarm cover | SCHWARZ | 1 | 09/1998 | 51442269456 | $26.51 | Shop at ECS Tuning | |||
| 18 | Radio burglar alarm cover | GRAU | 1 | 09/1998 | 51448206622 | $25.03 | Shop at ECS Tuning | |||
| 18 | Radio burglar alarm cover | SANDBEIGE | 1 | 09/1998 | 51448206623 | $25.03 | Shop at ECS Tuning | |||
| 20 | Cover f ultrasonic burglar alarm | SCHWARZ | 1 | 09/1998 | 51448249977 | $55.40 | Shop at ECS Tuning | |||
| 20 | Cover f ultrasonic burglar alarm | HELLGRAU | 1 | 09/1998 | 51448254917 | $25.03 | Shop at ECS Tuning | |||
| 20 | Cover f ultrasonic burglar alarm | HELLBEIGE | 1 | 09/1998 | 51448254918 | $25.03 | Shop at ECS Tuning | |||
| 21 | Bracket f ultrasonic module top | 1 | 51448249978 | $5.42 | ENDED | Shop at ECS Tuning | ||||
| 22 | Bracket f ultrasonic module bottom | 1 | 51448243665 | $5.33 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
