Floor covering for BMW 3 Series E36 318tds (2000)

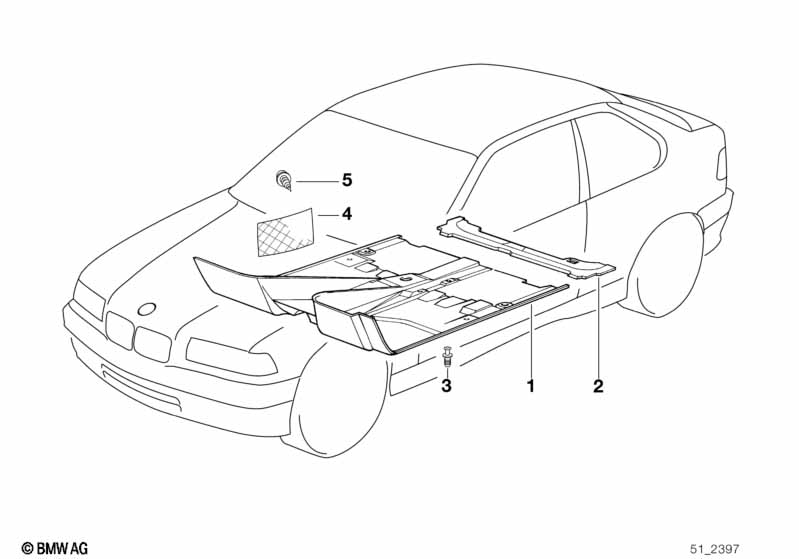

This Floor covering technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor trim cover, front | ANTHRAZIT | 1 | 51478146817 | $509.68 | Shop at ECS Tuning | ||||
| 02 | Floor covering rear | ANTHRAZIT | 1 | 51478146821 | $100.43 | ENDED | Shop at ECS Tuning | |||
| 03 | Expanding rivet | D = 8MM | 2 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Storage net, footwell, front | 1 | 51472265515 | $28.13 | Shop at ECS Tuning | |||||
| 05 | Fastening elements | 4 | 51472263062 | $0.50 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 318tds Floor covering?
- This technical diagram illustrates the Floor covering within the Vehicle trim group for the 3 Series E36 318tds produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Floor trim cover, front (Part #51478146817).
- Which models use the hardware listed in this Floor covering?
- The hardware and components featured in the Floor covering are specific to the 3 Series E36 318tds produced during 2000. These technical specifications ensure that parts like the Floor trim cover, front (51478146817) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Floor covering assembly?
- Each item in the Floor covering corresponds to the numbered list below the illustration. For the 3 Series E36 318tds, you can identify the Floor trim cover, front by locating its position on the schematic, which then links to the official BMW part number 51478146817 for the Vehicle trim section.
