Roller sun vizor, rear door for BMW 7 Series E38 740i (1995)

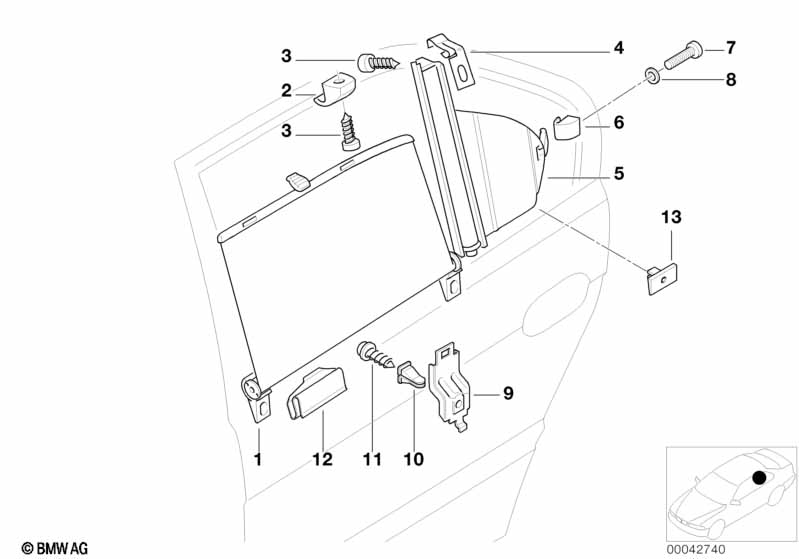

This Roller sun vizor, rear door technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left rear door sun blind | DUNKELGRAU | 1 | 51168150955 | $213.97 | ENDED | Shop at ECS Tuning | |||
| 01 | Right rear door sun blind | DUNKELGRAU | 1 | 51168150956 | $213.97 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Side window sun blind hook | SCHWARZ | 4 | 51168162753 | $1.68 | ENDED | Shop at ECS Tuning | |||
| 03 | Fillister head self-tapping screw | ST3,5X13 | 4 | 07119906720 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Sun blind support | 2 | 51168169707 | $0.62 | Shop at ECS Tuning | |||||
| 05 | Left rear door sun blind | DUNKELGRAU | 1 | 03/1997 | 51168150953 | $213.97 | Shop at ECS Tuning | |||
| 05 | Right rear door sun blind | DUNKELGRAU | 1 | 03/1997 | 51168150954 | $213.97 | Shop at ECS Tuning | |||
| 06 | Fixed sun blind hook | SCHWARZ | 2 | 03/1997 | 51168162752 | $2.30 | Shop at ECS Tuning | |||
| 07 | Fillister head screw | 2 | 07146977946 | $0.83 | Shop at ECS Tuning | |||||
| 08 | Washer | 3,7 | 2 | 07119936410 | $0.40 | Shop at ECS Tuning | ||||
| 09 | Bracket center | 4 | 51168169699 | $1.73 | Shop at ECS Tuning | |||||
| 10 | Prestol-cage | ST4,8 | 6 | 07129925765 | $0.18 | ENDED | Shop at ECS Tuning | |||
| 11 | Fillister head self-tapping screw | ST4,8X16-Z1 | 4 | 07119907925 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Sun blind clip | X | 51228165256 | $0.85 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
