Floor covering for BMW 7 Series E38 750iLS (2001)

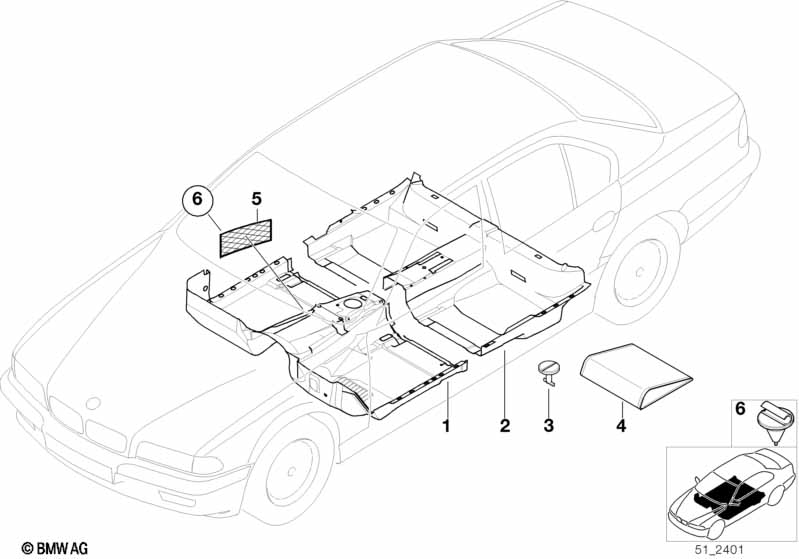

This Floor covering technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor trim cover, front | GRAU | 1 | 51475036067 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Floor trim cover, front | ANTHRAZIT | 1 | 51475036068 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Floor trim cover, front | MARINEBLAU | 1 | 51475036069 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Floor trim cover, front | SANDBEIGE | 1 | 51475036070 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Floor trim cover, front | LAVENDELGRAU | 1 | 51475036071 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Floor trim cover, front | DUNKELGRUEN | 1 | 51475036072 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Floor trim cover, front | PASTELLGRUEN | 1 | 51475036083 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Floor trim cover, front | TOBACCOBRAUN | 1 | 51475381175 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Floor covering rear | ANTHRAZIT | 1 | 07/1995 | 51475380692 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Floor covering rear | GRAU | 1 | 07/1995 | 51475380691 | ENDED | Shop at ECS Tuning | |||
| 02 | Floor covering rear | MARINEBLAU | 1 | 07/1995 | 51475380693 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Floor covering rear | SANDBEIGE | 1 | 07/1995 | 51475380694 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Floor covering rear | DUNKELGRUEN | 1 | 07/1995 | 51475380696 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Floor covering rear | TOBACCOBRAUN | 1 | 07/1995 | 51475381177 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Floor covering rear | TOBACCOBRAUN | 1 | 09/1998 | 51475381177 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Rotary latch 18 mm | ANTHRAZIT | 8 | 51478127272 | $1.03 | Shop at ECS Tuning | ||||
| 03 | Rotary latch 18 mm | GRAU | 8 | 51478177603 | $1.10 | Shop at ECS Tuning | ||||
| 03 | Rotary latch 18 mm | MARINEBLAU | 8 | 51478177604 | $0.88 | Shop at ECS Tuning | ||||
| 03 | Rotary latch 18 mm | SANDBEIGE | 8 | 51478177605 | $1.10 | Shop at ECS Tuning | ||||
| 03 | Rotary latch 18 mm | LAVENDELGRAU | 8 | 51478177606 | $1.05 | ENDED | Shop at ECS Tuning | |||
| 03 | Rotary latch 18 mm | PASTELLGRÜN | 8 | 51478177607 | $0.88 | ENDED | Shop at ECS Tuning | |||
| 03 | Rotary latch 18 mm | ENGLISCHGRÜN | 8 | 51478177608 | $0.88 | Shop at ECS Tuning | ||||
| 03 | Rotary latch 18 mm | TOBACCOBRAUN | 8 | 51478255873 | $0.88 | ENDED | Shop at ECS Tuning | |||
| 04 | Foot rest | PASTELLGRUEN | 2 | 51478202956 | $86.21 | ENDED | Shop at ECS Tuning | |||
| 04 | Foot rest | GRAU | 2 | 51478235407 | $89.97 | ENDED | Shop at ECS Tuning | |||
| 04 | Foot rest | ANTHRAZIT | 2 | 51478235408 | $89.97 | ENDED | Shop at ECS Tuning | |||
| 04 | Foot rest | MARINEBLAU | 2 | 51478235409 | $89.97 | ENDED | Shop at ECS Tuning | |||
| 04 | Foot rest | SANDBEIGE | 2 | 51478235410 | $89.97 | ENDED | Shop at ECS Tuning | |||
| 04 | Foot rest | LAVENDELGRAU | 2 | 51478235411 | $89.97 | ENDED | Shop at ECS Tuning | |||
| 04 | Foot rest | TOBACCOBRAUN | 2 | 51478255879 | $89.97 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 750iLS Floor covering?
- This technical diagram illustrates the Floor covering within the Vehicle trim group for the 7 Series E38 750iLS produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Floor trim cover, front (Part #51475036067).
- Which models use the hardware listed in this Floor covering?
- The hardware and components featured in the Floor covering are specific to the 7 Series E38 750iLS produced during 2001. These technical specifications ensure that parts like the Floor trim cover, front (51475036067) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Floor covering assembly?
- Each item in the Floor covering corresponds to the numbered list below the illustration. For the 7 Series E38 750iLS, you can identify the Floor trim cover, front by locating its position on the schematic, which then links to the official BMW part number 51475036067 for the Vehicle trim section.
