Sun blind, rear window shelf for BMW 7 Series E38 740iLP (2001)

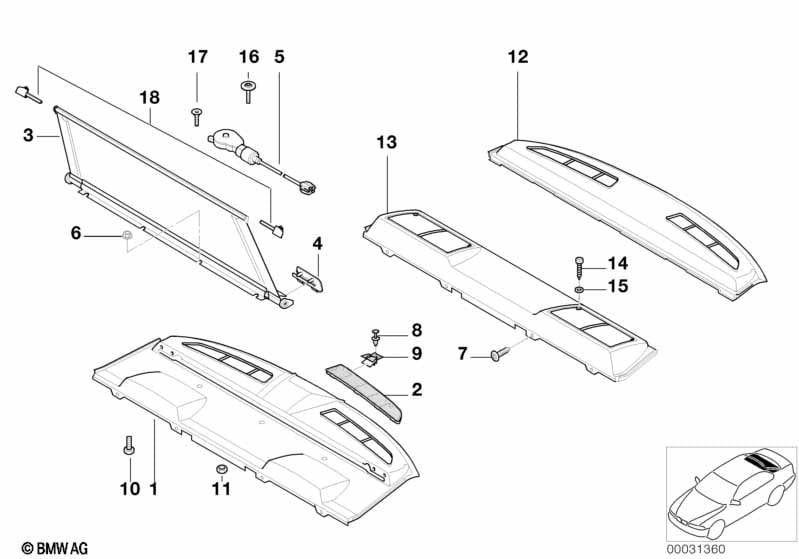

This Sun blind, rear window shelf technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740iLP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sun-blind, rear or Roller sun vizor, rear lateral |
S415A=Yes S416A=Yes |
|||||||||
| 01 | Storage tray, retracting sun blind | SANDBEIGE | 1 | 04/1999 | 51468242568 | $469.84 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Storage tray, retracting sun blind | ANTHRAZIT | 1 | 04/1999 | 51468249689 | $469.84 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Storage tray, retracting sun blind | MARINEBLAU | 1 | 04/1999 | 51468263568 | $469.84 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Storage tray, retracting sun blind | GRAU | 1 | 04/1999 | 51468263573 | $469.84 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Storage tray, retracting sun blind | LAVENDELGRAU | 1 | 04/1999 | 51468263574 | $469.84 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Storage tray, retracting sun blind | ENGLISCHGRÜN | 1 | 04/1999 | 51468263575 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Left package shelf vent louver | GRAU | 1 | 51468174167 | $11.00 | Shop at ECS Tuning | ||||
| 02 | Right package shelf ventilation grille | GRAU | 1 | 51468174168 | $11.00 | Shop at ECS Tuning | ||||
| 02 | Left package shelf vent louver | ANTHRAZIT | 1 | 51468174169 | $11.00 | Shop at ECS Tuning | ||||
| 02 | Right package shelf ventilation grille | ANTHRAZIT | 1 | 51468174170 | $11.00 | ENDED | Shop at ECS Tuning | |||
| 02 | Left package shelf vent louver | MARINEBLAU | 1 | 51468174171 | $10.94 | ENDED | Shop at ECS Tuning | |||
| 02 | Right package shelf ventilation grille | MARINEBLAU | 1 | 51468174172 | $11.00 | ENDED | Shop at ECS Tuning | |||
| 02 | Left package shelf vent louver | SANDEBEIGE | 1 | 51468174173 | $11.00 | Shop at ECS Tuning | ||||
| 02 | Right package shelf ventilation grille | SANDBEIGE | 1 | 51468174174 | $11.00 | Shop at ECS Tuning | ||||
| 02 | Left package shelf vent louver | LAVENDELGRAU | 1 | 51468174175 | $11.00 | ENDED | Shop at ECS Tuning | |||
| 02 | Right package shelf ventilation grille | LAVENDELGRAU | 1 | 51468174176 | $10.94 | ENDED | Shop at ECS Tuning | |||
| 02 | Left package shelf vent louver | DUNKELGRUEN | 1 | 51468174177 | $10.94 | ENDED | Shop at ECS Tuning | |||
| 02 | Right package shelf ventilation grille | DUNKELGRUEN | 1 | 51468174178 | $10.94 | ENDED | Shop at ECS Tuning | |||
| 02 | Left package shelf vent louver | PASTELLGRUEN | 1 | 51468174179 | $10.94 | ENDED | Shop at ECS Tuning | |||
| 02 | Right package shelf ventilation grille | PASTELLGRUEN | 1 | 51468174180 | $10.94 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sun-blind, rear or Roller sun vizor, rear lateral |
S415A=Yes S416A=Yes |
|||||||||
| 04 | Left sun blind cover | SCHWARZ | 1 | 04/1999 | 51168131777 | $3.27 | Shop at ECS Tuning | |||
| 04 | Right sun blind cover | SCHWARZ | 1 | 04/1999 | 51168131778 | $3.27 | Shop at ECS Tuning | |||
| 06 | Hex nut with plate | M6 ZNT | 6 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Expanding rivet | D = 6MM | 4 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 08 | Expanding rivet | 4 | 51481938725 | $0.37 | Shop at ECS Tuning | |||||
| 09 | Support for package shelf | 4 | 51468161556 | $1.11 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M6X12-U2-8.8 | 2 | 07119904459 | $0.65 | Shop at ECS Tuning | ||||
| 14 | Fillister head screw | 4 | 07149150919 | $0.36 | Shop at ECS Tuning | |||||
| 15 | Washer | 3,7 | 1 | 07119936410 | $0.40 | Shop at ECS Tuning | ||||
| 16 | Saucer-head screw | 3 | 51168172398 | $0.22 | Shop at ECS Tuning | |||||
| 17 | Countersunk head screw | M4X10 | 1 | 07/2008 | 07119900722 | $3.16 | ENDED | Shop at ECS Tuning | ||
| 17 | Countersunk head screw | M4X10 | 1 | 07119904433 | Shop at ECS Tuning | |||||
| 18 | Set of end caps | 1 | 51168215240 | $15.27 | Shop at ECS Tuning | |||||
