Trunk trim panel for BMW 7 Series E38 728iL (1998)

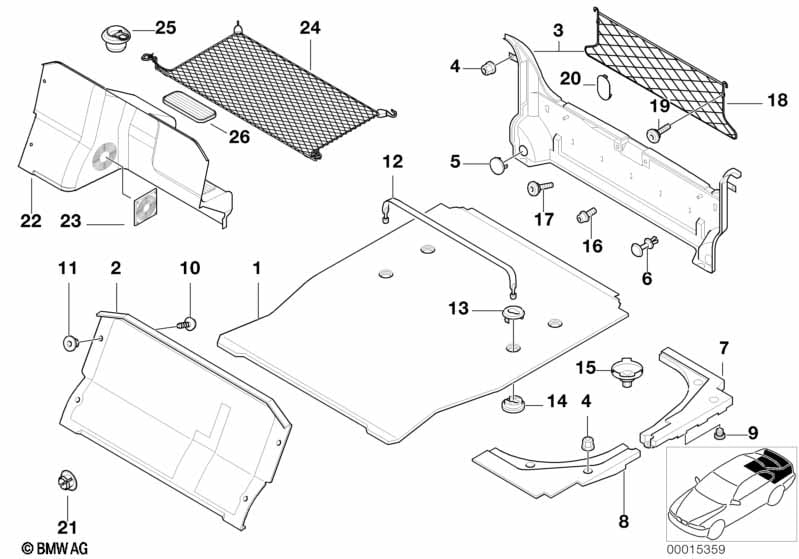

This Trunk trim panel technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk mat with tension straps | GRAPHIT | 1 | 51478208359 | $148.71 | Shop at ECS Tuning | ||||
| 02 | Trunk partition trim panel | GRAPHIT | 1 | 51478125930 | $76.86 | Shop at ECS Tuning | ||||
| For vehicles with Ski bag |
=Yes |
|||||||||
| 02 | Panel partition trunk left | GRAPHIT | 1 | 51478177615 | $45.05 | ENDED | Shop at ECS Tuning | |||
| 02 | Panel partition trunk right | GRAPHIT | 1 | 51478177616 | $45.05 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 02 | Trunk partition trim panel | GRAPHIT | 1 | 51478231621 | ENDED | Shop at ECS Tuning | ||||
| 03 | Tail trim panel | SCHWARZ | 1 | 51478157849 | $89.19 | Shop at ECS Tuning | ||||
| 04 | Plastic nut for coarse threaded pin | M6 | X | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 05 | Blind plug f trunk trim | SCHWARZ | 2 | 51478165200 | $0.79 | Shop at ECS Tuning | ||||
| 06 | Expanding rivet | SCHWARZ | 3 | 51498166702 | $0.37 | Shop at ECS Tuning | ||||
| 07 | Rear trunk mat base | SCHWARZ | 1 | 51478165265 | $47.94 | Shop at ECS Tuning | ||||
| 08 | Front trunk mat base | SCHWARZ | 1 | 51478165264 | $47.94 | Shop at ECS Tuning | ||||
| 09 | Rubber buffer | X | 51478144588 | $1.27 | Shop at ECS Tuning | |||||
| 10 | Push-button | SCHWARZ | 4 | 51478189958 | $0.42 | Shop at ECS Tuning | ||||
| 11 | Spacer bush | SCHWARZ | 4 | 51478189959 | $0.69 | Shop at ECS Tuning | ||||
| 12 | Band clamp, black | L=590 MM | 4 | 51478136450 | $6.73 | Shop at ECS Tuning | ||||
| 13 | Mount, retaining strap upper section | SCHIEFER | 4 | 51478136258 | $0.73 | Shop at ECS Tuning | ||||
| 14 | Mount, retaining strap lower section | SCHIEFER | 4 | 51478136257 | $0.73 | Shop at ECS Tuning | ||||
| 15 | Hub cap wrench | 1 | 36131181948 | $4.20 | Shop at ECS Tuning | |||||
| 16 | Torx bolt | ISA M6X22 | 1 | 51478192970 | $1.03 | Shop at ECS Tuning | ||||
| 17 | Torx-bolt with washer | M6X12 | 1 | 07146985055 | $0.38 | Shop at ECS Tuning | ||||
| 18 | Trunk room net | 1 | 51478201483 | $30.79 | ENDED | Shop at ECS Tuning | ||||
| 19 | Screw for thermoplastic plastics | M4X16 | 2 | 07129900669 | $0.65 | Shop at ECS Tuning | ||||
| 20 | Rear trunk trim panel cover | SCHWARZ | 2 | 51478172289 | $2.07 | Shop at ECS Tuning | ||||
| 21 | Battery wiring cap | 1 | 51478206645 | $0.80 | Shop at ECS Tuning | |||||
| 24 | Trunk room net | 1 | 51478229781 | $91.79 | +core | Shop at ECS Tuning | ||||
| 25 | Mounting ring | H=14 MM | 2 | 51478181365 | $1.73 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 728iL Trunk trim panel?
- This technical diagram illustrates the Trunk trim panel within the Vehicle trim group for the 7 Series E38 728iL produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Trunk mat with tension straps (Part #51478208359).
- Which models use the hardware listed in this Trunk trim panel?
- The hardware and components featured in the Trunk trim panel are specific to the 7 Series E38 728iL produced during 1998. These technical specifications ensure that parts like the Trunk mat with tension straps (51478208359) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trunk trim panel assembly?
- Each item in the Trunk trim panel corresponds to the numbered list below the illustration. For the 7 Series E38 728iL, you can identify the Trunk mat with tension straps by locating its position on the schematic, which then links to the official BMW part number 51478208359 for the Vehicle trim section.
