Sound insulating front for BMW 7 Series E38 730i (1996)

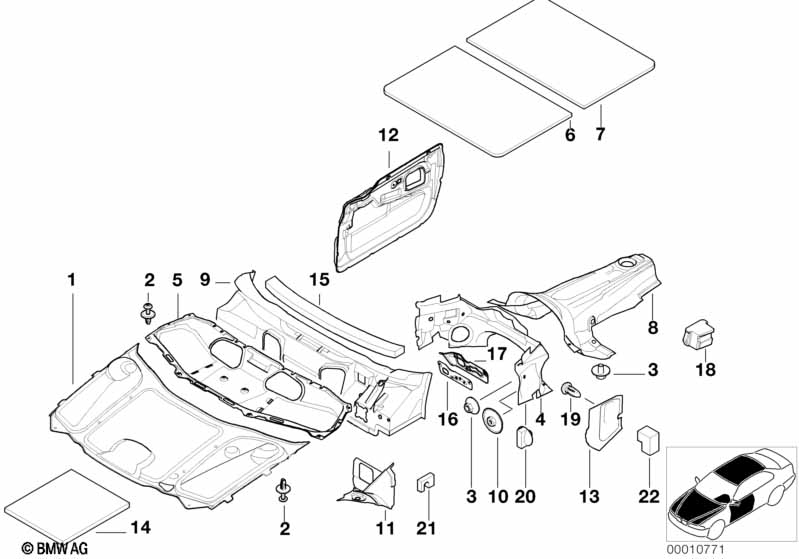

This Sound insulating front technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulating engine hood | 1 | 51488125951 | $159.90 | ENDED | Shop at ECS Tuning | ||||
| 02 | Expanding rivet | D=7,5MM | X | 51481915964 | $0.43 | Shop at ECS Tuning | ||||
| 03 | Push-button | D=30MM;H=13MM | 2 | 51481923999 | $0.42 | Shop at ECS Tuning | ||||
| 04 | Sound insulating dash panel engine room | 1 | 09/1998 | 51488157842 | $104.63 | ENDED | Shop at ECS Tuning | |||
| 05 | Microfilter sound insulation housing | 1 | 51488160432 | $152.88 | Shop at ECS Tuning | |||||
| 06 | Front roof reinforcement | 1 | 51488150297 | $46.62 | Shop at ECS Tuning | |||||
| 07 | Rear roof reinforcement | 1 | 51488163853 | $46.62 | Shop at ECS Tuning | |||||
| For vehicles with Lift-up-and-slide-back sunroof |
=Yes |
|||||||||
| 07 | Rear roof reinforcement | 1 | 51488163854 | $35.13 | ENDED | Shop at ECS Tuning | ||||
| 08 | Sound insulating tunnel front | 1 | 09/1998 | 51488157843 | $142.85 | ENDED | Shop at ECS Tuning | |||
| 08 | Sound insulating tunnel front | 1 | 51488257282 | $224.23 | ENDED | Shop at ECS Tuning | ||||
| 09 | Upper sound insulating dash panel | 1 | 09/1997 | 51488125949 | $110.48 | ENDED | Shop at ECS Tuning | |||
| 10 | Body nut | D=30MM, ZNS3 | 2 | 07146949380 | $0.44 | Shop at ECS Tuning | ||||
| 11 | Sound insulat.dash panel engine room L. | 1 | 09/1997 | 51488160437 | $224.23 | ENDED | Shop at ECS Tuning | |||
| 11 | Sound insulat.dash panel engine room R. | 1 | 51488160438 | $224.23 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Side airbag |
=Yes |
|||||||||
| 12 | Sound insulating door front left | 1 | 03/1996 | 51488215695 | $48.20 | Shop at ECS Tuning | ||||
| 12 | Sound insulating door front right | 1 | 03/1996 | 51488215696 | $48.20 | Shop at ECS Tuning | ||||
| 13 | Sound insulating left | 1 | 51488177659 | $15.18 | ENDED | Shop at ECS Tuning | ||||
| 14 | Sound deadener | 1160X700MM | 1 | 51488165271 | $50.35 | Shop at ECS Tuning | ||||
| 15 | Sound insulation windshield | L=1410X15MM | 1 | 51489493821 | Shop at ECS Tuning | |||||
| 16 | Heater and air conditioning pipe sealing | 1 | 51488177681 | $5.71 | Shop at ECS Tuning | |||||
| 17 | Heater and air condit.sound insulation | 1 | 51488166684 | $11.90 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
