Sound insulating rear for BMW 7 Series E38 735i (1998)

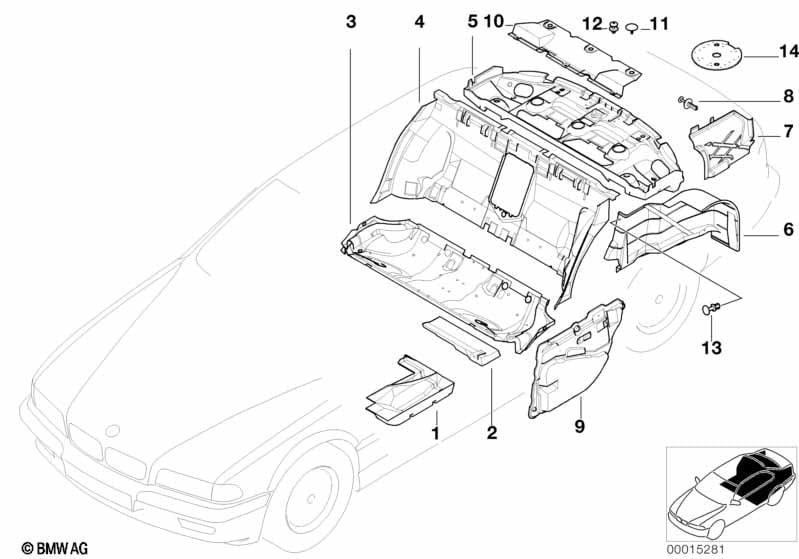

This Sound insulating rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left front floor panel sound insulation | 1 | 51488157205 | $15.61 | ENDED | Shop at ECS Tuning | ||||
| 01 | Right front floor panel sound insulation | 1 | 51488157206 | $15.61 | ENDED | Shop at ECS Tuning | ||||
| 02 | Right center panel floor sound insulat. | 1 | 09/1998 | 51488164756 | $7.28 | ENDED | Shop at ECS Tuning | |||
| 02 | Left center panel floor sound insulation | 1 | 51488164755 | $7.28 | Shop at ECS Tuning | |||||
| 03 | Sound insulation floor rear | 1 | 51488125955 | $224.23 | Shop at ECS Tuning | |||||
| 04 | Sound insulating front trunk panel | 1 | 51488125954 | $224.23 | ENDED | Shop at ECS Tuning | ||||
| 05 | Sound insulation for upper partit.trunk | 1 | 51488125952 | $224.23 | ENDED | Shop at ECS Tuning | ||||
| 06 | Sound insulating wheel housing rear left | 1 | 51488162727 | $110.48 | Shop at ECS Tuning | |||||
| 06 | Sound insulating wheel housing rear rig. | 1 | 51488162728 | $110.48 | ENDED | Shop at ECS Tuning | ||||
| 07 | Sound insulation trunk left | 1 | 51488165189 | $24.08 | Shop at ECS Tuning | |||||
| 07 | Sound insulation trunk right | 1 | 51488165190 | $24.08 | Shop at ECS Tuning | |||||
| 08 | Expanding rivet | D = 8MM | 4 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 09 | Sound insulating door rear left | 1 | 06/1997 | 51488158011 | $45.87 | Shop at ECS Tuning | ||||
| 09 | Sound insulating door rear right | 1 | 06/1997 | 51488158012 | $45.87 | Shop at ECS Tuning | ||||
| 10 | Sound insulation f ventilation channel | 1 | 51488165217 | $224.23 | ENDED | Shop at ECS Tuning | ||||
| 11 | Plug | D=6,50MM | 3 | 51488196480 | $0.67 | Shop at ECS Tuning | ||||
| 12 | Expanding rivet | 3 | 51481938725 | $0.37 | Shop at ECS Tuning | |||||
| 14 | anti-drone liner, spare-wheel recess | 1 | 51488160470 | $4.50 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
