Heat insulation for BMW 7 Series E38 735i (2001)

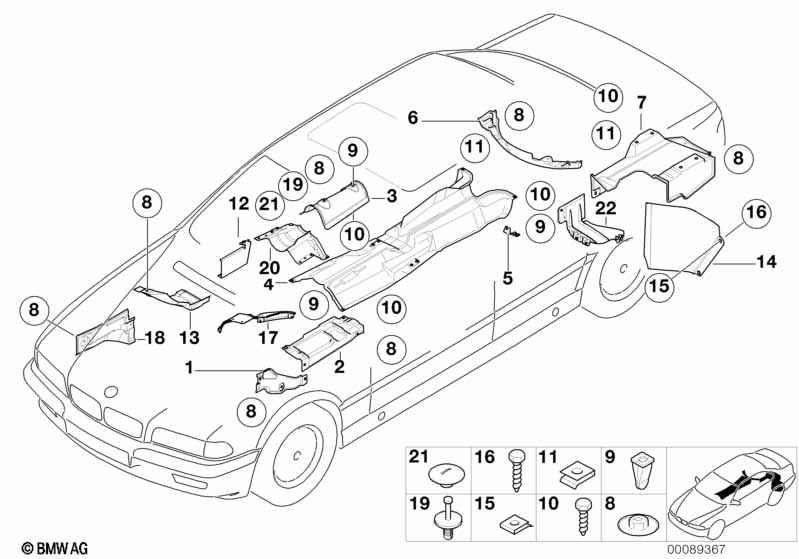

This Heat insulation technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left engine support heat insulation | 1 | 51488160485 | $16.78 | Shop at ECS Tuning | |||||
| 01 | Heat shield, engine mount, right | 1 | 51488160486 | $16.78 | Shop at ECS Tuning | |||||
| 02 | Heat insulation, left | 1 | 12/1994 | 51488206357 | $45.23 | Shop at ECS Tuning | ||||
| 02 | Heat insulation right | 1 | 12/1994 | 51488206358 | $45.23 | Shop at ECS Tuning | ||||
| 03 | Heat insulation tunnel upper | 1 | 03/1996 | 51488159961 | $45.23 | Shop at ECS Tuning | ||||
| 04 | Heat insulation tunnel bottom | 1 | 51488125964 | $193.43 | ENDED | Shop at ECS Tuning | ||||
| 05 | Holder, heat protection sheet, left | 1 | 51488164789 | $2.42 | Shop at ECS Tuning | |||||
| 05 | Holder, heat protection sheet, right | 1 | 51488164790 | $2.42 | Shop at ECS Tuning | |||||
| 06 | Heat insulator spare wheel tray | 1 | 51488161554 | $28.03 | Shop at ECS Tuning | |||||
| 07 | Heat insulation, rear silencer, left | 1 | 51488125959 | $115.52 | Shop at ECS Tuning | |||||
| 07 | Heat insulation, rear silencer, right | 1 | 51488125960 | $115.52 | Shop at ECS Tuning | |||||
| 08 | Body nut | D=18MM, ZNS-3 | X | 07146949379 | $0.20 | Shop at ECS Tuning | ||||
| 08 | Body nut | D=30MM, ZNS3 | X | 07146949380 | $0.44 | Shop at ECS Tuning | ||||
| 09 | Expanding nut | ST 4.8 WEISS | X | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 10 | Hex head screw | ST4,8X16-ZNS3 | X | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Plug-in nut | M5 | 4 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 13 | Heat resistant plate, front wall left | 1 | 09/1998 | 51488234411 | $16.78 | Shop at ECS Tuning | ||||
| 13 | Heat resistant plate, front wall right | 1 | 09/1998 | 51488234412 | $16.78 | Shop at ECS Tuning | ||||
| 18 | Heat resist.plate right engine support | 1 | 09/1998 | 51488211947 | $12.12 | Shop at ECS Tuning | ||||
| 22 | Heat resist. plate, carbon canister left | 1 | 51718209581 | $8.58 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 735i Heat insulation?
- This technical diagram illustrates the Heat insulation within the Vehicle trim group for the 7 Series E38 735i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Left engine support heat insulation (Part #51488160485).
- Which models use the hardware listed in this Heat insulation?
- The hardware and components featured in the Heat insulation are specific to the 7 Series E38 735i produced during 2001. These technical specifications ensure that parts like the Left engine support heat insulation (51488160485) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heat insulation assembly?
- Each item in the Heat insulation corresponds to the numbered list below the illustration. For the 7 Series E38 735i, you can identify the Left engine support heat insulation by locating its position on the schematic, which then links to the official BMW part number 51488160485 for the Vehicle trim section.
