Sealing cap/plug for BMW 7 Series E38 740iL (1998)

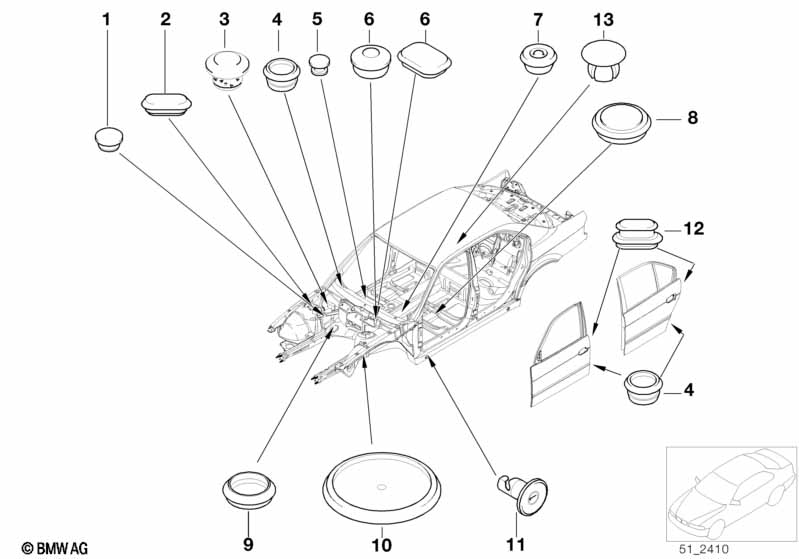

This Sealing cap/plug technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | D = hole-circle diameter in the body |
|||||||||
| 01 | Covering cap | D=16,5MM | 2 | 51711839321 | $0.26 | Shop at ECS Tuning | ||||
| 02 | Blind plug | D=13X30MM | 2 | 51711932936 | $0.34 | Shop at ECS Tuning | ||||
| 03 | Blind plug | D=20MM | 1 | 51711801066 | $0.23 | Shop at ECS Tuning | ||||
| 04 | Blind plug | D=12MM | X | 51718110199 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Blind plug | D=6MM | 1 | 51711904603 | $0.32 | Shop at ECS Tuning | ||||
| 06 | Blind plug | D=15MM | 1 | 51718170298 | $0.23 | Shop at ECS Tuning | ||||
| 07 | Blind plug | D=20MM | X | 07147140850 | $0.19 | Shop at ECS Tuning | ||||
| 08 | Blind plug | D=35MM | 1 | 07147140849 | $0.73 | Shop at ECS Tuning | ||||
| 09 | Blind plug | D=25MM | 1 | 51718126605 | $0.39 | Shop at ECS Tuning | ||||
| 11 | Lock | D=22MM | 4 | 51718172534 | $1.42 | Shop at ECS Tuning | ||||
| 12 | Blind plug | 24X12 | 4 | 51211975404 | $1.26 | Shop at ECS Tuning | ||||
