Sound insulating rear for BMW 3 Series E36 318ti (1996)

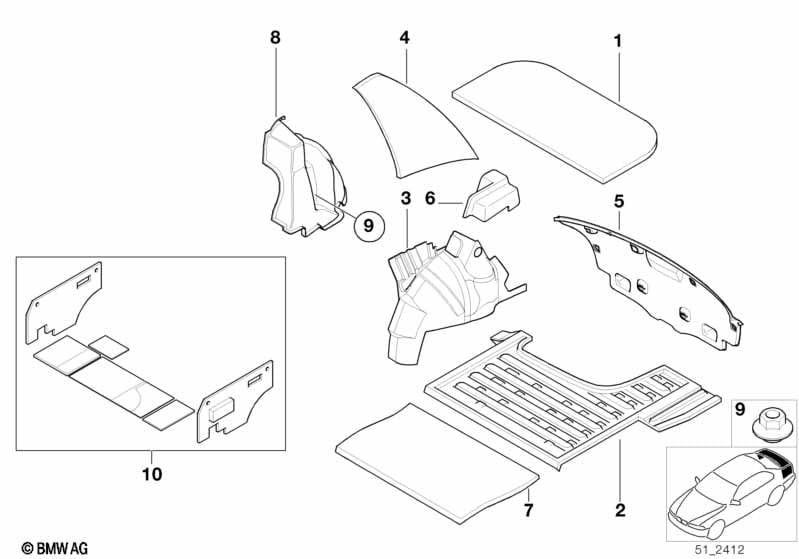

This Sound insulating rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulation roof | 1 | 51481977023 | $34.35 | Shop at ECS Tuning | |||||
| 02 | Insulating mat | 1 | 51478146558 | $43.81 | Shop at ECS Tuning | |||||
| 03 | Sound insulating wheel housing rear left | 1 | 51488146571 | $28.67 | Shop at ECS Tuning | |||||
| 03 | Sound insulating wheel housing rear rig. | 1 | 51488146572 | $28.67 | Shop at ECS Tuning | |||||
| 04 | Sound insulation | 2 | 51488146973 | $4.07 | Shop at ECS Tuning | |||||
| 05 | Sound insulating for trunk lid | 1 | 51488146025 | $34.14 | ENDED | Shop at ECS Tuning | ||||
| 06 | Filling insert left | 1 | 51478186443 | $7.33 | Shop at ECS Tuning | |||||
| 06 | Filling insert right | 1 | 51478186444 | $7.33 | Shop at ECS Tuning | |||||
| 07 | Sound insulation floor rear | 1 | 51488146510 | $44.02 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
