Carrier, rear for BMW 7 Series E38 735i (1998)

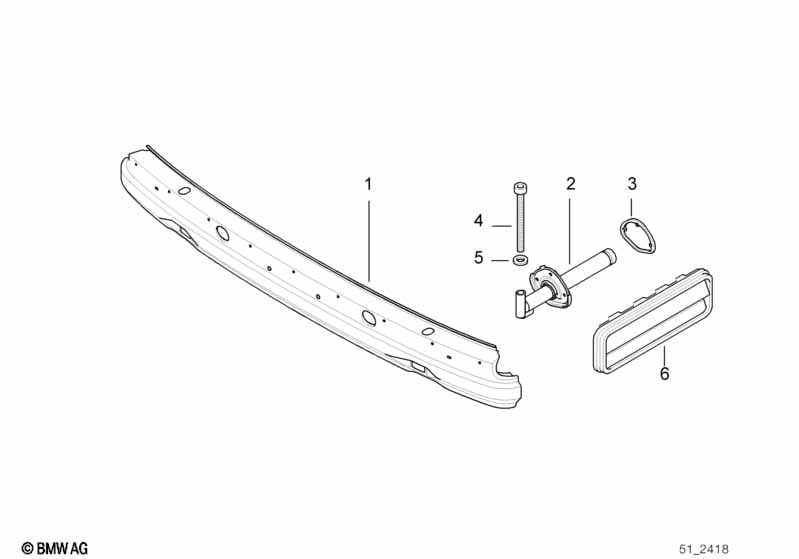

This Carrier, rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier | 1 | 51128125406 | $341.53 | +core | Shop at ECS Tuning | ||||
| 02 | Shock absorber, rear left | 1 | 51128125421 | $140.58 | ENDED | Shop at ECS Tuning | ||||
| 02 | Shock absorber, rear right | 1 | 51128125422 | $140.58 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Gasket | 2 | 51128157195 | $1.79 | Shop at ECS Tuning | |||||
| 04 | Fillister-head screw | M12X100 | 2 | 07119920070 | $1.39 | Shop at ECS Tuning | ||||
| 05 | Washer | A13/HV-ZNS | 2 | 07/2001 | 07119901766 | $0.30 | ENDED | Shop at ECS Tuning | ||
| 05 | Washer | 12-300 HV-ZNS3 | 2 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Breather | 2 | 64228368570 | $14.63 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
