Armrest front for BMW 3 Series E36 323ti (1998)

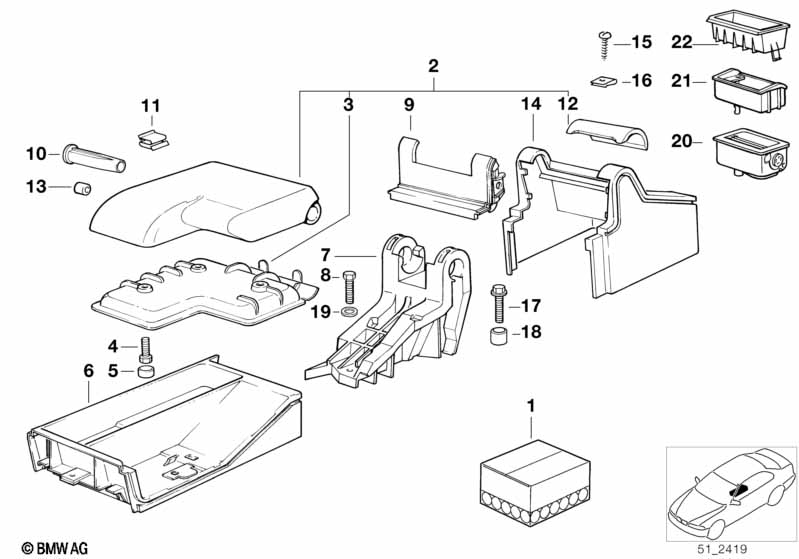

This Armrest front technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Armrest leather | M2MQ MAULBEERE | 1 | 09/1997 | 51162494663 | $291.28 | ENDED | Shop at ECS Tuning | ||
| 02 | Armrest leather | P9KU KOENIGSBL | 1 | 09/1997 | 51168240905 | $206.46 | ENDED | Shop at ECS Tuning | ||
| 02 | Armrest leather | P9ND MAISGELB | 1 | 09/1997 | 51168240907 | $206.46 | ENDED | Shop at ECS Tuning | ||
| ONLY APPLIES TO LUXURY EQUIPMENT ONLY APPLIES TO LEATHER WALK-NAPPA |
||||||||||
| 02 | Armrest leather | N5/L7SW SCHWARZ | 1 | 51162257334 | $249.09 | ENDED | Shop at ECS Tuning | |||
| 02 | Armrest leather | 0638/L7GD K.ROT | 1 | 51162260575 | $291.28 | ENDED | Shop at ECS Tuning | |||
| 02 | Armrest leather | L7HS HASELNUSS | 1 | 51162263816 | $291.28 | ENDED | Shop at ECS Tuning | |||
| 02 | Armrest leather | CHAMPAGNER | 1 | 51162266546 | $249.09 | ENDED | Shop at ECS Tuning | |||
| 02 | Armrest leather | N5/L7SW SCHWARZ | 1 | 06/1995 | 51162257334 | $249.09 | ENDED | Shop at ECS Tuning | ||
| 02 | Armrest leather | 0638/L7GD K.ROT | 1 | 06/1995 | 51162260575 | $291.28 | ENDED | Shop at ECS Tuning | ||
| 02 | Armrest leather | L7HS HASELNUSS | 1 | 06/1995 | 51162263816 | $291.28 | ENDED | Shop at ECS Tuning | ||
| 02 | Armrest leather | CHAMPAGNER | 1 | 06/1995 | 51162266546 | $249.09 | ENDED | Shop at ECS Tuning | ||
| 02 | Armrest leather | M2MABLAUVIOLETT | 1 | 06/1995 | 51162490352 | ENDED, +core | Shop at ECS Tuning | |||
| only applies to Leather Oregon |
||||||||||
| 02 | Armrest leather | SANDGRAU | 1 | 51168204651 | $122.95 | ENDED | Shop at ECS Tuning | |||
| 02 | Armrest leather | SCHWARZ | 1 | 51168265942 | $206.46 | Shop at ECS Tuning | ||||
| 02 | Armrest leather | Q4TD TANINROT | 1 | 51168265943 | $206.46 | ENDED | Shop at ECS Tuning | |||
| 02 | Armrest leather | Q4MB MONTREALBL | 1 | 51168265944 | $206.46 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth version or Cloth / Leather version |
=Yes =Yes |
|||||||||
| 02 | Armrest leather | SCHWARZ | 1 | 51168196311 | $118.95 | ENDED | Shop at ECS Tuning | |||
| 02 | Armrest vinyl | SCHWARZ | 1 | 51168204643 | $65.89 | Shop at ECS Tuning | ||||
| 02 | Armrest leather | SANDGRAU | 1 | 51168204651 | $122.95 | ENDED | Shop at ECS Tuning | |||
| 03 | Center armrest trim panel | 1 | 51168132493 | $9.03 | ENDED | Shop at ECS Tuning | ||||
| 04 | Screw for thermoplastic plastics | P-TS3X10-ZN | 3 | 07129925827 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Plug | 3 | 51168228760 | $0.30 | Shop at ECS Tuning | |||||
| 06 | Console front | BLAUVIOLETT | 1 | 51162266564 | $408.46 | ENDED | Shop at ECS Tuning | |||
| 06 | Console front | KLASSISCHROT | 1 | 51162266566 | $408.46 | ENDED | Shop at ECS Tuning | |||
| 06 | Console front | HASELNUSS | 1 | 51162266567 | $408.46 | ENDED | Shop at ECS Tuning | |||
| 06 | Console front | SCHWARZ | 1 | 51162266568 | $386.98 | ENDED | Shop at ECS Tuning | |||
| 06 | Console front | CHAMPAGNER | 1 | 51162266569 | $408.46 | ENDED | Shop at ECS Tuning | |||
| 06 | Console front | SCHWARZ | 1 | 51168195813 | $51.13 | ENDED | Shop at ECS Tuning | |||
| 06 | Console front | SANDGRAU | 1 | 51168195814 | $82.86 | ENDED | Shop at ECS Tuning | |||
| 07 | Console carrier | 1 | 51168132485 | $23.35 | Shop at ECS Tuning | |||||
| 08 | Hex bolt | M8X30 | 2 | 07119913664 | $0.47 | Shop at ECS Tuning | ||||
| 09 | Console cover | SCHWARZ | 1 | 51168151702 | $40.63 | Shop at ECS Tuning | ||||
| 09 | Console cover | SANDGRAU | 1 | 51168196137 | $17.52 | ENDED | Shop at ECS Tuning | |||
| For vehicles with All leather equipment and Luxus equipment and Leather trim Walknappa |
=Yes =Yes =Yes |
|||||||||
| 09 | Console cover | 0318/638/639 SW | 1 | 06/1995 | 51162257341 | $114.95 | ENDED | Shop at ECS Tuning | ||
| 09 | Console cover | CHAMPAGNER | 1 | 06/1995 | 51162266901 | $114.95 | ENDED | Shop at ECS Tuning | ||
| 09 | Console cover | BLAUVIOLETT | 1 | 06/1995 | 51162490369 | ENDED | Shop at ECS Tuning | |||
| 09 | Console cover | KLASSISCHROT | 1 | 06/1995 | 51162490370 | ENDED | Shop at ECS Tuning | |||
| 09 | Console cover | HASELNUSS | 1 | 06/1995 | 51162490371 | ENDED | Shop at ECS Tuning | |||
| 10 | Bush | 2 | 51168135595 | $2.11 | Shop at ECS Tuning | |||||
| 11 | Clamp | 2 | 07149143792 | $0.57 | Shop at ECS Tuning | |||||
| 12 | Center armrest cover | SCHWARZ | 1 | 51168151682 | $14.25 | ENDED | Shop at ECS Tuning | |||
| 12 | Center armrest cover | SANDGRAU | 1 | 51168196135 | $17.52 | ENDED | Shop at ECS Tuning | |||
| ONLY APPLIES TO LUXURY EQUIPMENT ONLY APPLIES TO LEATHER WALK-NAPPA |
||||||||||
| 12 | Center armrest cover | 0318/638/639 SW | 1 | 06/1995 | 51162257287 | $101.84 | ENDED | Shop at ECS Tuning | ||
| 12 | Center armrest cover | CHAMPAGNER | 1 | 06/1995 | 51162266551 | $101.84 | ENDED | Shop at ECS Tuning | ||
| 12 | Center armrest cover | BLAUVIOLETT | 1 | 06/1995 | 51162490362 | ENDED | Shop at ECS Tuning | |||
| 12 | Center armrest cover | KLASSISCHROT | 1 | 06/1995 | 51162490363 | ENDED | Shop at ECS Tuning | |||
| 12 | Center armrest cover | HASELNUSS | 1 | 06/1995 | 51162490364 | ENDED | Shop at ECS Tuning | |||
| 13 | Ring | 2 | 51168135597 | $1.02 | Shop at ECS Tuning | |||||
| 14 | Console rear | 0318/638/639 SW | 1 | 51162257316 | $376.09 | ENDED | Shop at ECS Tuning | |||
| 14 | Console rear | BLAUVIOLETT | 1 | 51162266556 | $376.09 | ENDED | Shop at ECS Tuning | |||
| 14 | Console rear | KLASSISCHROT | 1 | 51162266557 | $376.09 | ENDED | Shop at ECS Tuning | |||
| 14 | Console rear | HASELNUSS | 1 | 51162266558 | $376.09 | ENDED | Shop at ECS Tuning | |||
| 14 | Console rear | CHAMPAGNER | 1 | 51162266559 | $376.09 | ENDED | Shop at ECS Tuning | |||
| 14 | Console rear | SCHWARZ | 1 | 51168151697 | $24.08 | Shop at ECS Tuning | ||||
| 14 | Console rear | SANDGRAU | 1 | 51168196136 | $376.09 | ENDED | Shop at ECS Tuning | |||
| 15 | Fillister head self-tapping screw | ST4,2X13-Z2 | 1 | 07119907939 | $0.11 | Shop at ECS Tuning | ||||
| 16 | C-clip nut | 3 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 17 | Hex bolt | M8X30-Z1-10.9 | 1 | 07119904137 | $0.89 | Shop at ECS Tuning | ||||
| 18 | Bush | 3 | 51168119656 | $0.56 | Shop at ECS Tuning | |||||
| 19 | Washer | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 20 | Storing partition rear | 1 | 51168119626 | $12.27 | Shop at ECS Tuning | |||||
| 21 | Ashtray box | CHROM | 1 | 51162491515 | $33.83 | +core | Shop at ECS Tuning | |||
| 21 | Ashtray box | 1 | 51168144797 | $25.23 | Shop at ECS Tuning | |||||
| 22 | Ashtray insert | 1 | 51168144795 | $28.87 | Shop at ECS Tuning | |||||
| 22 | Ashtray insert | CHROM | 1 | 51168398474 | $28.87 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 323ti Armrest front?
- This technical diagram illustrates the Armrest front within the Vehicle trim group for the 3 Series E36 323ti produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Armrest leather (Part #51162494663).
- Which models use the hardware listed in this Armrest front?
- The hardware and components featured in the Armrest front are specific to the 3 Series E36 323ti produced during 1998. These technical specifications ensure that parts like the Armrest leather (51162494663) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Armrest front assembly?
- Each item in the Armrest front corresponds to the numbered list below the illustration. For the 3 Series E36 323ti, you can identify the Armrest leather by locating its position on the schematic, which then links to the official BMW part number 51162494663 for the Vehicle trim section.
