Mounting parts, instr. panel for BMW 7 Series E38 750iLS

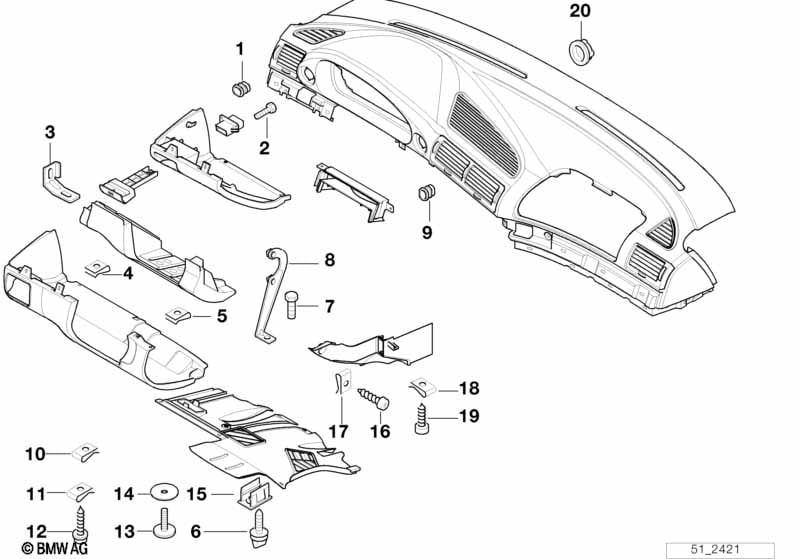

This Mounting parts, instr. panel technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLS. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plug-in retainer | 2 | 51459141448 | $1.03 | Shop at ECS Tuning | |||||
| 02 | Oval-head screw | 4X12 | 3 | 64111378861 | $0.53 | Shop at ECS Tuning | ||||
| 03 | Trim panel bracket | 1 | 51168169717 | $2.29 | Shop at ECS Tuning | |||||
| 04 | Body nut | ST4,2-2ZNS | 2 | 07129901645 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Body nut | ST4,2-1-ZNS3 | 2 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Lock | 2 | 51711916197 | $1.35 | Shop at ECS Tuning | |||||
| 07 | Hex bolt with washer | M6X16-U1-8.8 | 3 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Foot controls trim panel bracket | 1 | 51168169722 | $7.03 | ENDED | Shop at ECS Tuning | ||||
| 09 | Insert | 2 | 51458161557 | $1.23 | Shop at ECS Tuning | |||||
| 10 | Body nut | ST4,2-3-ZNS3 | 1 | 07129904221 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Body nut | ST4,2-2ZNS | 2 | 07129901645 | $0.11 | Shop at ECS Tuning | ||||
| 12 | Sheet metal screw | ST4,2X19-U2-C-H | 2 | 07119904176 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Fillister head screw | 3X16MM | 2 | 51458192765 | $0.52 | Shop at ECS Tuning | ||||
| 14 | Gasket | 2 | 51131906872 | $0.17 | Shop at ECS Tuning | |||||
| 15 | Insert | 2 | 51458166654 | $0.35 | Shop at ECS Tuning | |||||
| 16 | Fillister head self-tapping screw | ST4,2X16-Z2 | 2 | 07119907948 | $0.18 | Shop at ECS Tuning | ||||
| 17 | Body nut | ST4,2-4 | X | 07129904144 | $0.09 | Shop at ECS Tuning | ||||
| 18 | C-clip nut | 4 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 19 | Fillister head self-tapping screw | ST4,2X13-Z2 | 1 | 07119907939 | $0.11 | Shop at ECS Tuning | ||||
| 20 | Central centering bracket grommet | 1 | 51458170479 | $0.78 | Shop at ECS Tuning |
