Headlining / Handle for BMW 3 Series E36 323i (1999)

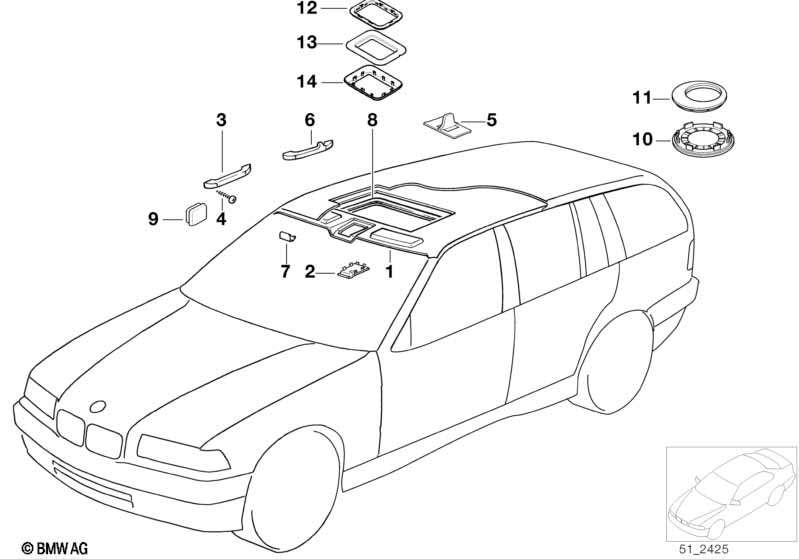

This Headlining / Handle technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Headlining | SCHWARZ | 1 | 51442252922 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Headlining | HELLGRAU | 1 | 51448239481 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Headlining | HELLBEIGE | 1 | 51448239482 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Headliner, sunroof | HELLGRAU | 1 | 51448239472 | +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Right mirror lamp | HELLGRAU | 1 | 63316961996 | $10.07 | Shop at ECS Tuning | ||||
| 01 | Headliner, sunroof | SCHWARZ | 1 | 09/1997 | 51442252921 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Right mirror lamp | SCHWARZ | 1 | 09/1997 | 63316961992 | $10.07 | Shop at ECS Tuning | |||
| 01 | Headliner, sunroof | HELLBEIGE | 1 | 09/1997 | 51448239477 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Right mirror lamp | HELLBEIGE | 1 | 09/1997 | 63316962002 | $10.07 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Sliding lifting roof manual |
=Yes |
|||||||||
| 02 | Cover | ANTHRAZIT | 1 | 51442258355 | Shop at ECS Tuning | |||||
| 02 | Cover | GRAU | 1 | 51448173535 | $13.37 | Shop at ECS Tuning | ||||
| 02 | Cover | BEIGE | 1 | 51448173536 | $13.37 | Shop at ECS Tuning | ||||
| For vehicles with Lift-up-and-slide-back sunroof, electric |
=Yes |
|||||||||
| 02 | Cover sliding roof motor | ANTHRAZIT | 1 | 51442258323 | $14.98 | Shop at ECS Tuning | ||||
| 02 | Cover sliding roof motor | GRAU | 1 | 51448173537 | $14.98 | Shop at ECS Tuning | ||||
| 02 | Cover sliding roof motor | BEIGE | 1 | 51448173538 | $14.98 | ENDED | Shop at ECS Tuning | |||
| 03 | Grab handle, front | GRAU | 1 | 51168203991 | $11.78 | Shop at ECS Tuning | ||||
| 03 | Grab handle, front | BEIGE | 1 | 51168203992 | $11.78 | Shop at ECS Tuning | ||||
| 03 | Grab handle, front | SCHWARZ | 1 | 51168203994 | $17.15 | ENDED | Shop at ECS Tuning | |||
| 04 | Fillister head self-tapping screw | ST4,8X13 | 6 | 07119907786 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Holder | 1 | 51438183314 | $0.82 | Shop at ECS Tuning | |||||
| 06 | Handle rear | GRAU | 1 | 51168203984 | $11.78 | Shop at ECS Tuning | ||||
| 06 | Handle rear left | BEIGE | 1 | 51168203985 | $11.78 | Shop at ECS Tuning | ||||
| 06 | Handle rear right | BEIGE | 1 | 51168203986 | $11.78 | Shop at ECS Tuning | ||||
| 06 | Handle covering | SCHWARZ | 1 | 51168203989 | $11.78 | Shop at ECS Tuning | ||||
| 06 | Handle rear right | SCHWARZ | 1 | 51168203990 | $11.78 | ENDED | Shop at ECS Tuning | |||
| 07 | Clamp | 2 | 51448181426 | $0.61 | Shop at ECS Tuning | |||||
| 08 | Synthetic strip | SCHWARZ | 1 | 54122253561 | $25.08 | +core | Shop at ECS Tuning | |||
| 08 | Synthetic strip | GRAU | 1 | 54128173539 | $25.08 | ENDED | Shop at ECS Tuning | |||
| 08 | Synthetic strip | BEIGE | 1 | 54128173540 | $25.08 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Handle covering | GRAU | 2 | 51448173485 | Shop at ECS Tuning | |||||
| 09 | Handle covering | BEIGE | 2 | 51448173486 | Shop at ECS Tuning | |||||
| 09 | Handle covering | SCHWARZ | 2 | 51448190765 | Shop at ECS Tuning | |||||
| 10 | Cover Loudspeaker | HELLGRAU | 2 | 51448362121 | Shop at ECS Tuning | |||||
| 10 | Cover Loudspeaker | HELBEIGE | 2 | 51448362122 | ENDED | Shop at ECS Tuning | ||||
| 10 | Cover Loudspeaker | SCHWARZ | 2 | 65112267160 | Shop at ECS Tuning | |||||
| 11 | Gasket | 2 | 51448187678 | ENDED | Shop at ECS Tuning | |||||
| 12 | Lower radio burglar alarm bracket | 1 | 51448209819 | Shop at ECS Tuning | ||||||
| 13 | Upper radio burglar alarm bracket | 1 | 51448209820 | Shop at ECS Tuning | ||||||
| 14 | Radio burglar alarm cover | ANTHRAZIT | 1 | 51442491013 | $22.34 | ENDED | Shop at ECS Tuning | |||
| 14 | Radio burglar alarm cover | HELLBEIGE | 1 | 51448191357 | $21.40 | Shop at ECS Tuning | ||||
| 14 | Radio burglar alarm cover | HELLGRAU | 1 | 51448213958 | $21.40 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
