Air duct for BMW 7 Series E38 740i (2001)

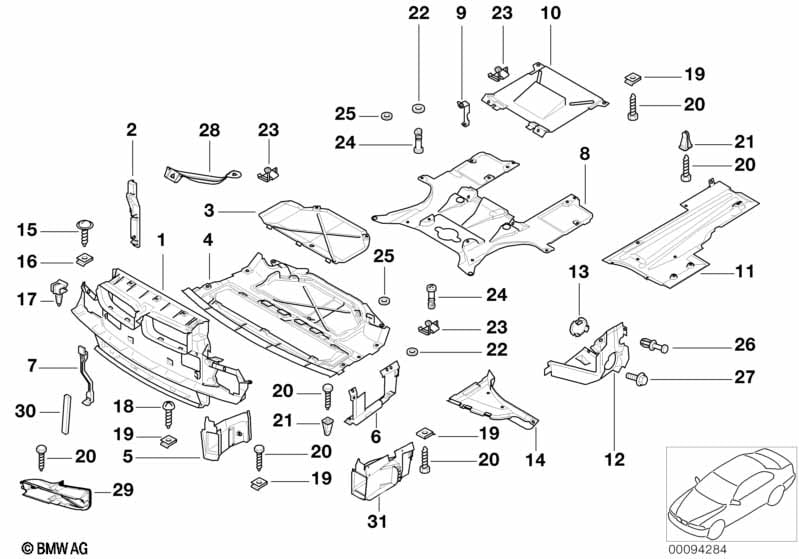

This Air duct technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front air duct | 1 | 51718177609 | $67.60 | Shop at ECS Tuning | |||||
| 02 | Left front panel support sealing | 1 | 51718168197 | $16.67 | Shop at ECS Tuning | |||||
| 02 | Right front panel support sealing | 1 | 51718168198 | $16.67 | Shop at ECS Tuning | |||||
| 03 | Cover, engine compartment screening | 1 | 51718163833 | $31.10 | Shop at ECS Tuning | |||||
| 04 | Engine compartment screening, front | 1 | 51718150223 | $172.85 | Shop at ECS Tuning | |||||

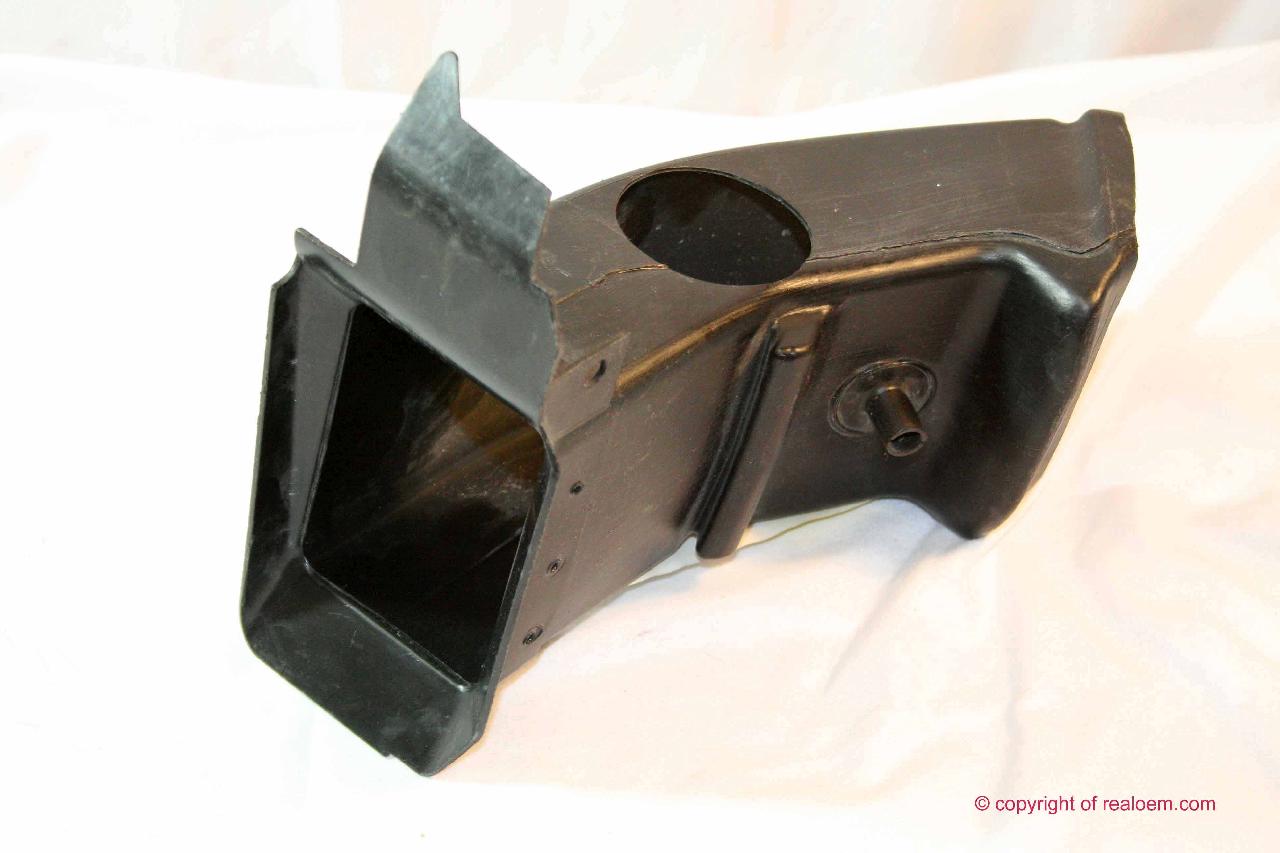

| 05 | Front left brake air duct | 1 | 51718125967 | $17.98 | Shop at ECS Tuning | |||||

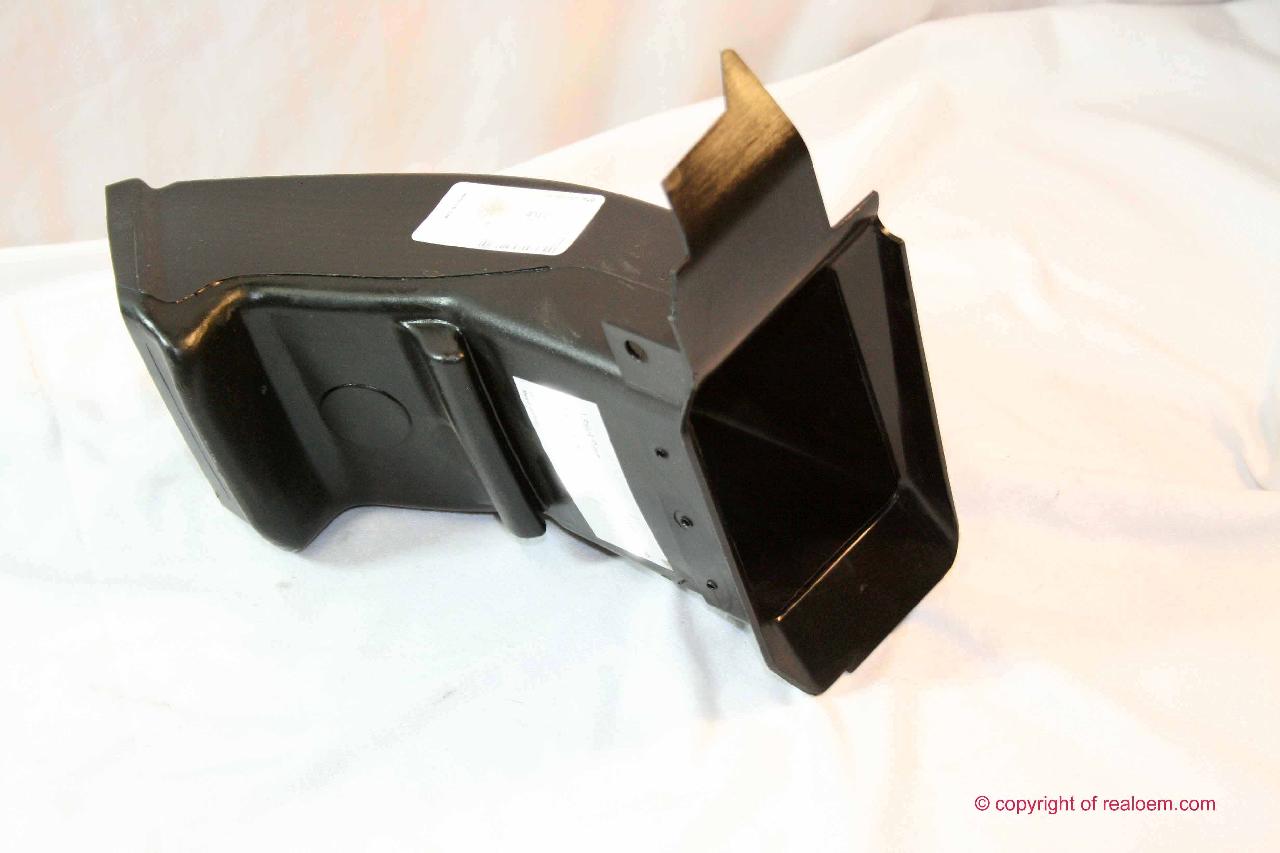

| 05 | Front right brake air duct | 1 | 51718125968 | $17.98 | Shop at ECS Tuning | |||||
| 06 | Lateral left engine compartm.screening | 1 | 51718163835 | $41.77 | Shop at ECS Tuning | |||||
| 06 | Lateral right engine compartm.screening | 1 | 51718163836 | $41.77 | Shop at ECS Tuning | |||||
| 07 | Front airduct link | 1 | 51718174857 | $1.20 | Shop at ECS Tuning | |||||
| without absorber | ||||||||||
| 08 | Underfloor coating | 1 | 09/1998 | 51718158548 | Shop at ECS Tuning | |||||
| 09 | Bracket underfloor panelling, left | 1 | 09/1994 | 51718202965 | $4.09 | Shop at ECS Tuning | ||||
| 09 | Bracket underfloor panelling, right | 1 | 09/1994 | 51718202966 | $4.09 | Shop at ECS Tuning | ||||
| 09 | Bracket underfloor panelling, left | 5HP24 | 1 | 03/1996 | 51718202967 | $4.09 | Shop at ECS Tuning | |||
| 10 | Underfloor coating cover | 1 | 51718166632 | $37.37 | Shop at ECS Tuning | |||||
| 10 | Underfloor coating cover | 5HP24 | 1 | 03/1996 | 51718171972 | $37.37 | Shop at ECS Tuning | |||
| 10 | Underfloor coating cover | 5HP24 | 1 | 03/1996 | 51718171972 | $37.37 | Shop at ECS Tuning | |||
| 11 | Cover panel outer right | 1 | 09/1998 | 51718242710 | $24.12 | Shop at ECS Tuning | ||||
| 11 | Cover panel outer left | 1 | 09/1998 | 51718242719 | $24.12 | Shop at ECS Tuning | ||||
| For vehicles with Auxiliary heating |
S536A=Yes |
|||||||||
| 11 | Cover panel outer left | 1 | 09/1998 | 51718242719 | $24.12 | Shop at ECS Tuning | ||||
| 12 | Upper left engine compartment cover | D=112MM | 1 | 51718201163 | $15.12 | Shop at ECS Tuning | ||||
| 12 | Upper right engine compartment cover | D=112MM | 1 | 51718201164 | $15.12 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Wading depth |
=Yes |
|||||||||
| 12 | Upper left engine compartment cover | D=112MM | 1 | 12/1996 | 51718231455 | $22.42 | Shop at ECS Tuning | |||
| 12 | Upper right engine compartment cover | D=112MM | 1 | 12/1996 | 51718231456 | $22.42 | Shop at ECS Tuning | |||
| 13 | Upper engine compartment cover lid | D=111MM | 2 | 51718209028 | $3.70 | Shop at ECS Tuning | ||||
| For vehicles with Wading depth |
=Yes |
|||||||||
| 13 | Grommet f upper cover | 1 | 12/1996 | 51718231737 | $19.80 | Shop at ECS Tuning | ||||

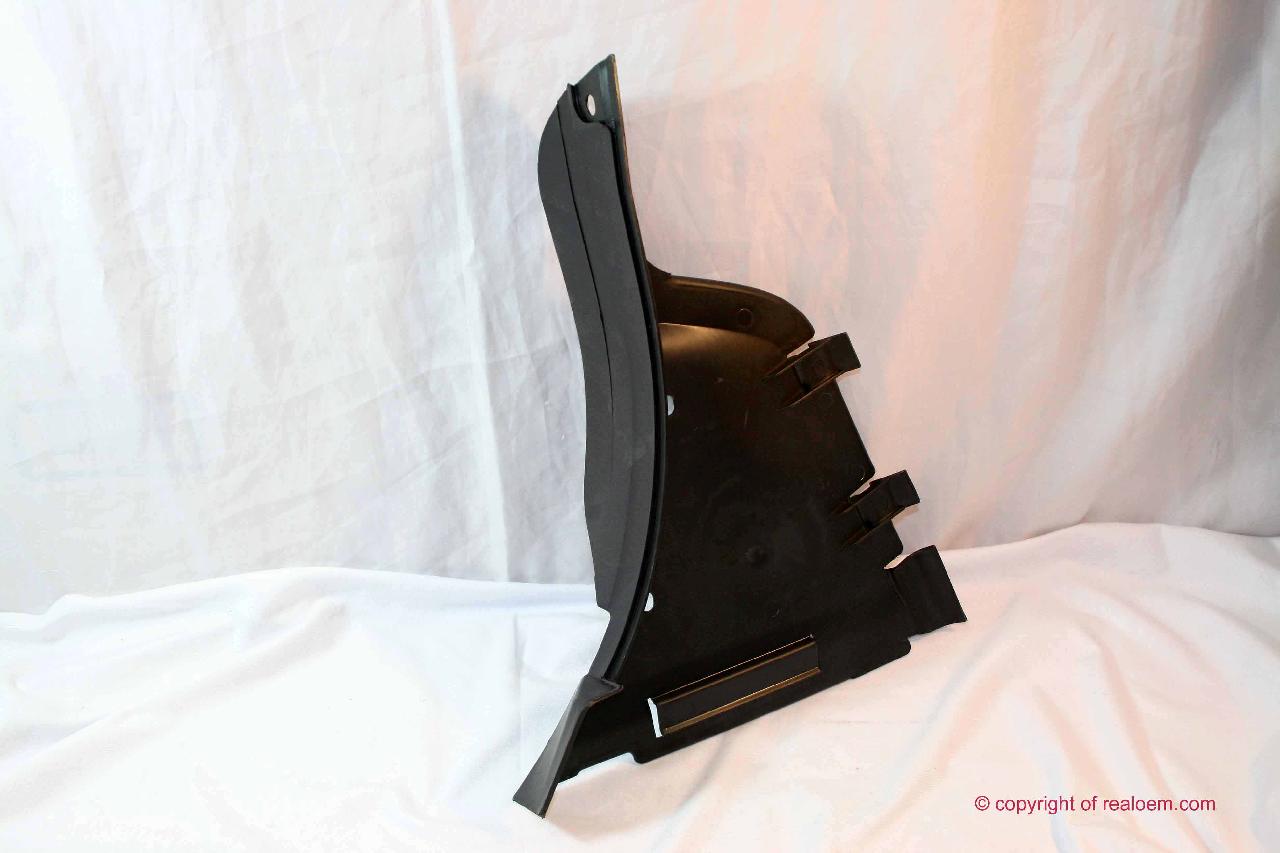

| 14 | Lower left engine compartment cover | 1 | 51718150449 | $11.22 | Shop at ECS Tuning | |||||
| 14 | Lower right engine compartment cover | 1 | 09/1998 | 51718195374 | $13.22 | Shop at ECS Tuning | ||||
| 15 | Sheet metal screw | ST4,8X16-Z2 | 3 | 51711916017 | $0.41 | Shop at ECS Tuning | ||||
| 16 | Body nut | ST4,8-9-ZNS3 | 3 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Clamp | 2 | 51718190602 | $2.48 | Shop at ECS Tuning | |||||
| 18 | Fillister head self-tapping screw | ST4,8X16 | 3 | 07147137416 | $0.20 | Shop at ECS Tuning | ||||
| 19 | Body nut | ST4,8-11-ZN | X | 07129904217 | $0.25 | Shop at ECS Tuning | ||||
| 20 | Hex head screw | ST4,8X16-ZNS3 | X | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 21 | Expanding nut | ST 4.8 WEISS | X | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 22 | Washer | 6 | 51718176504 | $0.32 | Shop at ECS Tuning | |||||
| 23 | Clamp | 6 | 51718176503 | $1.26 | Shop at ECS Tuning | |||||
| 24 | Screw plug | L=13,5MM | X | 51718218323 | $1.95 | Shop at ECS Tuning | ||||
| 24 | Screw plug | L=16MM | 2 | 51718218852 | $2.08 | Shop at ECS Tuning | ||||
| 25 | Circlip | 6,3X12,5 | 4 | 51718195383 | $0.32 | Shop at ECS Tuning | ||||
| 26 | Expanding rivet | X | 17111712963 | $0.27 | Shop at ECS Tuning | |||||
| 26 | Expanding rivet | D = 8MM | 2 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 27 | Hex bolt with washer | M6X12-U1-8.8 | 1 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 28 | Engine compartment protection backet | 1 | 51718207201 | $8.23 | Shop at ECS Tuning | |||||
| 28 | Engine compartment protection backet | 1 | 51718207201 | $8.23 | Shop at ECS Tuning | |||||
| 31 | Lateral left engine compartm.screening | 1 | 51718264395 | $41.77 | Shop at ECS Tuning | |||||
| 31 | Lateral right engine compartm.screening | 1 | 09/1998 | 51718235260 | $41.77 | Shop at ECS Tuning | ||||
