Extending cargo cover/partition net for BMW 3 Series E36 325tds (1999)

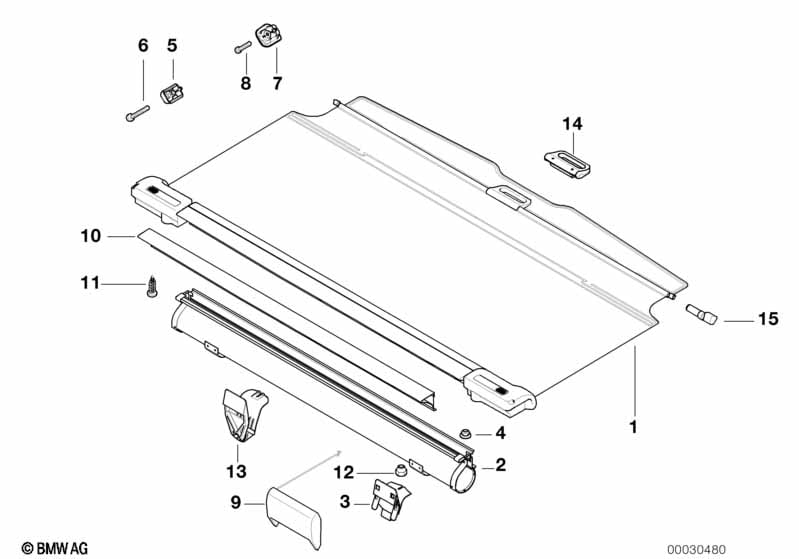

This Extending cargo cover/partition net technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Roller blind | GRAU | 1 | 51478191824 | ENDED | Shop at ECS Tuning | ||||
| 01 | Roller blind | BEIGE | 1 | 51478191826 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO NET ROLLER | ||||||||||
| 01 | Roller blind | SCHWARZ | 1 | 51478193961 | $451.98 | ENDED | Shop at ECS Tuning | |||
| 01 | Roller blind | GRAU | 1 | 51478193962 | ENDED | Shop at ECS Tuning | ||||
| 01 | Roller blind | BEIGE | 1 | 51478193963 | ENDED | Shop at ECS Tuning | ||||
| 02 | Netted blind | SCHWARZ | 1 | 51478191855 | ENDED | Shop at ECS Tuning | ||||
| 02 | Netted blind | GRAU | 1 | 51478191856 | ENDED | Shop at ECS Tuning | ||||
| 02 | Netted blind | BEIGE | 1 | 51478191857 | ENDED | Shop at ECS Tuning | ||||
| 03 | Netted blind support | 2 | 51472492325 | ENDED, +core | Shop at ECS Tuning | |||||
| 04 | Cap nut | M5 | 2 | 51711934930 | $0.23 | Shop at ECS Tuning | ||||
| 05 | Support left | GRAU | 1 | 51478193953 | Shop at ECS Tuning | |||||
| 05 | Support right | GRAU | 1 | 51478193954 | Shop at ECS Tuning | |||||
| 05 | Support left | BEIGE | 1 | 51478193955 | ENDED | Shop at ECS Tuning | ||||
| 05 | Support right | BEIGE | 1 | 51478193956 | ENDED | Shop at ECS Tuning | ||||
| 05 | Support left | SCHWARZ | 1 | 51482267161 | Shop at ECS Tuning | |||||
| 05 | Support right | SCHWARZ | 1 | 51482267162 | Shop at ECS Tuning | |||||
| 06 | Fillister head screw | M6X30-8.8-ZN | 2 | 07119900571 | Shop at ECS Tuning | |||||
| 07 | Support left | GRAU | 1 | 51478193957 | Shop at ECS Tuning | |||||
| 07 | Support right | GRAU | 1 | 51478193958 | ENDED | Shop at ECS Tuning | ||||
| 07 | Support left | BEIGE | 1 | 51478193959 | ENDED | Shop at ECS Tuning | ||||
| 07 | Support right | BEIGE | 1 | 51478193960 | ENDED | Shop at ECS Tuning | ||||
| 07 | Support left | SCHWARZ | 1 | 51482267163 | ENDED | Shop at ECS Tuning | ||||
| 07 | Support right | SCHWARZ | 1 | 51482267164 | ENDED | Shop at ECS Tuning | ||||
| 08 | Torx bolt | ISA M6X16 | 2 | 41352290799 | $1.10 | Shop at ECS Tuning | ||||
| 09 | Covering cap | 2 | 51478209757 | Shop at ECS Tuning | ||||||
| 10 | Cover | BEIGE | 1 | 51478191772 | ENDED | Shop at ECS Tuning | ||||
| 10 | Cover | SCHWARZ | 1 | 51478191841 | ENDED | Shop at ECS Tuning | ||||
| 10 | Cover | GRAU | 1 | 51478191842 | ENDED | Shop at ECS Tuning | ||||
| 11 | Sheet metal screw | 3,5X9,5 | 3 | 07119904455 | $2.45 | Shop at ECS Tuning | ||||
| 12 | Self-locking hex nut | M6 | 2 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 13 | Netted blind support | 2 | 03/1996 | 51472492325 | ENDED, +core | Shop at ECS Tuning | ||||
| 14 | Set handle | SCHWARZ | 1 | 51478253876 | Shop at ECS Tuning | |||||
| 14 | Set handle | DUNKELGRAU | 1 | 51478253877 | ENDED | Shop at ECS Tuning | ||||
| 14 | Set handle | DUNKELBEIGE | 1 | 51478253878 | ENDED | Shop at ECS Tuning | ||||
| 15 | Pin | 2 | 51478149029 | $1.38 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
