Fine wood trim, birds eye maple wood for BMW 5 Series E34 525i (1996)

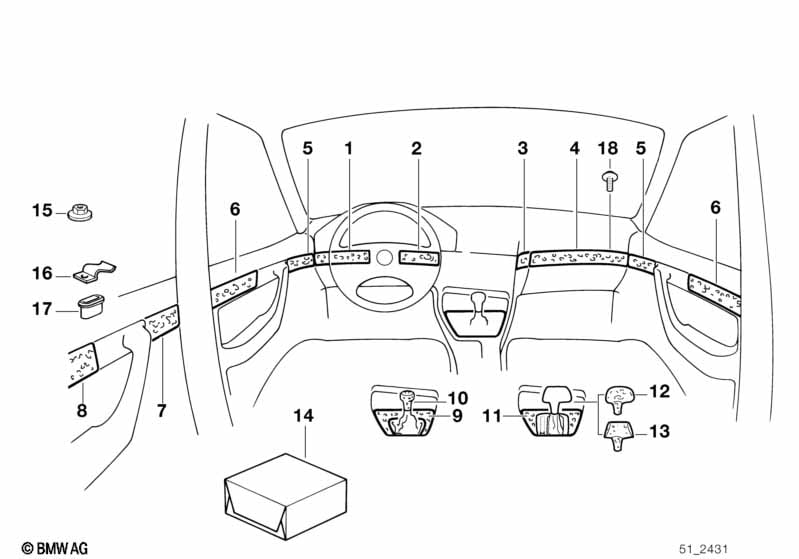

This Fine wood trim, birds eye maple wood technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ONLY APPLIES TO WOODEN EQUIPMENT/SA773 --------------------------- EQUIPMENT OF GRAPHIT MAPLE-TREE WOOD ALSO FOR Special series Executive = Opt. 740-749 --------------------------- EQUIPMENT OF GREY MAPLE-TREE WOOD ALSO FOR INDIVIDUAL SERIES 93 EDEL TOURING HG71/HG81 09/93-12/93 |
|||||||||
| 01 | Vogelaugenahorn wooden strip | GRAU 0120 | 1 | 51452252438 | ENDED | Shop at ECS Tuning | ||||
| 01 | Vogelaugenahorn wooden strip | GRAPHIT 0130 | 1 | 51452264090 | ENDED | Shop at ECS Tuning | ||||
| 02 | Vogelaugenahorn wooden strip | GRAU 0120 | 1 | 51452252442 | ENDED | Shop at ECS Tuning | ||||
| 02 | Vogelaugenahorn wooden strip | GRAPHIT 0130 | 1 | 51452263904 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Hands-free telephone |
=Yes |
|||||||||
| 02 | Vogelaugenahorn wooden strip | GRAU 0120 | 1 | 51452262974 | ENDED | Shop at ECS Tuning | ||||
| 02 | Vogelaugenahorn wooden strip | GRAPHIT 0130 | 1 | 51452264098 | ENDED | Shop at ECS Tuning | ||||
| 03 | Vogelaugenahorn wooden strip | GRAU 0120 | 1 | 51452252445 | ENDED | Shop at ECS Tuning | ||||
| 03 | Vogelaugenahorn wooden strip | GRAPHIT 0130 | 1 | 51452263905 | ENDED | Shop at ECS Tuning | ||||
| 04 | Vogelaugenahorn wooden strip | GRAPHIT 0130 | 1 | 51162263906 | ENDED | Shop at ECS Tuning | ||||
| 04 | Vogelaugenahorn wooden strip | GRAU 0120 | 1 | 51452252450 | ENDED | Shop at ECS Tuning | ||||
| 05 | Front left vogelaugenahorn wooden strip | GRAPHIT 0130 | 1 | 51412136181 | $77.11 | ENDED | Shop at ECS Tuning | |||
| 05 | Front right vogelaugenahorn wooden strip | GRAPHIT 0130 | 1 | 51412136182 | $77.11 | ENDED | Shop at ECS Tuning | |||
| 05 | Front left vogelaugenahorn wooden strip | GRAU 0120 | 1 | 51412252453 | $75.61 | ENDED | Shop at ECS Tuning | |||
| 05 | Front right vogelaugenahorn wooden strip | GRAU 0120 | 1 | 51412252454 | $77.11 | ENDED | Shop at ECS Tuning | |||
| 06 | Rear left vogelaugenahorn wooden strip | GRAPHIT 0130 | 1 | 51412136183 | $84.67 | ENDED | Shop at ECS Tuning | |||
| 06 | Rear right vogelaugenahorn wooden strip | GRAPHIT 0130 | 1 | 51422136184 | $79.95 | ENDED | Shop at ECS Tuning | |||
| 06 | Rear left vogelaugenahorn wooden strip | GRAU 0120 | 1 | 51422252461 | $84.67 | Shop at ECS Tuning | ||||
| 06 | Rear right vogelaugenahorn wooden strip | GRAU 0120 | 1 | 51422252462 | $81.80 | ENDED | Shop at ECS Tuning | |||
| 07 | Front left vogelaugenahorn wooden strip | GRAPHIT 0130 | 1 | 51422136185 | ENDED | Shop at ECS Tuning | ||||
| 07 | Front right vogelaugenahorn wooden strip | GRAPHIT 0130 | 1 | 51422136186 | $79.39 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Front left vogelaugenahorn wooden strip | GRAU 0120 | 1 | 51422252469 | $77.11 | ENDED | Shop at ECS Tuning | |||
| 07 | Front right vogelaugenahorn wooden strip | GRAU 0120 | 1 | 51422252470 | $75.61 | ENDED | Shop at ECS Tuning | |||
| 08 | Rear right vogelaugenahorn wooden strip | GRAPHIT 0130 | 1 | 51412136188 | $84.67 | ENDED | Shop at ECS Tuning | |||
| 08 | Rear right vogelaugenahorn wooden strip | GRAU 0120 | 1 | 51412252478 | $84.67 | ENDED | Shop at ECS Tuning | |||
| 08 | Rear left vogelaugenahorn wooden strip | GRAPHIT 0130 | 1 | 51422136187 | $83.42 | ENDED | Shop at ECS Tuning | |||
| 08 | Rear left vogelaugenahorn wooden strip | GRAU 0120 | 1 | 51422252477 | $84.67 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Automatic transmission Eh |
=Yes |
|||||||||
| 11 | Depos.box bottom panel, vogelaugenahorn | GRAPHIT 0130 | 1 | 51162264100 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission Eh ONLY APPLIES TO ASC,EDC |
=Yes |
|||||||||
| 11 | Depos.box bottom panel, vogelaugenahorn | GRAU 0120 | 1 | 51162263901 | ENDED | Shop at ECS Tuning | ||||
| 11 | Depos.box bottom panel, vogelaugenahorn | GRAPHIT 0130 | 1 | 51162264102 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission Eh and Leather trim |
=Yes =Yes |
|||||||||
| 11 | Depos.box bottom panel, vogelaugenahorn | GRAU 0120 | 1 | 51162251978 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission Eh and Leather trim ONLY APPLIES TO ASC,EDC |
=Yes =Yes |
|||||||||
| 11 | Depos.box bottom panel, vogelaugenahorn | GRAU 0120 | 1 | 51162254216 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Automatic transmission Eh and Leather trim |
L807A=Yes =Yes =Yes |
|||||||||
| 11 | Depos.box bottom panel, vogelaugenahorn | BEIGE 0110 | 1 | 51162251977 | ENDED | Shop at ECS Tuning | ||||
| 12 | Selector lever handle,wood vogelaugenah. | GRAU 0120 | 1 | 25162252674 | ENDED | Shop at ECS Tuning | ||||
| 12 | Selector lever handle,wood vogelaugenah. | GRAPHIT 0130 | 1 | 25162261242 | ENDED | Shop at ECS Tuning | ||||
| 13 | Vogelaugenahorn control lever | GRAPHIT 0130 | 1 | 25162263908 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 13 | Selector lever handle,wood vogelaugenah. | BEIGE 0110 | 1 | 25162251981 | ENDED | Shop at ECS Tuning | ||||
| 13 | Selector lever handle,wood vogelaugenah. | GRAU 0120 | 1 | 25162251982 | ENDED | Shop at ECS Tuning | ||||
| 14 | Vogelaugenahorn wood cover repair kit | GRAU 0120 | 1 | 51412251974 | ENDED | Shop at ECS Tuning | ||||
| 14 | Vogelaugenahorn wood cover repair kit | GRAPHIT 0130 | 1 | 51412263902 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 14 | Vogelaugenahorn wood cover repair kit | BEIGE 0110 | 1 | 51412251973 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Hands-free telephone |
=Yes |
|||||||||
| 14 | Vogelaugenahorn wood cover repair kit | GRAU 0120 | 1 | 51412262946 | ENDED | Shop at ECS Tuning | ||||
| 14 | Vogelaugenahorn wood cover repair kit | GRAPHIT 0130 | 1 | 51412264097 | ENDED | Shop at ECS Tuning | ||||
| 15 | Flange nut | M4 | X | 51418137329 | $0.47 | Shop at ECS Tuning | ||||
| 15 | Cap nut | D=3MM | X | 51418181398 | $0.39 | Shop at ECS Tuning | ||||
| 16 | Clamp | X | 51451873559 | $0.95 | Shop at ECS Tuning | |||||
| 17 | Grommet | X | 11119157037 | $0.93 | Shop at ECS Tuning | |||||
| 18 | Saucer-head screw | 4 | 51168107577 | $0.25 | Shop at ECS Tuning | |||||
