Floor mats, velours for BMW 2 Series F46 Gran Tourer 218i (2018)

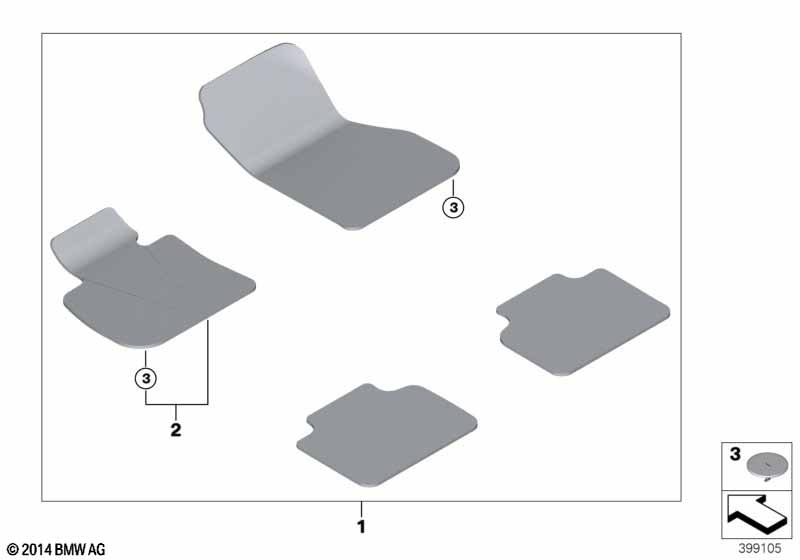

This Floor mats, velours technical drawing provides a detailed breakdown of the assembly for the 2 Series F46 Gran Tourer 218i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set of floor mats Velours | ANTHRAZIT | 1 | 51477410327 | Shop at ECS Tuning | |||||
| For vehicles with canberra-beige |
CY=Yes |
|||||||||
| 01 | Set of floor mats Velours | CANBERRABEIGE | 1 | 51477410324 | Shop at ECS Tuning | |||||
| 02 | Floor mat velours driver side | ANTHRAZIT | 1 | 51477390346 | Shop at ECS Tuning | |||||
| For vehicles with canberra-beige |
CY=Yes |
|||||||||
| 02 | Floor mat velours driver side | CANBERRABEIGE | 1 | 51477372215 | Shop at ECS Tuning | |||||
| 03 | Hook&loop element with bayonet fastener | D62MM/L14MM | 4 | 07149166609 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F46 Gran Tourer 218i Floor mats, velours?
- This technical diagram illustrates the Floor mats, velours within the Vehicle trim group for the 2 Series F46 Gran Tourer 218i produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Set of floor mats Velours (Part #51477410327).
- Which models use the hardware listed in this Floor mats, velours?
- The hardware and components featured in the Floor mats, velours are specific to the 2 Series F46 Gran Tourer 218i produced during 2018. These technical specifications ensure that parts like the Set of floor mats Velours (51477410327) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Floor mats, velours assembly?
- Each item in the Floor mats, velours corresponds to the numbered list below the illustration. For the 2 Series F46 Gran Tourer 218i, you can identify the Set of floor mats Velours by locating its position on the schematic, which then links to the official BMW part number 51477410327 for the Vehicle trim section.
