Side window, fixed position for BMW 3 Series E36 328i

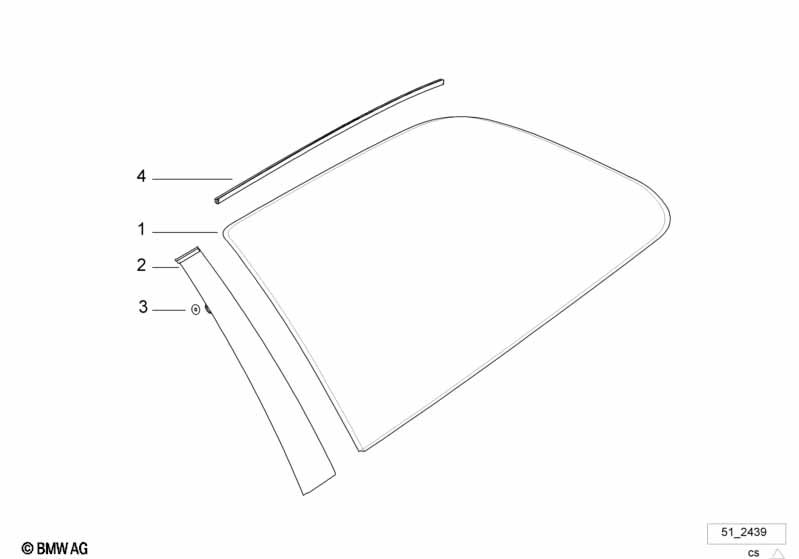

This Side window, fixed position technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 328i. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side window, green, left | 1 | 51368188841 | $97.65 | Shop at ECS Tuning | |||||
| 01 | Side window green right | 1 | 51368188842 | $256.02 | Shop at ECS Tuning | |||||
| For vehicles with Antenna-Diversity |
=Yes |
|||||||||
| 01 | Side window, green, left | 1 | 51368184873 | Shop at ECS Tuning | ||||||
| 02 | Covering left | 1 | 51368171079 | Shop at ECS Tuning | ||||||
| 02 | Covering right | 1 | 51368171080 | Shop at ECS Tuning | ||||||
| 03 | Washer | 5,3X20X1 | 8 | 51361960559 | $5.18 | Shop at ECS Tuning | ||||
| 04 | Gasket f lateral roof cover | 1 | 51718190365 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 328i Side window, fixed position?
- This technical diagram illustrates the Side window, fixed position within the Vehicle trim group for the 3 Series E36 328i. It provides a detailed exploded view of the components, identifying key parts such as the Side window, green, left (Part #51368188841).
- Which models use the hardware listed in this Side window, fixed position?
- The hardware and components featured in the Side window, fixed position are specific to the 3 Series E36 328i. These technical specifications ensure that parts like the Side window, green, left (51368188841) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Side window, fixed position assembly?
- Each item in the Side window, fixed position corresponds to the numbered list below the illustration. For the 3 Series E36 328i, you can identify the Side window, green, left by locating its position on the schematic, which then links to the official BMW part number 51368188841 for the Vehicle trim section.
