Front aggregate protective plate for BMW 3 Series E36 318is (1998)

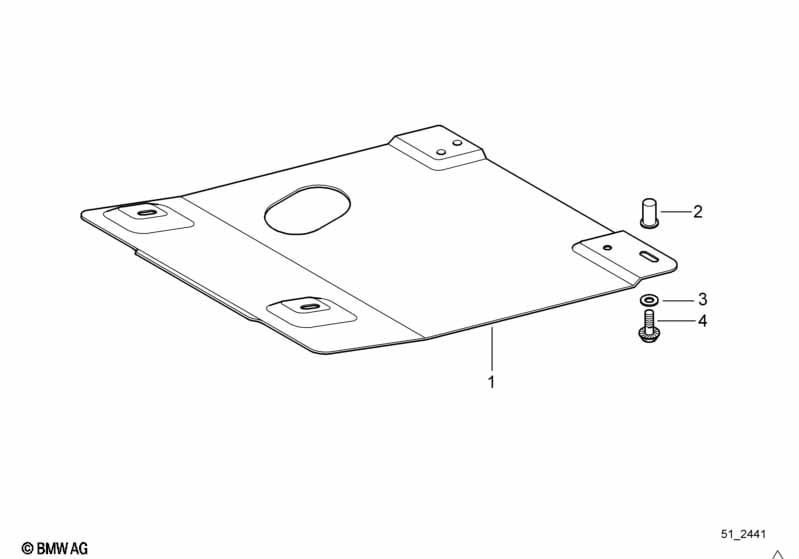

This Front aggregate protective plate technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front aggregate protective plate | ALUMINIUM | 1 | 51718209093 | $103.93 | ENDED | Shop at ECS Tuning | |||
| 02 | Welding nut | M8 | 2 | 32311159024 | $1.63 | Shop at ECS Tuning | ||||
| 02 | Blind rivet nut, flat headed | M8 | 2 | 51711909942 | $3.08 | Shop at ECS Tuning | ||||
| 03 | Washer | 17 | 2 | 07119931687 | $0.13 | Shop at ECS Tuning | ||||
| 04 | Securing bolt | TENSILOCK | 4 | 07149160466 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
