Trim panel dashboard for BMW 7 Series E32 730i (1994)

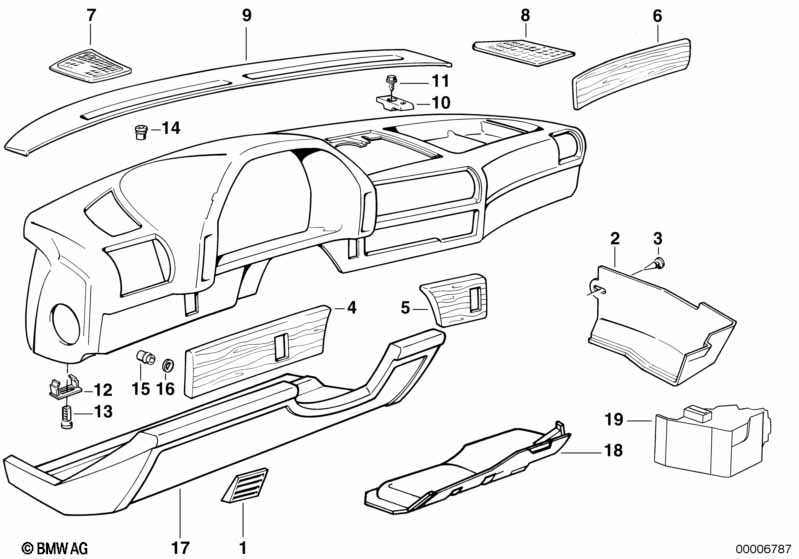

This Trim panel dashboard technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering left | 1 | 51451954647 | $2.04 | ENDED | Shop at ECS Tuning | ||||
| 02 | Trim panel lower right | 1 | 51451951170 | $12.83 | Shop at ECS Tuning | |||||
| 03 | Clip | 1 | 52101873544 | $0.20 | Shop at ECS Tuning | |||||
| 04 | Dash board covering | BUBINGA | 1 | 51451908965 | $101.73 | ENDED | Shop at ECS Tuning | |||
| 04 | Dash board covering | NUSSBAUM | 1 | 04/1992 | 51458147427 | $184.89 | ENDED | Shop at ECS Tuning | ||
| 05 | Dash board covering | BUBINGA | 1 | 51451928037 | $81.32 | ENDED | Shop at ECS Tuning | |||
| 05 | Dash board covering | NUSSBAUM | 1 | 04/1992 | 51458147431 | $201.56 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Headlight aim control |
=Yes |
|||||||||
| 05 | Dash board covering | NUSSBAUM | 1 | 04/1992 | 51458147433 | $189.53 | ENDED | Shop at ECS Tuning | ||
| 06 | Dash board covering | BUBINGA | 1 | 51451908966 | $119.54 | Shop at ECS Tuning | ||||
| 06 | Dash board covering | NUSSBAUM | 1 | 04/1992 | 51458147430 | $165.43 | ENDED | Shop at ECS Tuning | ||
| 07 | Cover loudspeaker left | SCHWARZ | 1 | 51451950851 | $21.20 | ENDED | Shop at ECS Tuning | |||
| 07 | Cover loudspeaker left | SILBERGRAU DKL. | 1 | 09/1990 | 51458140695 | $21.83 | ENDED | Shop at ECS Tuning | ||
| 07 | Cover loudspeaker left | ULTRAMARIN | 1 | 09/1990 | 51458140697 | $28.46 | ENDED | Shop at ECS Tuning | ||
| 07 | Cover loudspeaker left | PERGAMENT DKL. | 1 | 09/1990 | 51458140699 | $21.83 | ENDED | Shop at ECS Tuning | ||
| 08 | Cover loudspeaker right | SCHWARZ | 1 | 51451950852 | $23.99 | ENDED | Shop at ECS Tuning | |||
| 08 | Cover loudspeaker right | SILBERGRAU DKL. | 1 | 09/1990 | 51458140696 | $21.83 | ENDED | Shop at ECS Tuning | ||
| 08 | Cover loudspeaker right | ULTRAMARIN | 1 | 09/1990 | 51458140698 | $19.53 | ENDED | Shop at ECS Tuning | ||
| 08 | Cover loudspeaker right | PERGAMENT DKL. | 1 | 09/1990 | 51458140700 | $31.65 | ENDED | Shop at ECS Tuning | ||
| 09 | Cover | 1 | 51451964579 | $147.29 | Shop at ECS Tuning | |||||
| 10 | Clamp | 3 | 51451958719 | $3.18 | Shop at ECS Tuning | |||||
| 11 | Sheet metal screw | 4,2X16 | 3 | 07119904265 | Shop at ECS Tuning | |||||
| 12 | Bottom part | 2 | 51451928649 | $0.23 | Shop at ECS Tuning | |||||
| 13 | Push-button | SCHWARZ | 2 | 51458116321 | $1.10 | Shop at ECS Tuning | ||||
| 13 | Lock | 2 | 51711916197 | $1.35 | Shop at ECS Tuning | |||||
| 14 | Plug-in retainer | 3 | 51459141448 | $1.03 | Shop at ECS Tuning | |||||
| 15 | Cap nut | M4 | 3 | 41335480120 | $0.20 | Shop at ECS Tuning | ||||
| 16 | Washer | A6,4-200HV-ZNS3 | 3 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
