Door trim, rear for BMW 5 Series E34 518i (1994)

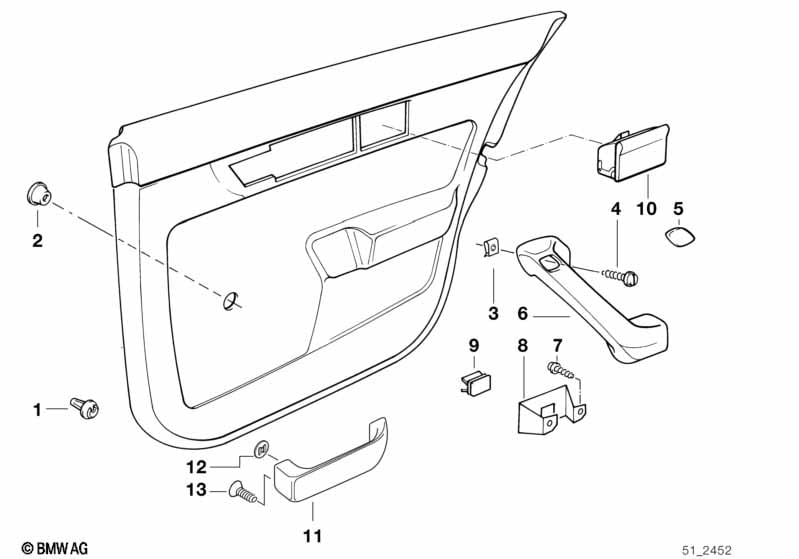

This Door trim, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 518i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Spacer | 2 | 51418107840 | $3.13 | Shop at ECS Tuning | |||||
| 03 | Plug-in nut | M5 | 2 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 04 | Fillister head self-tapping screw | ST4,8X45 | 2 | 07119906771 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Covering upper left | SCHWARZ | 1 | 51421973607 | $1.46 | Shop at ECS Tuning | ||||
| 05 | Covering upper right | SCHWARZ | 1 | 51421973608 | $1.46 | Shop at ECS Tuning | ||||
| 05 | Covering upper left | KARMESINROT | 1 | 09/1989 | 51428102265 | $1.95 | ENDED | Shop at ECS Tuning | ||
| 05 | Covering upper right | KARMESINROT | 1 | 09/1989 | 51428102266 | $1.95 | ENDED | Shop at ECS Tuning | ||
| 05 | Covering upper left | SILBERGRAU | 1 | 09/1990 | 51428137249 | $1.46 | Shop at ECS Tuning | |||
| 05 | Covering upper right | SILBERGRAU | 1 | 09/1990 | 51428137250 | $1.46 | Shop at ECS Tuning | |||
| 05 | Covering upper left | ULTRAMARIN | 1 | 09/1990 | 51428137251 | $1.46 | ENDED | Shop at ECS Tuning | ||
| 05 | Covering upper right | ULTRAMARIN | 1 | 09/1990 | 51428137252 | $1.46 | ENDED | Shop at ECS Tuning | ||
| 05 | Covering upper left | PERGAMENT | 1 | 09/1990 | 51428137253 | $1.46 | ENDED | Shop at ECS Tuning | ||
| 05 | Covering upper right | PERGAMENT | 1 | 09/1990 | 51428137254 | $1.46 | Shop at ECS Tuning | |||
| 05 | Covering upper left | BRASIL | 1 | 09/1990 | 51428137255 | ENDED | Shop at ECS Tuning | |||
| 05 | Covering upper right | BRASIL | 1 | 09/1990 | 51428137256 | ENDED | Shop at ECS Tuning | |||
| 05 | Covering upper left | SILBERGRAU HELL | 1 | 09/1990 | 51428138811 | $1.46 | Shop at ECS Tuning | |||
| 05 | Covering upper right | SILBERGRAU HELL | 1 | 09/1990 | 51428138812 | $1.46 | Shop at ECS Tuning | |||
| 06 | Handle left | SCHWARZ | 1 | 51421973595 | $47.98 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Handle right | SCHWARZ | 1 | 51421973596 | $42.69 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Handle left | KARMESINROT | 1 | 09/1989 | 51428102263 | $64.73 | ENDED | Shop at ECS Tuning | ||
| 06 | Handle right | KARMESINROT | 1 | 09/1989 | 51428102264 | $64.73 | ENDED | Shop at ECS Tuning | ||
| 06 | Handle left | SILBERGRAU | 1 | 09/1990 | 51428126961 | $47.98 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Handle right | SILBERGRAU | 1 | 09/1990 | 51428126962 | $47.98 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Handle left | ULTRAMARIN | 1 | 09/1990 | 51428126963 | $42.69 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Handle right | ULTRAMARIN | 1 | 09/1990 | 51428126964 | $42.69 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Handle left | PERGAMENT | 1 | 09/1990 | 51428126965 | $47.98 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Handle right | PERGAMENT | 1 | 09/1990 | 51428126966 | $47.98 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Handle left | BRASIL | 1 | 09/1990 | 51428126967 | $42.69 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Handle right | BRASIL | 1 | 09/1990 | 51428126968 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Handle left | SILBERGRAU HELL | 1 | 09/1990 | 51428138769 | $42.69 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Handle right | SILBERGRAU HELL | 1 | 09/1990 | 51428138770 | $42.69 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Handle left | 0486/487 SI.GR. | 1 | 09/1991 | 51428155639 | $237.71 | ENDED | Shop at ECS Tuning | ||
| 06 | Handle right | 0486/487 SI.GR. | 1 | 09/1991 | 51428155640 | $237.71 | ENDED | Shop at ECS Tuning | ||
| 07 | Fillister head self-tapping screw | ST4,8X19 | 8 | 07119907790 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Reinforcement left | 1 | 51421978769 | $1.43 | Shop at ECS Tuning | |||||
| 08 | Reinforcement right | 1 | 51421978770 | $1.43 | Shop at ECS Tuning | |||||
| 09 | Clamp | 4 | 51411944663 | $1.00 | Shop at ECS Tuning | |||||
| 10 | Ashtray | 2 | 06/1991 | 51168137396 | $37.92 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
