Module carrier, center console for BMW 7 Series E38 725tds (2000)

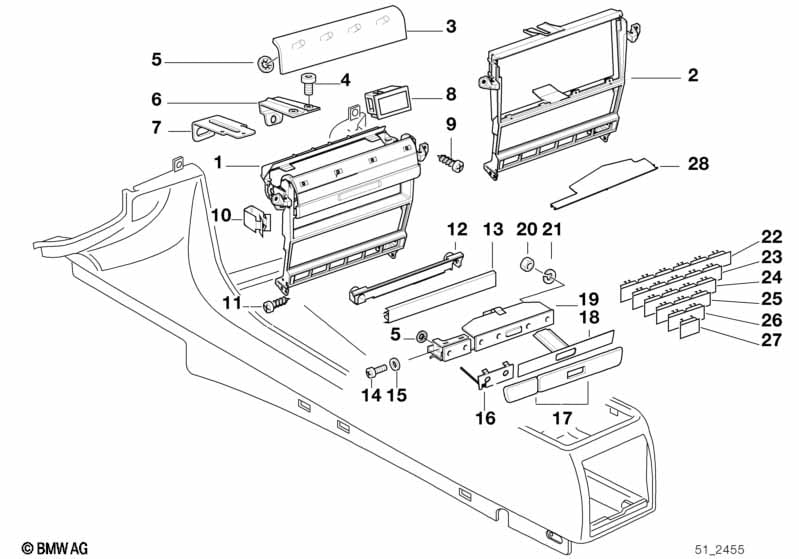

This Module carrier, center console technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 725tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Instr.panel radio flap f center console | 1 | 51168183103 | $241.87 | ENDED | Shop at ECS Tuning | ||||
| 01 | Instr.panel radio flap f center console | 1 | 09/1998 | 51168247248 | $241.87 | ENDED | Shop at ECS Tuning | |||
| 02 | Instr.panel on bord monitor cent.console | 1 | 09/1998 | 51168247250 | $136.60 | ENDED | Shop at ECS Tuning | |||
| 03 | On bord monitor wood strips | VAVONA MATT | 1 | 51168360707 | $277.88 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Wooden cover f radio flap | VAVONA | 1 | 51458150766 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Wooden cover f radio flap | NUSSBAUM | 1 | 51458163936 | $180.98 | ENDED | Shop at ECS Tuning | |||
| 03 | On bord monitor wood strips | NUSSBAUM | 1 | 51458360706 | $268.43 | Shop at ECS Tuning | ||||
| 04 | Fillister-head screw | M3X5 | 3 | 51168190358 | $0.19 | Shop at ECS Tuning | ||||
| 05 | Spring nut | X | 64111364257 | $0.62 | Shop at ECS Tuning | |||||
| 06 | Radio support | 1 | 51168177614 | $5.63 | ENDED | Shop at ECS Tuning | ||||
| 07 | On bord monitor support | 1 | 51168177695 | $5.02 | Shop at ECS Tuning | |||||
| 08 | Center console coinbox | SCHWARZ | 1 | 51168160474 | $37.13 | ENDED | Shop at ECS Tuning | |||
| 09 | Fillister head self-tapping screw | ST4,2X16-Z2 | 2 | 07119907948 | $0.18 | Shop at ECS Tuning | ||||
| 10 | Center console clip | 2 | 51168166680 | $0.69 | Shop at ECS Tuning | |||||
| 11 | Fillister head self-tapping screw | ST4,2X13-Z2 | 2 | 07119907976 | $0.11 | Shop at ECS Tuning | ||||
| 12 | Holder | 1 | 51168169037 | $3.92 | Shop at ECS Tuning | |||||
| 13 | Wooden strip f instrument panel | VAVONA | 1 | 51168169033 | $60.48 | ENDED, +core | Shop at ECS Tuning | |||
| 14 | Fillister head screw | M4X8 | 4 | 07119906407 | $1.64 | Shop at ECS Tuning | ||||
| 15 | Tooth washer | A4,3 | 4 | 07119936037 | $0.36 | Shop at ECS Tuning | ||||
| 16 | Fixing support f wooden strip | 1 | 51168218367 | $3.87 | ENDED | Shop at ECS Tuning | ||||
| 17 | Wooden cover f CAN holder | VAVONA | 1 | 51168163001 | $135.37 | Shop at ECS Tuning | ||||
| 17 | Wooden cover f CAN holder | NUSSBAUM | 1 | 51168163003 | $135.37 | Shop at ECS Tuning | ||||
| 18 | Cover | 1 | 51168163007 | $5.63 | Shop at ECS Tuning | |||||
| For vehicles with Wooden trim |
=Yes |
|||||||||
| 19 | Front CAN holder | 1 | 51168163005 | $171.41 | Shop at ECS Tuning | |||||
| 20 | Hex nut | M4-A2-70 | 4 | 07119922854 | Shop at ECS Tuning | |||||
| 21 | Tooth washer | A4,3 | 4 | 07119936037 | $0.36 | Shop at ECS Tuning | ||||
| 22 | Switch cover | SCHWARZ | 1 | 51168161563 | $6.40 | Shop at ECS Tuning | ||||
| 23 | Switch cover | SCHWARZ | 1 | 51168161564 | $5.94 | Shop at ECS Tuning | ||||
| 24 | Switch cover | SCHWARZ | 1 | 51168161565 | $5.43 | Shop at ECS Tuning | ||||
| 25 | Switch cover | SCHWARZ | 1 | 51168161566 | $4.95 | Shop at ECS Tuning | ||||
| 26 | Switch cover | SCHWARZ | 1 | 51168161567 | $4.51 | Shop at ECS Tuning | ||||
| 27 | Switch cover | SCHWARZ | 1 | 51168161568 | $3.57 | Shop at ECS Tuning | ||||
| 28 | Cable covering f instrument panel | 1 | 51168172332 | $5.03 | ENDED | Shop at ECS Tuning | ||||
