Rear center console for BMW 7 Series E38 L7 (2001)

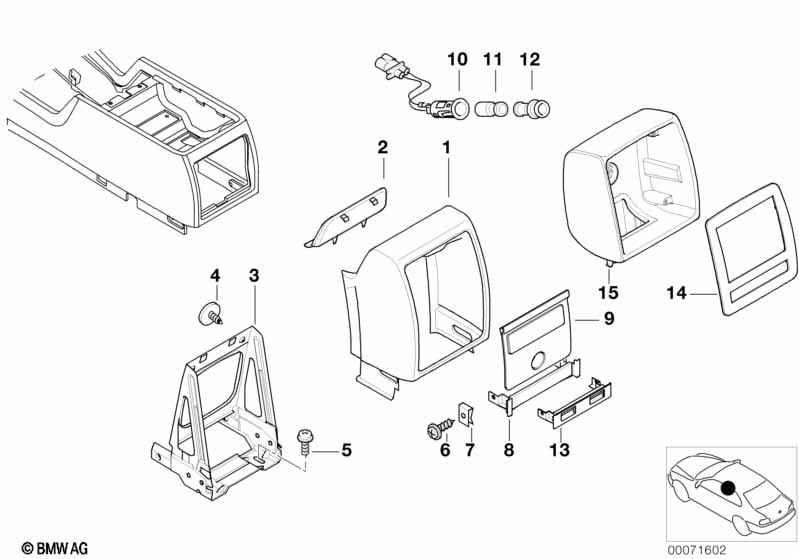

This Rear center console technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 L7. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Air conditioning, rear |
S533A=Yes |
|||||||||
| 01 | Rear center console | GRAU | 1 | 51168206284 | $251.86 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear center console | SCHWARZ | 1 | 51168206285 | $251.86 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear center console | MARINEBLAU | 1 | 51168206286 | $260.03 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear center console | SANDBEIGE | 1 | 51168206287 | $251.86 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear center console | LAVENDELGRAU | 1 | 51168206288 | $251.86 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear center console | PASTELLGRUEN | 1 | 51168206289 | $260.03 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear center console | DUNKELGRUEN | 1 | 51168206290 | $260.03 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear center console | PEARLBEIGE | 1 | 09/1998 | 51168252537 | $260.03 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Air conditioning, rear and Rear display screen |
S533A=Yes S603A=Yes |
|||||||||
| 01 | Rear center console | SCHWARZ | 1 | 03/2000 | 51167000159 | $260.03 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear center console | GRAU | 1 | 03/2000 | 51167000160 | $260.03 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear center console | SANDBEIGE | 1 | 03/2000 | 51167000161 | $260.03 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear center console | MARINEBLAU | 1 | 03/2000 | 51167000162 | $260.03 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear center console | ENGLISCHGRUEN | 1 | 03/2000 | 51167000163 | $260.03 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear center console | LAVENDELGRAU | 1 | 03/2000 | 51167000164 | $260.03 | ENDED | Shop at ECS Tuning | ||
| 01 | Rear center console | PEARLBEIGE | 1 | 03/2000 | 51167000165 | $260.03 | ENDED | Shop at ECS Tuning | ||
| 02 | Rear console cover | GRAU | 1 | 51168227323 | $12.18 | ENDED | Shop at ECS Tuning | |||
| 02 | Rear console cover | SCHWARZ | 1 | 51168227325 | $12.18 | Shop at ECS Tuning | ||||
| 02 | Rear console cover | MARINEBLAU | 1 | 51168227327 | $13.73 | ENDED | Shop at ECS Tuning | |||
| 02 | Rear console cover | SANDBEIGE | 1 | 51168227329 | $12.18 | ENDED | Shop at ECS Tuning | |||
| 02 | Rear console cover | LAVENDELGRAU | 1 | 51168227331 | $13.73 | ENDED | Shop at ECS Tuning | |||
| 02 | Rear console cover | PASTELLGRUEN | 1 | 51168227333 | $13.73 | ENDED | Shop at ECS Tuning | |||
| 02 | Rear console cover | DUNKELGRUEN | 1 | 51168227334 | $13.73 | ENDED | Shop at ECS Tuning | |||
| 02 | Rear console cover | PEARLBEIGE | 1 | 09/1998 | 51168253873 | $13.73 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Air conditioning, rear |
S533A=Yes |
|||||||||
| 03 | Rear console bracket | 1 | 51168191892 | $206.46 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning, rear and Rear display screen |
S533A=Yes S603A=Yes |
|||||||||
| 03 | Rear console bracket | 1 | 03/2000 | 51167000166 | $206.46 | ENDED | Shop at ECS Tuning | |||
| 04 | Fillister head self-tapping screw | ST4,8X13-Z2 | 2 | 07119907957 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Fillister head self-tapping screw | ST4,2X16-Z2 | 2 | 07119907948 | $0.18 | Shop at ECS Tuning | ||||
| 06 | Fillister head self-tapping screw | ST4,2X13-Z2 | 2 | 07119907939 | $0.11 | Shop at ECS Tuning | ||||
| 07 | C-clip nut | 2 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 09 | Rear console wood cover | ERLE BORDEAUX | 1 | 51167016969 | $166.28 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Rear console wood cover | ESCHE GRAU | 1 | 51167016971 | $166.28 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Rear console wood cover | NUSSBAUM | 1 | 51168172714 | $207.75 | +core | Shop at ECS Tuning | |||
| For vehicles with Seat heating, rear |
=Yes |
|||||||||
| 09 | Rear console wood cover | ERLE BORDEAUX | 1 | 51167016970 | $166.28 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Rear console wood cover | ESCHE GRAU | 1 | 51167016972 | $166.28 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Rear console wood cover | NUSSBAUM | 1 | 51168172712 | $207.75 | ENDED, +core | Shop at ECS Tuning | |||
| 10 | Cigarette lighter socket | 2 POL. | 1 | 09/1996 | 61346977679 | $11.32 | Shop at ECS Tuning | |||
| 11 | Lighter element | 1 | 09/1996 | 61349308246 | Shop at ECS Tuning | |||||
| 12 | Stopper plug-in socket | 1 | 09/1996 | 61349316116 | Shop at ECS Tuning | |||||
| only applies to fax machine | ||||||||||
| 13 | Center console switch cover | GRAU | 1 | 09/1998 | 51168247815 | $8.83 | ENDED | Shop at ECS Tuning | ||
| 13 | Center console switch cover | SCHWARZ | 1 | 09/1998 | 51168247816 | $10.36 | ENDED | Shop at ECS Tuning | ||
| 13 | Center console switch cover | MARINEBLAU | 1 | 09/1998 | 51168247817 | $8.83 | ENDED | Shop at ECS Tuning | ||
| 13 | Center console switch cover | SANDBEIGE | 1 | 09/1998 | 51168247818 | $10.36 | ENDED | Shop at ECS Tuning | ||
| 13 | Center console switch cover | LAVENDELGRAU | 1 | 09/1998 | 51168247819 | $8.83 | ENDED | Shop at ECS Tuning | ||
| 13 | Center console switch cover | DUNKELGRUEN | 1 | 09/1998 | 51168247820 | $8.83 | ENDED | Shop at ECS Tuning | ||
| 13 | Center console switch cover | PEARLBEIGE | 1 | 09/1998 | 51168254081 | $8.83 | ENDED | Shop at ECS Tuning | ||
| For vehicles with TV and fax machine |
=Yes |
|||||||||
| 13 | Center console switch cover | GRAU | 1 | 09/1998 | 51168247703 | $8.83 | ENDED | Shop at ECS Tuning | ||
| 13 | Center console switch cover | SCHWARZ | 1 | 09/1998 | 51168247705 | $8.83 | Shop at ECS Tuning | |||
| 13 | Center console switch cover | MARINEBLAU | 1 | 09/1998 | 51168247707 | $8.83 | ENDED | Shop at ECS Tuning | ||
| 13 | Center console switch cover | SANDBEIGE | 1 | 09/1998 | 51168247711 | $9.27 | Shop at ECS Tuning | |||
| 13 | Center console switch cover | LAVENDELGRAU | 1 | 09/1998 | 51168247713 | $8.83 | ENDED | Shop at ECS Tuning | ||
| 13 | Center console switch cover | DUNKELGRUEN | 1 | 09/1998 | 51168247715 | $8.83 | ENDED | Shop at ECS Tuning | ||
| 13 | Center console switch cover | PEARLBEIGE | 1 | 09/1998 | 51168254080 | $9.17 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Rear display screen and TV |
S603A=Yes =Yes |
|||||||||
| 13 | Center console switch cover | GRAU | 1 | 51168212380 | $9.27 | Shop at ECS Tuning | ||||
| 13 | Center console switch cover | SCHWARZ | 1 | 51168212381 | $9.27 | Shop at ECS Tuning | ||||
| 13 | Center console switch cover | MARINEBLAU | 1 | 51168212382 | $9.27 | ENDED | Shop at ECS Tuning | |||
| 13 | Center console switch cover | SANDBEIGE | 1 | 51168212383 | $9.27 | Shop at ECS Tuning | ||||
| 13 | Center console switch cover | LAVENDELGRAU | 1 | 51168212384 | $8.83 | ENDED | Shop at ECS Tuning | |||
| 13 | Center console switch cover | DUNKELGRUEN | 1 | 51168212385 | $8.83 | ENDED | Shop at ECS Tuning | |||
| 13 | Center console switch cover | PASTELLGRUEN | 1 | 51168212386 | $8.83 | ENDED | Shop at ECS Tuning | |||
| 13 | Center console switch cover | PEARLBEIGE | 1 | 09/1998 | 51168254079 | $8.83 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Rear display screen |
S603A=Yes |
|||||||||
| 14 | Cover, monitor in the rear | NUSSBAUM | 1 | 03/2000 | 65506900787 | $202.00 | ENDED, +core | Shop at ECS Tuning | ||
| 14 | Cover, monitor in the rear | ERLE GRAFIK | 1 | 03/2000 | 65506900788 | $202.00 | ENDED, +core | Shop at ECS Tuning | ||
| 14 | Cover, monitor in the rear | VAVONA | 1 | 03/2000 | 65506900789 | $202.00 | ENDED, +core | Shop at ECS Tuning | ||
| 14 | Cover, monitor in the rear | ERLE BORDEAUX | 1 | 03/2000 | 65506906506 | $202.00 | ENDED, +core | Shop at ECS Tuning | ||
| 14 | Cover, monitor in the rear | ESCHE GRAU | 1 | 03/2000 | 65506906507 | $202.00 | ENDED, +core | Shop at ECS Tuning | ||
| 14 | Cover, monitor in the rear | BIRKE ANTHRAZIT | 1 | 03/2000 | 65507900063 | $202.00 | ENDED, +core | Shop at ECS Tuning | ||
| 15 | Mount, monitor in the rear | SCHWARZ | 1 | 03/2000 | 65508386438 | $362.70 | ENDED | Shop at ECS Tuning | ||
| 15 | Mount, monitor in the rear | GRAU | 1 | 03/2000 | 65508386439 | $362.70 | ENDED | Shop at ECS Tuning | ||
| 15 | Mount, monitor in the rear | SANDBEIGE | 1 | 03/2000 | 65508386440 | $362.70 | ENDED | Shop at ECS Tuning | ||
| 15 | Mount, monitor in the rear | MARINEBLAU | 1 | 03/2000 | 65508386441 | $362.70 | ENDED | Shop at ECS Tuning | ||
| 15 | Mount, monitor in the rear | ENGLISCHGRUEN | 1 | 03/2000 | 65508386442 | $362.70 | ENDED | Shop at ECS Tuning | ||
| 15 | Mount, monitor in the rear | LAVENDELGRAU | 1 | 03/2000 | 65508386443 | $362.70 | ENDED | Shop at ECS Tuning | ||
| 15 | Mount, monitor in the rear | PEARLBEIGE | 1 | 03/2000 | 65508386444 | $362.70 | ENDED | Shop at ECS Tuning | ||
