Center console for BMW 7 Series E38 750iLP (2001)

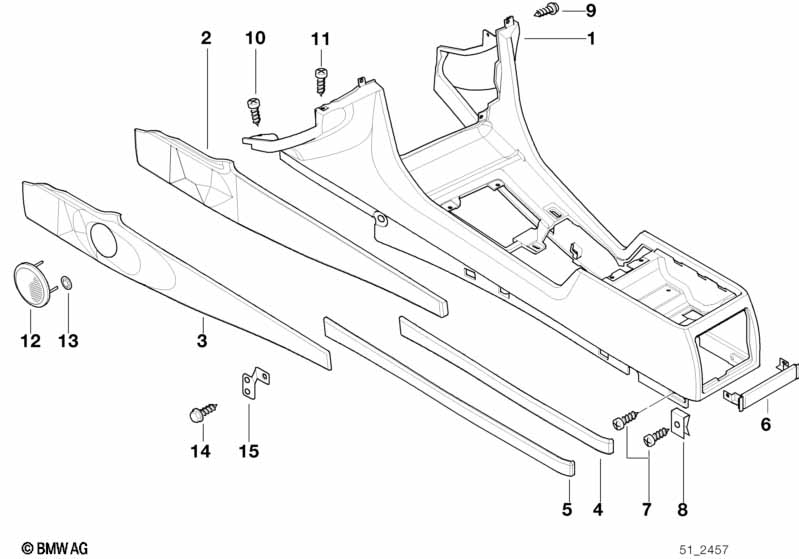

This Center console technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with All leather equipment Montana |
=Yes |
|||||||||
| 01 | Center console | GRAU | 1 | 51168192639 | $880.62 | ENDED | Shop at ECS Tuning | |||
| 01 | Center console | SCHWARZ | 1 | 51168192640 | $880.62 | ENDED | Shop at ECS Tuning | |||
| 01 | Center console | MARINEBLAU | 1 | 51168192641 | $823.05 | ENDED | Shop at ECS Tuning | |||
| 01 | Center console | SANDBEIGE | 1 | 51168192642 | $880.62 | ENDED | Shop at ECS Tuning | |||
| 01 | Center console | LAVENDELGRAU | 1 | 51168192643 | $880.62 | ENDED | Shop at ECS Tuning | |||
| 01 | Center console | PASTELLGRUEN | 1 | 51168192644 | $823.05 | ENDED | Shop at ECS Tuning | |||
| 01 | Center console | DUNKELGRUEN | 1 | 51168192645 | $823.05 | ENDED | Shop at ECS Tuning | |||
| 01 | Center console | PEARLBEIGE | 1 | 09/1998 | 51168252531 | $823.05 | ENDED | Shop at ECS Tuning | ||
| For vehicles with All leather equipment Montana ONLY APPL.TO REAR CENTRE CONSOLE/SA 533 |
=Yes |
|||||||||
| 01 | Center console | GRAU | 1 | 51168206222 | $823.05 | ENDED | Shop at ECS Tuning | |||
| 01 | Center console | SCHWARZ | 1 | 51168206223 | $823.05 | ENDED | Shop at ECS Tuning | |||
| 01 | Center console | MARINEBLAU | 1 | 51168206224 | $823.05 | ENDED | Shop at ECS Tuning | |||
| 01 | Center console | SANDBEIGE | 1 | 51168206225 | $823.05 | ENDED | Shop at ECS Tuning | |||
| 01 | Center console | LAVENDELGRAU | 1 | 51168206226 | $823.05 | ENDED | Shop at ECS Tuning | |||
| 01 | Center console | PASTELLGRUEN | 1 | 51168206227 | $823.05 | ENDED | Shop at ECS Tuning | |||
| 01 | Center console | DUNKELGRUEN | 1 | 51168206228 | $823.05 | ENDED | Shop at ECS Tuning | |||
| 01 | Center console | PEARLBEIGE | 1 | 09/1998 | 51168252533 | $823.05 | ENDED | Shop at ECS Tuning | ||
| 02 | Front left center console trim panel | PASTELLGRUEN | 1 | 51168184673 | $54.13 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Front right center console trim panel | PASTELLGRUEN | 1 | 51168184674 | $54.13 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Front left center console trim panel | GRAU | 1 | 51168235485 | $64.32 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Front right center console trim panel | GRAU | 1 | 51168235486 | $64.32 | +core | Shop at ECS Tuning | |||
| 02 | Front left center console trim panel | ANTHRAZIT | 1 | 51168235487 | $64.32 | +core | Shop at ECS Tuning | |||
| 02 | Front right center console trim panel | ANTHRAZIT | 1 | 51168235488 | $64.32 | +core | Shop at ECS Tuning | |||
| 02 | Front left center console trim panel | MARINEBLAU | 1 | 51168235489 | $54.13 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Front right center console trim panel | MARINEBLAU | 1 | 51168235490 | $64.32 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Front left center console trim panel | SANDBEIGE | 1 | 51168235491 | $64.32 | +core | Shop at ECS Tuning | |||
| 02 | Front right center console trim panel | SANDBEIGE | 1 | 51168235492 | $64.32 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Front left center console trim panel | LAVENDELGRAU | 1 | 51168235493 | $64.32 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Front right center console trim panel | LAVENDELGRAU | 1 | 51168235494 | $54.13 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Front left center console trim panel | DUNKELGRUEN | 1 | 51168235495 | $54.13 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Front right center console trim panel | DUNKELGRUEN | 1 | 51168235496 | $54.13 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 03 | Front left center console trim panel | PASTELLGRUEN | 1 | 51168131937 | $55.24 | ENDED, +core | Shop at ECS Tuning | |||
| ONLY APPLIES TO SA 175/SA 534 | ||||||||||
| 04 | Rear left center console trim panel | PASTELLGRUEN | 1 | 51168184701 | $30.13 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Rear right center console trim panel | PASTELLGRUEN | 1 | 51168184702 | $47.71 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Rear left center console trim panel | GRAU | 1 | 51168235509 | $53.39 | +core | Shop at ECS Tuning | |||
| 04 | Rear right center console trim panel | GRAU | 1 | 51168235510 | $53.39 | +core | Shop at ECS Tuning | |||
| 04 | Rear left center console trim panel | ANTHRAZIT | 1 | 51168235511 | $53.39 | +core | Shop at ECS Tuning | |||
| 04 | Rear right center console trim panel | ANTHRAZIT | 1 | 51168235512 | $53.39 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Rear left center console trim panel | MARINEBLAU | 1 | 51168235513 | $53.39 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Rear right center console trim panel | MARINEBLAU | 1 | 51168235514 | $53.39 | +core | Shop at ECS Tuning | |||
| 04 | Rear left center console trim panel | SANDBEIGE | 1 | 51168235515 | $28.49 | +core | Shop at ECS Tuning | |||
| 04 | Rear right center console trim panel | SANDBEIGE | 1 | 51168235516 | $53.39 | +core | Shop at ECS Tuning | |||
| 04 | Rear left center console trim panel | LAVENDELGRAU | 1 | 51168235517 | $53.39 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Rear right center console trim panel | LAVENDELGRAU | 1 | 51168235518 | $47.71 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Rear left center console trim panel | DUNKELGRUEN | 1 | 51168235519 | $53.39 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Rear right center console trim panel | DUNKELGRUEN | 1 | 51168235520 | $47.71 | ENDED, +core | Shop at ECS Tuning | |||
| ONLY APPL.TO REAR CENTRE CONSOLE/SA 533 | ||||||||||
| 05 | Rear right center console trim panel | PASTELLGRUEN | 1 | 51168206268 | $47.71 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Rear left center console trim panel | PASTELLGRUEN | 1 | 51168206269 | $47.71 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Rear left center console trim panel | GRAU | 1 | 51168235521 | $57.34 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Rear right center console trim panel | GRAU | 1 | 51168235522 | $57.34 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Rear left center console trim panel | ANTHRAZIT | 1 | 51168235523 | $57.34 | +core | Shop at ECS Tuning | |||
| 05 | Rear right center console trim panel | ANTHRAZIT | 1 | 51168235524 | $57.34 | +core | Shop at ECS Tuning | |||
| 05 | Rear left center console trim panel | MARINEBLAU | 1 | 51168235525 | $51.34 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Rear right center console trim panel | MARINEBLAU | 1 | 51168235526 | $51.34 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Rear left center console trim panel | SANDBEIGE | 1 | 51168235527 | $57.34 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Rear right center console trim panel | SANDBEIGE | 1 | 51168235528 | $57.34 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Rear left center console trim panel | LAVENDELGRAU | 1 | 51168235529 | $51.34 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Rear right center console trim panel | LAVENDELGRAU | 1 | 51168235530 | $51.34 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Rear left center console trim panel | DUNKELGRUEN | 1 | 51168235531 | $51.34 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Rear right center console trim panel | DUNKELGRUEN | 1 | 51168235532 | $51.34 | ENDED, +core | Shop at ECS Tuning | |||
| 07 | Fillister head self-tapping screw | ST4,2X13-Z2 | 4 | 07119907939 | $0.11 | Shop at ECS Tuning | ||||
| 08 | C-clip nut | 2 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 09 | Fillister head self-tapping screw | ISA ST4.2X13 | 1 | 07147117570 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Fillister head self-tapping screw | ST4,2X16-Z2 | 1 | 07119907948 | $0.18 | Shop at ECS Tuning | ||||
| 11 | Sheet metal screw | ST4,2X19-U2-C-H | 2 | 07119904176 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Loudspeaker cover | GRAU | 2 | 51168131940 | $17.30 | ENDED | Shop at ECS Tuning | |||
| 12 | Loudspeaker cover | SCHWARZ | 2 | 51168131941 | $17.30 | ENDED | Shop at ECS Tuning | |||
| 12 | Loudspeaker cover | MARINEBLAU | 2 | 51168131942 | $17.30 | ENDED | Shop at ECS Tuning | |||
| 12 | Loudspeaker cover | SANDBEIGE | 2 | 51168131943 | $17.30 | ENDED | Shop at ECS Tuning | |||
| 12 | Loudspeaker cover | LAVENDELGRAU | 2 | 51168131944 | $17.30 | ENDED | Shop at ECS Tuning | |||
| 12 | Loudspeaker cover | LAVENDELGRAU | 2 | 51168131945 | $17.30 | ENDED | Shop at ECS Tuning | |||
| 12 | Loudspeaker cover | PASTELLGRUEN | 2 | 51168131946 | $17.30 | ENDED | Shop at ECS Tuning | |||
| 13 | Spring nut | 2 | 64111364257 | $0.62 | Shop at ECS Tuning | |||||
| 14 | Hex head screw | 1 | 51168124671 | $1.25 | Shop at ECS Tuning | |||||
| 15 | Bracket, center console | 1 | 51168177656 | $0.93 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
