Glazing for BMW 5 Series E39 528i (2000)

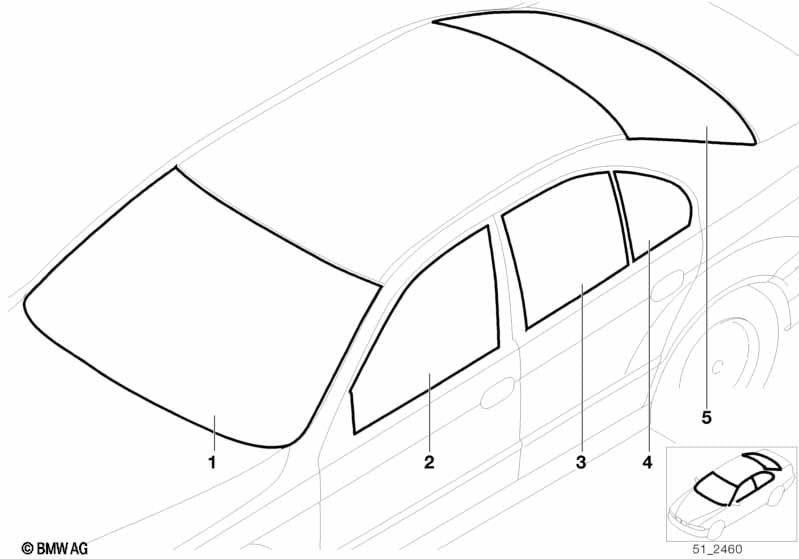

This Glazing technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 01 | Green windscreen, green shade band | 1 | 09/2003 | 51318172406 | $463.80 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Green windshield | 1 | 09/2003 | 51318172407 | $422.22 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 09/2003 | 83192289285 | Shop at ECS Tuning | ||||
| -- | sealing | 1 | 09/2003 | 51488224782 | $9.05 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Climate comfort windscreen |
L8AAA=Yes S358A=Yes |
|||||||||
| 01 | Wndshld,infrared,green wedge lamin.green | 1 | 09/2003 | 51318238668 | $673.24 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 09/2003 | 83192180001 | Shop at ECS Tuning | ||||
| -- | sealing | 1 | 09/2003 | 51488224782 | $9.05 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Protective glazing |
L8AAA=No S357A=Yes |
|||||||||
| 01 | Green windshield | 1 | 09/1996 | 09/2001 | 51318172734 | $594.27 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 01 | Green windscreen, green shade band | 1 | 09/1996 | 09/2001 | 51318195045 | $651.63 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 09/1996 | 09/2001 | 83192289285 | Shop at ECS Tuning | |||
| -- | sealing | 1 | 09/1996 | 09/2001 | 51488224782 | $9.05 | Shop at ECS Tuning | |||
| For vehicles with National version Great Britain and Rain sensor |
L812A=Yes =Yes |
|||||||||
| 01 | Green windshield | RS | 1 | 03/1999 | 09/2001 | 51318259317 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 03/1999 | 09/2001 | 83192289285 | Shop at ECS Tuning | |||
| -- | sealing | 1 | 03/1999 | 09/2001 | 51488224782 | $9.05 | Shop at ECS Tuning | |||
| For vehicles with National version China and Rain sensor |
L8AAA=Yes =Yes |
|||||||||
| 01 | Green windscreen, green shade band | RS | 1 | 03/1999 | 09/2001 | 51318259316 | $510.33 | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| For vehicles with National version China and Climate comfort windscreen and Rain sensor |
L8AAA=Yes S358A=Yes =Yes |
|||||||||
| 01 | Wndshld,infrared,green wedge lamin.green | RS | 1 | 03/1999 | 09/2001 | 51318259324 | $721.45 | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 03/1999 | 09/2001 | 83192180001 | Shop at ECS Tuning | |||
| -- | sealing | 1 | 03/1999 | 09/2001 | 51488224782 | $9.05 | Shop at ECS Tuning | |||
| For vehicles with National version China and Protective glazing and Rain sensor |
L8AAA=No S357A=Yes =Yes |
|||||||||
| 01 | Green windshield | RS | 1 | 03/1999 | 09/2001 | 51318259318 | $633.35 | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| 01 | Green windscreen, green shade band | RS | 1 | 03/1999 | 09/2001 | 51318259323 | $696.53 | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 03/1999 | 09/2001 | 83192289285 | Shop at ECS Tuning | |||
| -- | sealing | 1 | 03/1999 | 09/2001 | 51488224782 | $9.05 | Shop at ECS Tuning | |||
| 02 | Side window, green, left | 1 | 51328159169 | $125.27 | Shop at ECS Tuning | |||||
| 02 | Side window green right | 1 | 51328159170 | $125.27 | Shop at ECS Tuning | |||||
| For vehicles with Insulating double-glazing |
S352A=Yes |
|||||||||
| 02 | Side window, green, left | 1 | 51328160981 | $354.83 | ENDED | Shop at ECS Tuning | ||||
| 02 | Side window green right | 1 | 51328160982 | $354.83 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Protective glazing |
S357A=Yes |
|||||||||
| 02 | Side window, green, left | 1 | 09/1996 | 51338196719 | $1610.32 | Shop at ECS Tuning | ||||
| 02 | Side window green right | 1 | 09/1996 | 51338196720 | $1610.32 | ENDED | Shop at ECS Tuning | |||
| 03 | Side window, green, left | 1 | 51348159171 | $118.84 | Shop at ECS Tuning | |||||
| 03 | Side window green right | 1 | 51348159172 | $118.84 | Shop at ECS Tuning | |||||
| For vehicles with Insulating double-glazing |
S352A=Yes |
|||||||||
| 03 | Side window, green, left | 1 | 51348160983 | $289.76 | Shop at ECS Tuning | |||||
| 03 | Side window green right | 1 | 51348160984 | $289.76 | Shop at ECS Tuning | |||||
| For vehicles with Protective glazing |
S357A=Yes |
|||||||||
| 03 | Side window, green, left | 1 | 09/1996 | 51348196721 | $1410.17 | Shop at ECS Tuning | ||||
| 03 | Side window green right | 1 | 09/1996 | 51348196722 | $1410.17 | Shop at ECS Tuning | ||||
| For vehicles with Individual sunshade glazing |
S761A=Yes |
|||||||||
| 03 | Side window, black left | 1 | 09/2000 | 51348185811 | $177.80 | Shop at ECS Tuning | ||||
| 03 | Side window, black right | 1 | 09/2000 | 51348185812 | $177.80 | Shop at ECS Tuning | ||||
| For vehicles with Insulating double-glazing and Individual sunshade glazing |
S352A=Yes S761A=Yes |
|||||||||
| 03 | Side window, black left | 1 | 09/2000 | 51348185799 | $376.09 | Shop at ECS Tuning | ||||
| 03 | Side window, black right | 1 | 09/2000 | 51348185800 | $385.76 | Shop at ECS Tuning | ||||
| 04 | Fixed door window, green, left | 1 | 51348159173 | $66.03 | Shop at ECS Tuning | |||||
| 04 | Fixed door window, green, right | 1 | 51348159174 | $66.03 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Insulating double-glazing |
S352A=Yes |
|||||||||
| 04 | Fixed door window, green, left | 1 | 51348160985 | $193.48 | Shop at ECS Tuning | |||||
| 04 | Fixed door window, green, right | 1 | 51348160986 | $193.48 | Shop at ECS Tuning | |||||
| For vehicles with Protective glazing |
S357A=Yes |
|||||||||
| 04 | Fixed door window, green, left | 1 | 09/1996 | 51348196723 | $539.17 | Shop at ECS Tuning | ||||
| 04 | Fixed door window, green, right | 1 | 09/1996 | 51348196724 | $539.17 | Shop at ECS Tuning | ||||
| For vehicles with Individual sunshade glazing |
S761A=Yes |
|||||||||
| 04 | Fixed door window, black, left | 1 | 09/2000 | 51348185821 | $161.03 | Shop at ECS Tuning | ||||
| 04 | Fixed door window, black, right | 1 | 09/2000 | 51348185822 | $161.03 | Shop at ECS Tuning | ||||
| For vehicles with Insulating double-glazing and Individual sunshade glazing |
S352A=Yes S761A=Yes |
|||||||||
| 04 | Fixed door window, black, left | 1 | 09/2000 | 51348185807 | $165.17 | Shop at ECS Tuning | ||||
| 04 | Fixed door window, black, right | 1 | 09/2000 | 51348185808 | $193.48 | Shop at ECS Tuning | ||||
| For vehicles with National version China |
L8AAA=No |
|||||||||
| 05 | Rear window green | 1 | 51318172414 | $405.28 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| For vehicles with National version China and Individual sunshade glazing |
L8AAA=No S761A=Yes |
|||||||||
| 05 | Rear window, black | 1 | 09/2000 | 51318172613 | $525.94 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 09/2000 | 83192289285 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Protective glazing |
L8AAA=No S357A=Yes |
|||||||||
| 05 | Rear window green | 1 | 09/1996 | 51318172750 | $1215.83 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Repair flat rate, window, cold, 1 hr. | SET | 1 | 09/1996 | 83192289285 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
