Trim cover, front for BMW 5 Series E39 528i (2000)
This Trim cover, front technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim cover, bumper, primed, front | 1 | 09/2000 | 51118208313 | $447.15 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 09/2000 | 51112294577 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Headlight wipe/wash/Intensive cleaning or Headlight cleaning system |
S500A=Yes S502A=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | 1 | 09/2000 | 51117030921 | $470.32 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 09/2000 | 51112294577 | ENDED | Shop at ECS Tuning | |||
| 02 | Gasket | 2125MM | 1 | 09/2000 | 51118191149 | $14.67 | Shop at ECS Tuning | |||

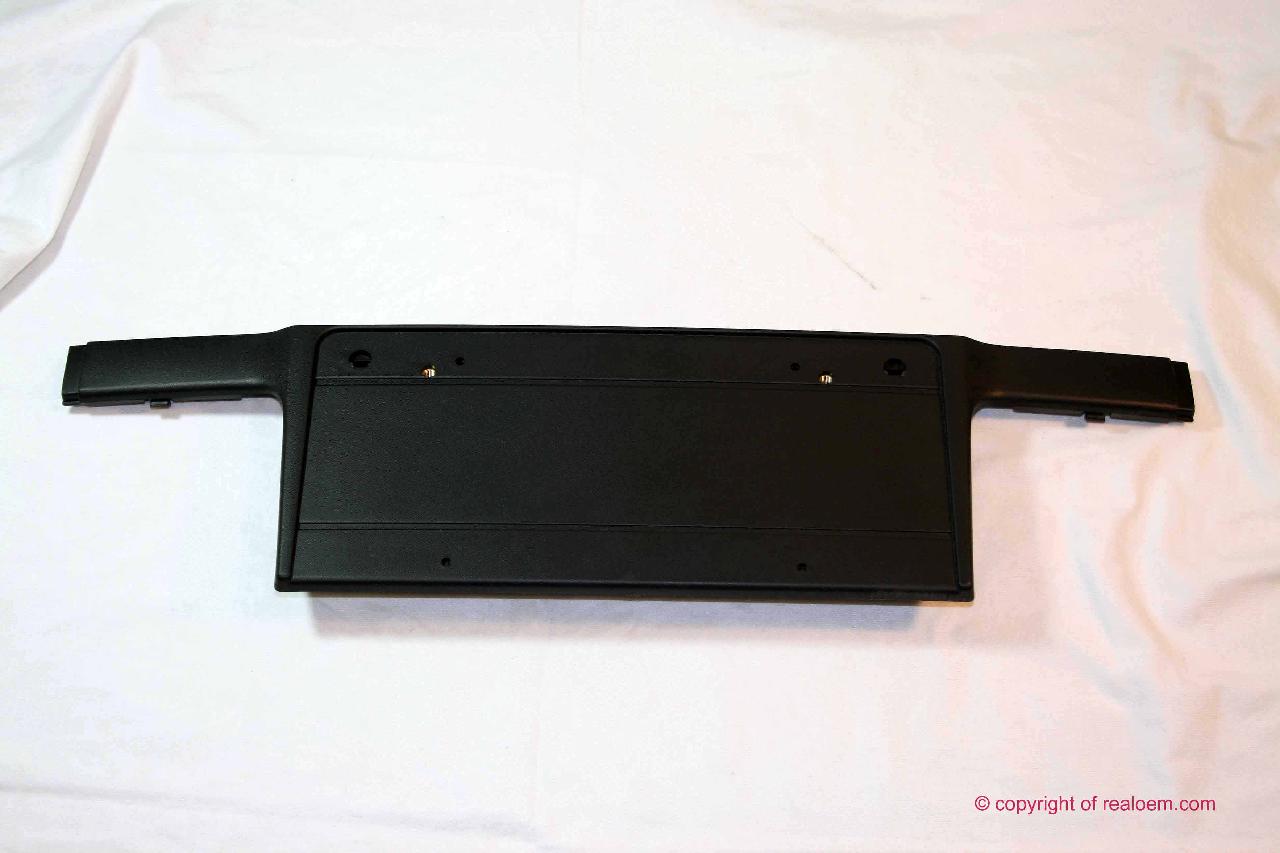

| 05 | Base | 1 | 09/2000 | 51118226564 | $24.00 | Shop at ECS Tuning | ||||
| For vehicles with Shadow-Line |
S339A=Yes |
|||||||||
| 05 | Base | 1 | 09/2000 | 51118174849 | $24.88 | Shop at ECS Tuning | ||||
| For vehicles with Shadow-Line |
=No |
|||||||||
| 06 | Cover | 1 | 09/2000 | 51118226558 | $23.10 | Shop at ECS Tuning | ||||
| 07 | Protective Mouldings | 1 | 09/2000 | 51118226565 | $23.45 | Shop at ECS Tuning | ||||
| For vehicles with Shadow-Line |
=Yes |
|||||||||

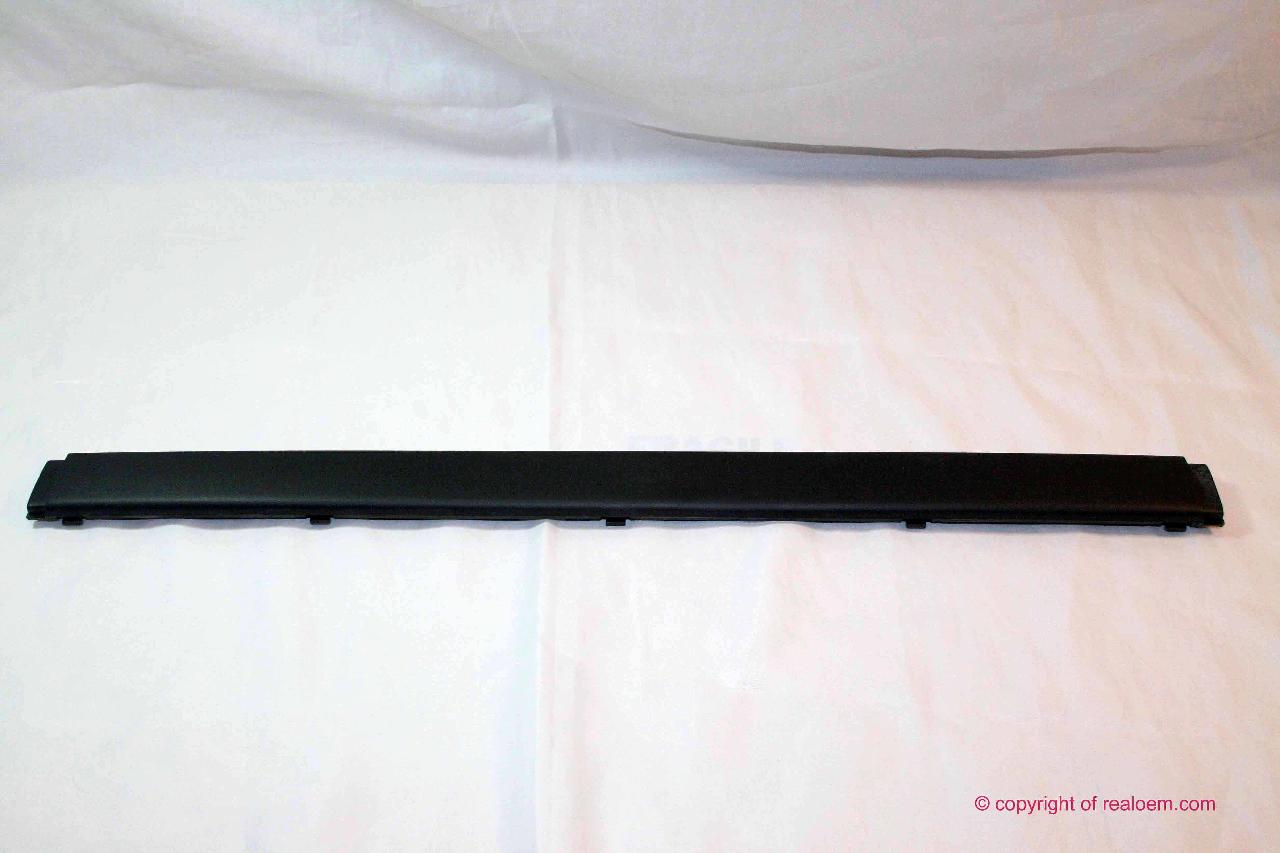

| 07 | Protective Mouldings | 1 | 09/2000 | 51118174850 | $23.45 | Shop at ECS Tuning | ||||
| For vehicles with Shadow-Line |
=No |
|||||||||
| 08 | Cover | 1 | 09/2000 | 51118226559 | $23.10 | Shop at ECS Tuning | ||||
| 10 | Moulding rocker panel front left | 1 | 09/2000 | 51118226561 | $16.55 | Shop at ECS Tuning | ||||
| 10 | Moulding rocker panel front right | 1 | 09/2000 | 51118226562 | $16.55 | Shop at ECS Tuning | ||||
| For vehicles with Shadow-Line |
S339A=Yes |
|||||||||
| 10 | Moulding rocker panel front left | 1 | 09/2000 | 51118159351 | $16.55 | Shop at ECS Tuning | ||||
| 10 | Moulding rocker panel front right | 1 | 09/2000 | 51118159352 | $16.55 | Shop at ECS Tuning | ||||
| For vehicles with Shadow-Line |
=No |
|||||||||
| 11 | Covering left | 1 | 09/2000 | 51118226555 | $23.10 | Shop at ECS Tuning | ||||
| 11 | Covering right | 1 | 09/2000 | 51118226556 | $23.10 | Shop at ECS Tuning | ||||
| 13 | Open grid | 1 | 09/2000 | 51118235671 | $57.21 | Shop at ECS Tuning | ||||
| 15 | Flap, towing eye, primed | 1 | 09/2000 | 51118212527 | $11.39 | Shop at ECS Tuning | ||||
| 15 | Flap, towing eye, painted | CODE - UNI/MET. | 1 | 09/2000 | 51119069174 | $60.75 | ENDED, +core | Shop at ECS Tuning | ||
| When ordering indicate color code | ||||||||||
| 17 | Grid, right | 1 | 09/2000 | 51118235640 | $28.63 | Shop at ECS Tuning | ||||
| 20 | Grid left | 1 | 09/2000 | 51118235673 | $28.63 | Shop at ECS Tuning | ||||
| 21 | Air brake channel front left | 1 | 09/2000 | 51118174843 | $13.21 | Shop at ECS Tuning | ||||
| 21 | Air brake channel front right | 1 | 09/2000 | 51118174844 | $13.21 | Shop at ECS Tuning | ||||
| 22 | Expanding rivet | 12 | 09/2000 | 51118174185 | $0.30 | Shop at ECS Tuning | ||||
| 24 | Alternator air duct | 1 | 09/2000 | 51118160855 | $10.26 | Shop at ECS Tuning | ||||
| 25 | Body nut | ST 4,8-8-ZNS | 4 | 09/2000 | 07129904227 | $0.27 | Shop at ECS Tuning | |||
| 26 | Clamp | 2 | 09/2000 | 51118207874 | $0.68 | Shop at ECS Tuning | ||||
| 27 | Support left | 1 | 09/2000 | 51118159361 | $4.86 | Shop at ECS Tuning | ||||
| 27 | Support right | 1 | 09/2000 | 51118159362 | $4.86 | Shop at ECS Tuning | ||||
| 28 | Hexagon sheet-metal bolt | ST6,3X16-R-U2-Z | 4 | 09/2000 | 07119905017 | $0.38 | Shop at ECS Tuning | |||
| 29 | Body nut | ST6,3-4 ZNS3 | 4 | 09/2000 | 07147144276 | $0.47 | Shop at ECS Tuning | |||
| 30 | Spoiler front | 1 | 09/2000 | 51118216706 | $23.70 | Shop at ECS Tuning | ||||
| 31 | Expanding rivet | D = 6MM | 4 | 09/2000 | 51111908077 | $0.30 | Shop at ECS Tuning | |||
| 32 | Sheet metal screw | 4,2X16 | 4 | 09/2000 | 07119904265 | Shop at ECS Tuning | ||||
| 33 | Body nut | ST4,2-3-ZNS3 | 4 | 09/2000 | 07129904221 | $0.25 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
