Exterior trim / grill for BMW 5 Series E39 528i (2000)
This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grille left | SCHWARZ | 1 | 09/2000 | 51138159315 | $58.55 | Shop at ECS Tuning | |||
| 02 | Grille right | SCHWARZ | 1 | 09/2000 | 51138159316 | $58.55 | Shop at ECS Tuning | |||
| 03 | Windshield frame cover | 1 | 51718159292 | $65.73 | Shop at ECS Tuning | |||||

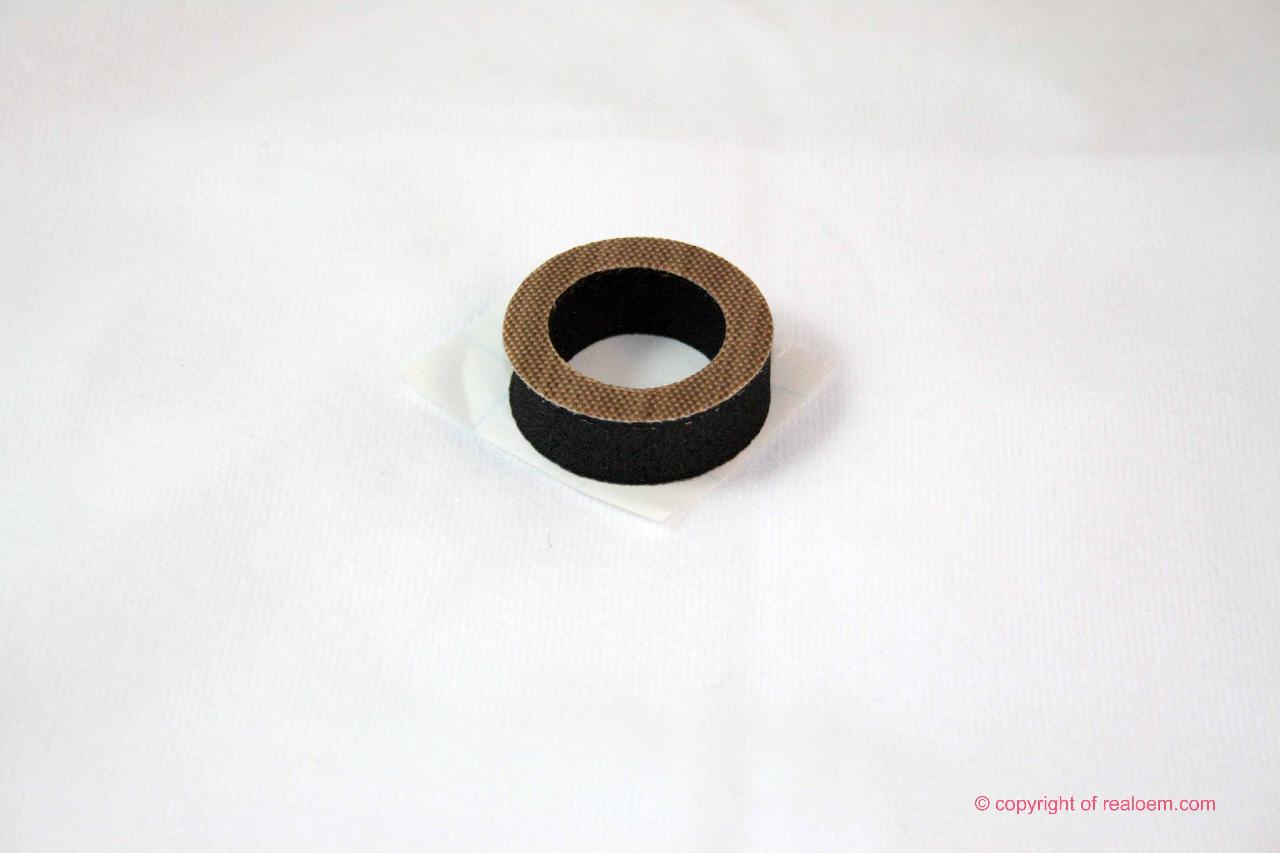

| 04 | Gasket ring | 3 | 51718205199 | $2.98 | Shop at ECS Tuning | |||||
| 05 | Expanding rivet | 8 | 51218205295 | $0.57 | Shop at ECS Tuning | |||||
| 06 | Grommet | D=9MM | 8 | 51718186501 | $0.28 | Shop at ECS Tuning | ||||

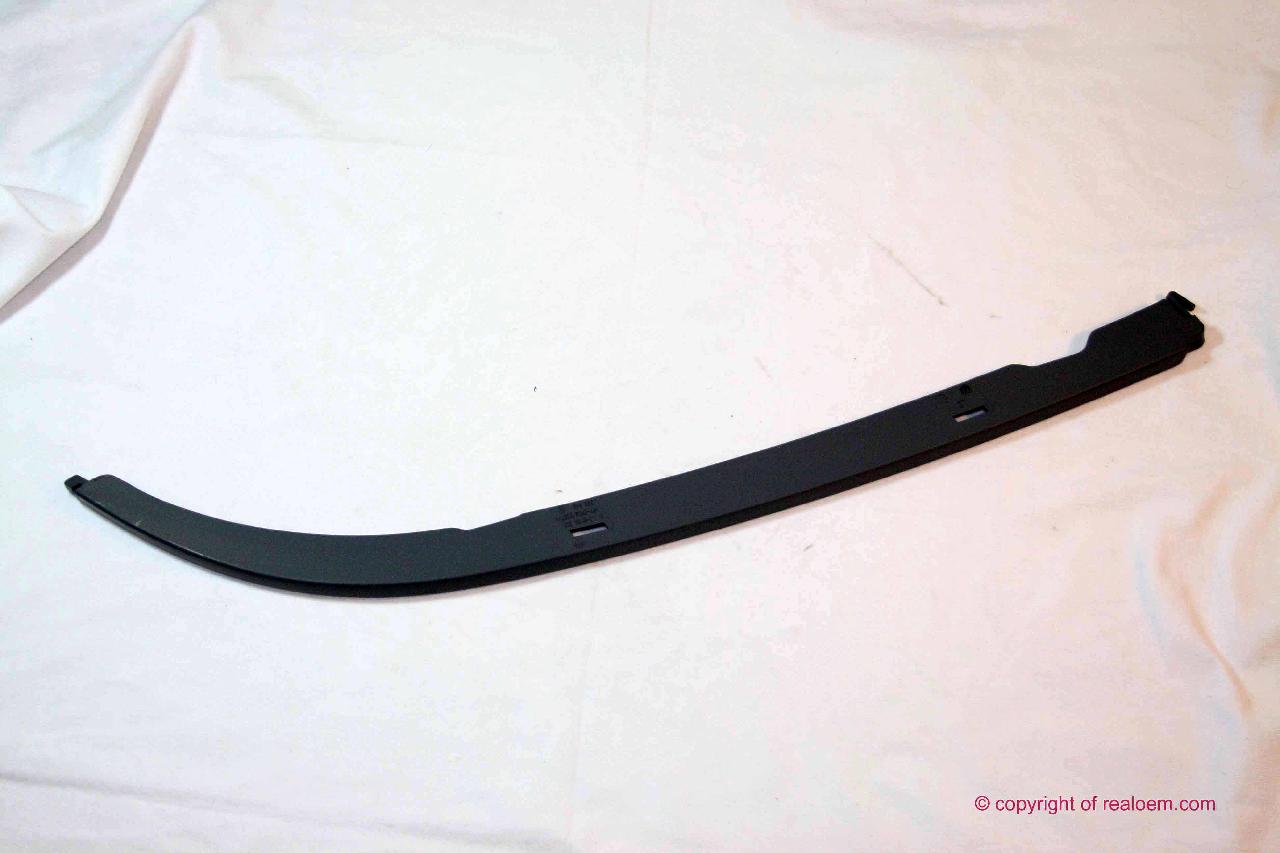

| 07 | Covering front left | GRUNDIERT | 1 | 51138168809 | $17.40 | Shop at ECS Tuning | ||||

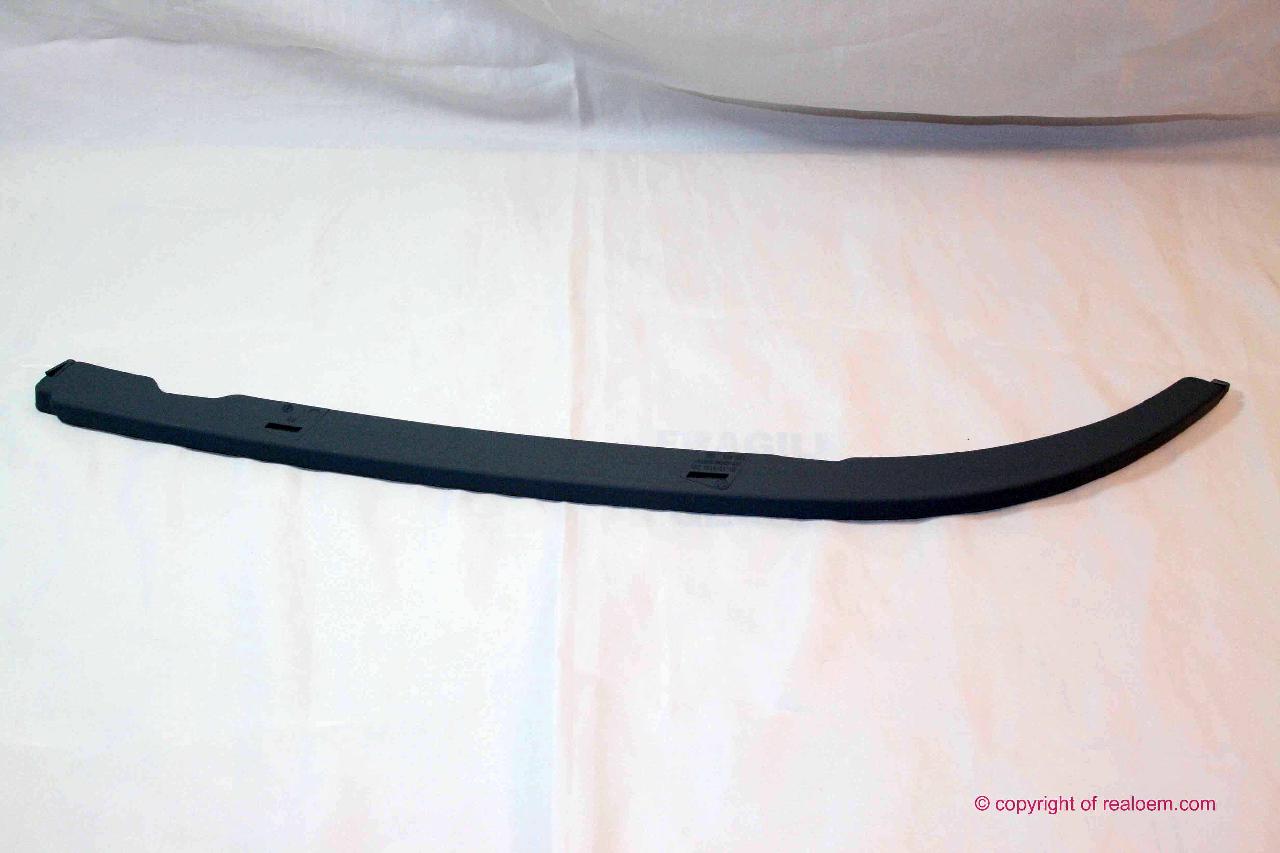

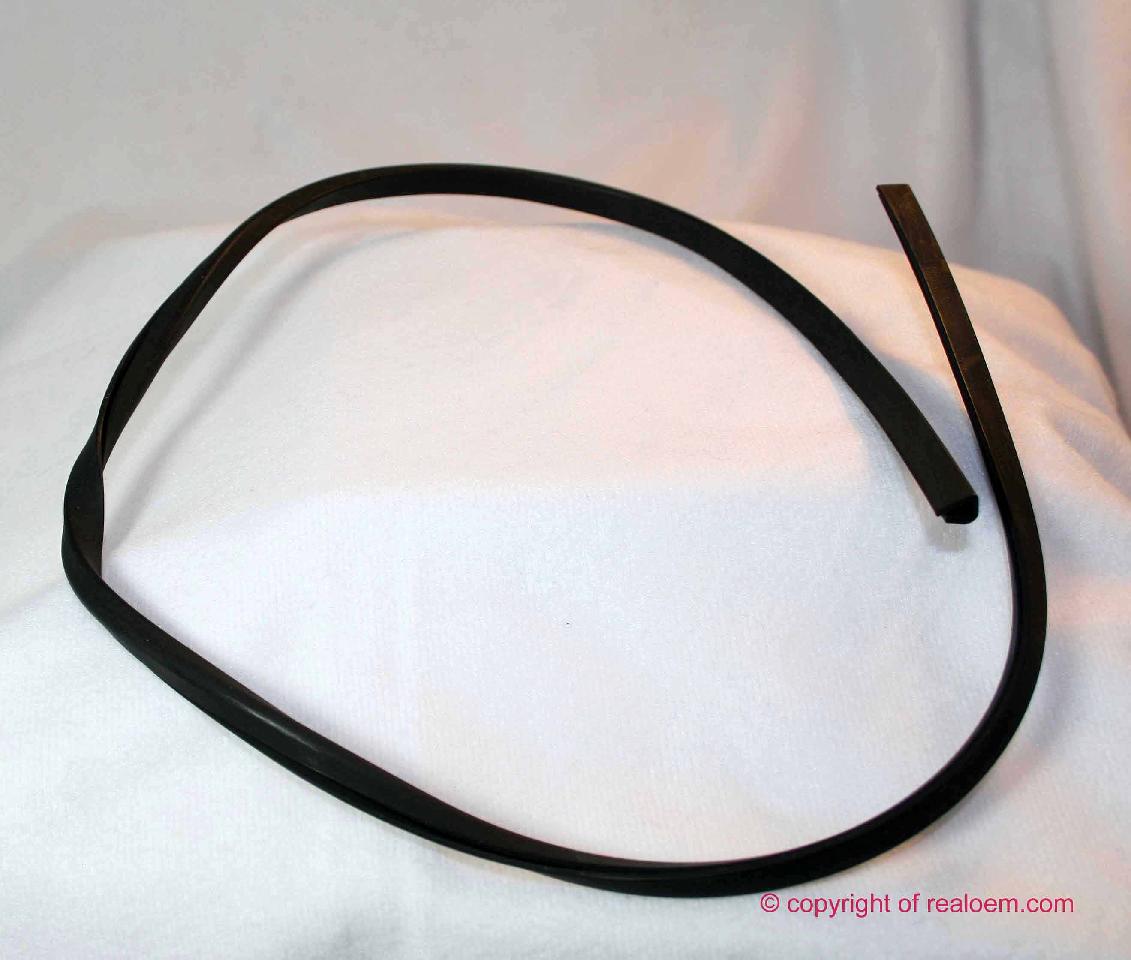

| 07 | Covering front right | GRUNDIERT | 1 | 51138168810 | $17.40 | Shop at ECS Tuning | ||||
| 07 | Covering front left | CODE - UNI/MET. | 1 | 51139069488 | $96.53 | ENDED | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 07 | Covering front right | CODE - UNI/MET. | 1 | 51139069490 | ENDED | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 08 | Synthetic strip | 1 | 51138168812 | $1.28 | ENDED | Shop at ECS Tuning | ||||

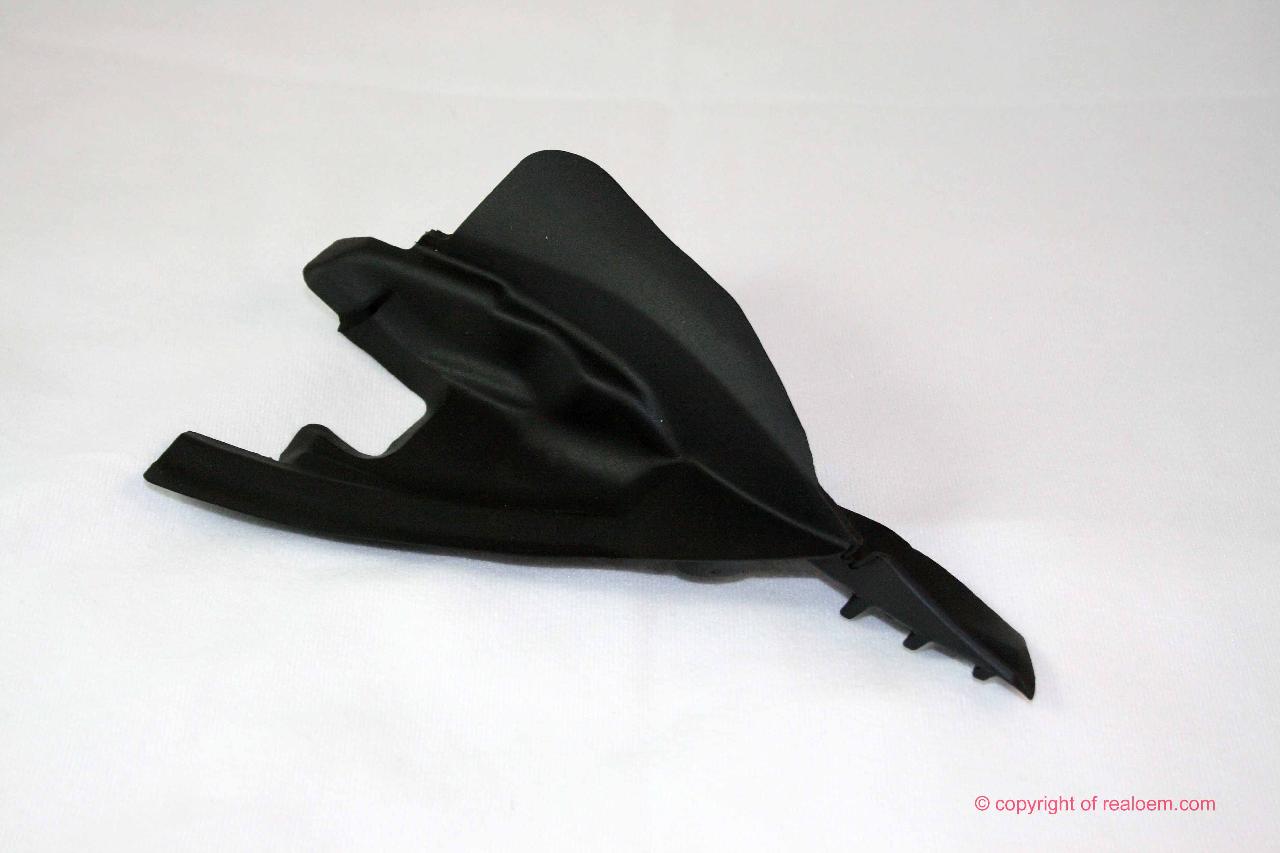

| 09 | Covering left | 1 | 51718193201 | $7.03 | Shop at ECS Tuning | |||||
| 09 | Covering right | 1 | 51718193202 | $7.03 | Shop at ECS Tuning | |||||
| 10 | Cover plug | 1 | 51717020032 | $1.45 | Shop at ECS Tuning | |||||
| 11 | Clamp | 3 | 61131925120 | $0.32 | Shop at ECS Tuning | |||||
