Exterior trim / grill for BMW 5 Series E39 528i (2000)

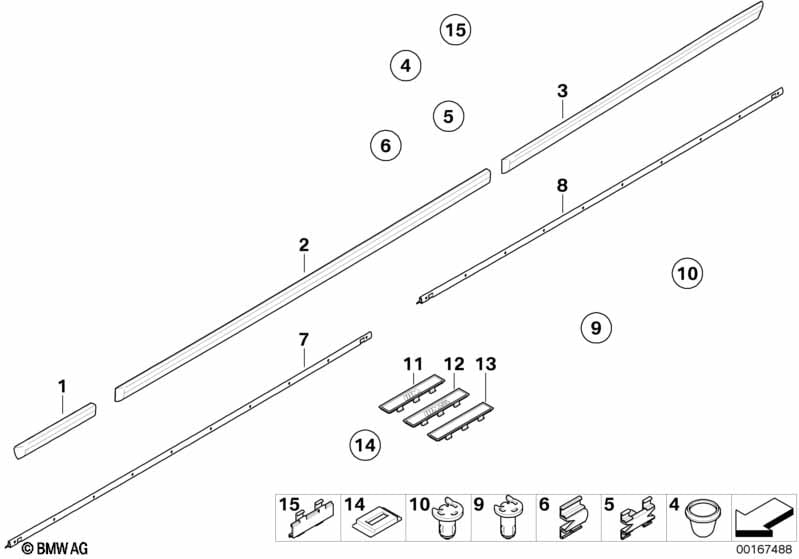

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

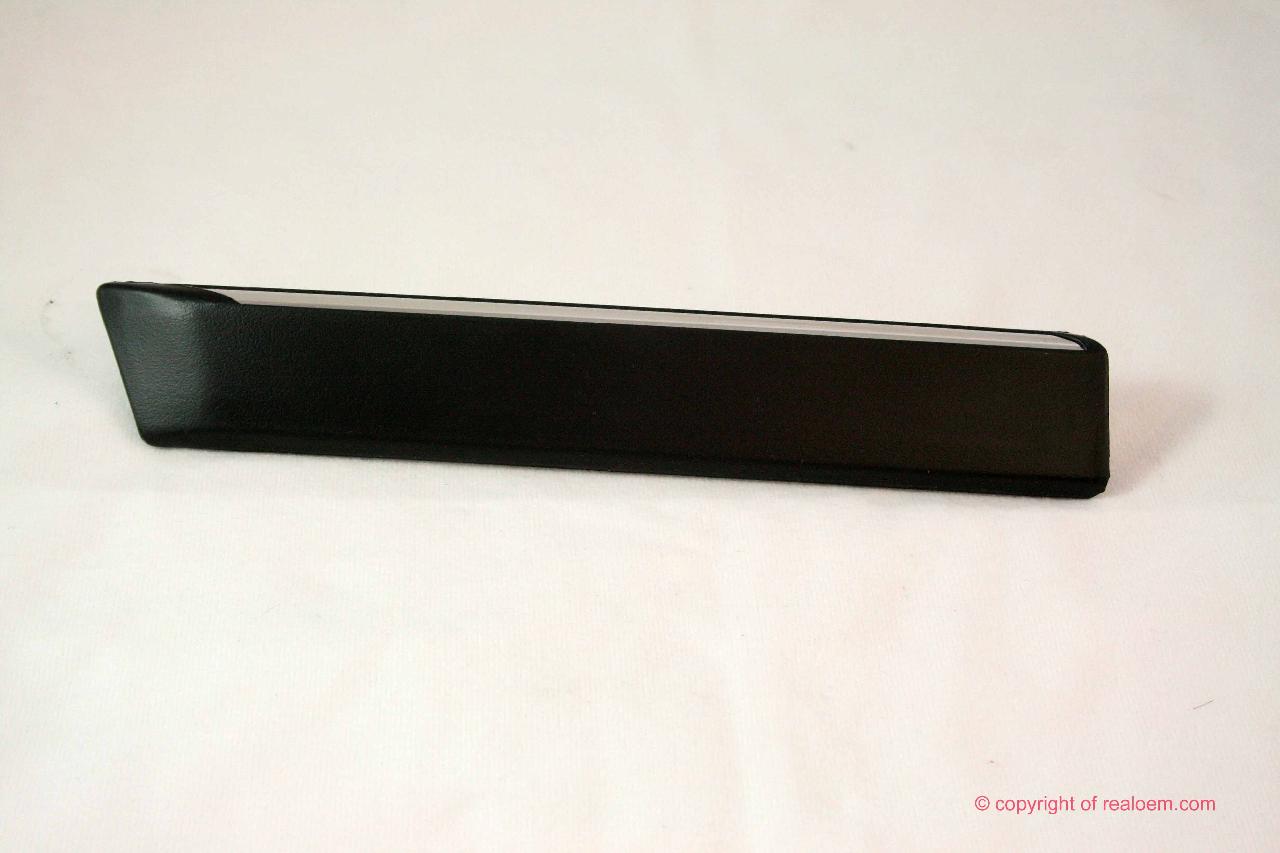

| 01 | Moulding fender front left | CHROM | 1 | 09/2000 | 51138184481 | $47.41 | Shop at ECS Tuning | |||
| 01 | Moulding fender front right | CHROM | 1 | 09/2000 | 51138184482 | $47.41 | Shop at ECS Tuning | |||
| For vehicles with Shadow-Line |
S339A=Yes |
|||||||||
| 01 | Moulding fender front left | SCHWARZ | 1 | 09/2000 | 51138159293 | $36.47 | Shop at ECS Tuning | |||
| 01 | Moulding fender front right | SCHWARZ | 1 | 09/2000 | 51138159294 | $36.47 | Shop at ECS Tuning | |||
| 02 | Moulding door front left | CHROM | 1 | 09/2000 | 51138184477 | $72.91 | Shop at ECS Tuning | |||

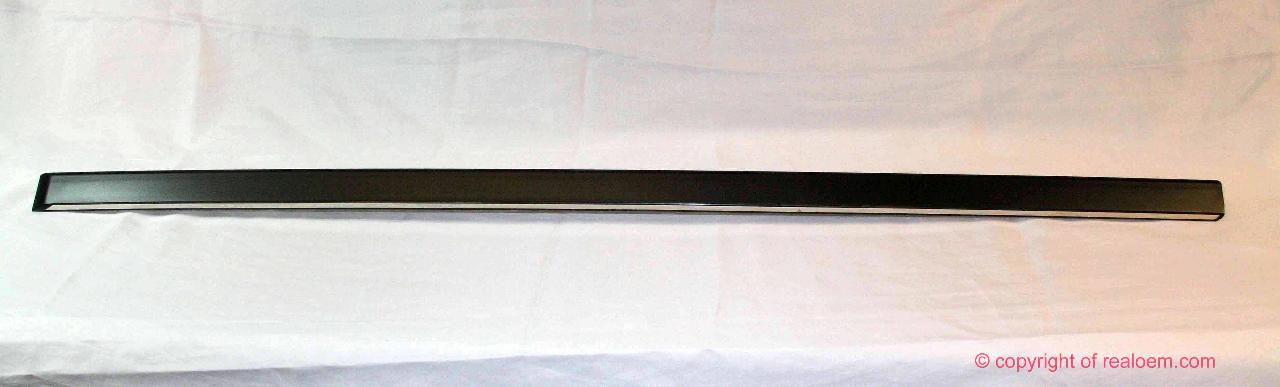

| 02 | Moulding door front right | CHROM | 1 | 09/2000 | 51138184478 | $72.91 | Shop at ECS Tuning | |||
| For vehicles with Shadow-Line |
S339A=Yes |
|||||||||
| 02 | Moulding door front left | SCHWARZ | 1 | 09/2000 | 51138159295 | $56.09 | Shop at ECS Tuning | |||
| 02 | Moulding door front right | SCHWARZ | 1 | 09/2000 | 51138159296 | $56.09 | Shop at ECS Tuning | |||
| 03 | Moulding door rear left | CHROM | 1 | 09/2000 | 51138184479 | $69.28 | Shop at ECS Tuning | |||
| 03 | Moulding door rear right | CHROM | 1 | 09/2000 | 51138184480 | $69.28 | Shop at ECS Tuning | |||
| For vehicles with Shadow-Line |
S339A=Yes |
|||||||||
| 03 | Moulding door rear left | SCHWARZ | 1 | 09/2000 | 51138159297 | $53.28 | Shop at ECS Tuning | |||
| 03 | Moulding door rear right | SCHWARZ | 1 | 09/2000 | 51138159298 | $53.28 | Shop at ECS Tuning | |||

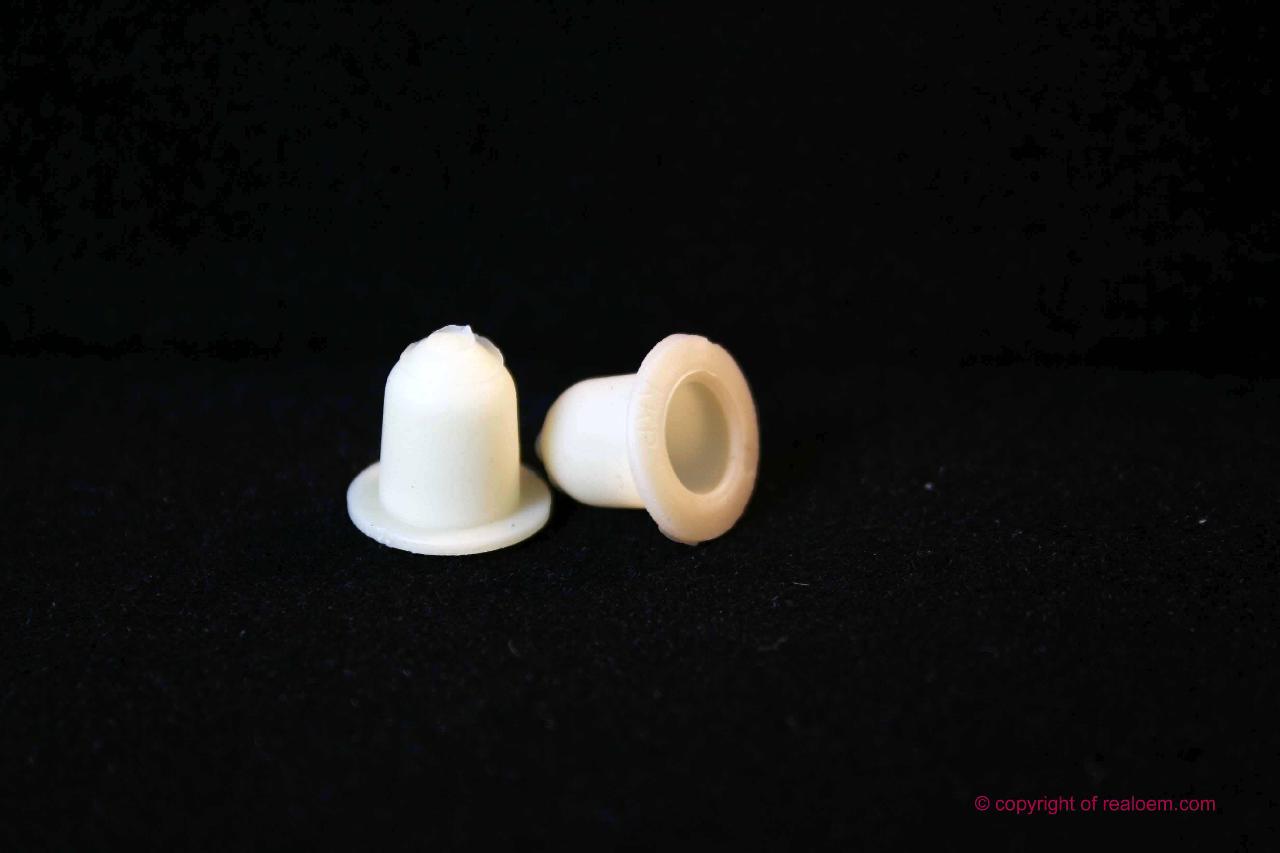

| 04 | Grommet | X | 51131960127 | $0.23 | Shop at ECS Tuning | |||||
| 05 | Clamp | X | 51138166675 | $1.26 | Shop at ECS Tuning | |||||

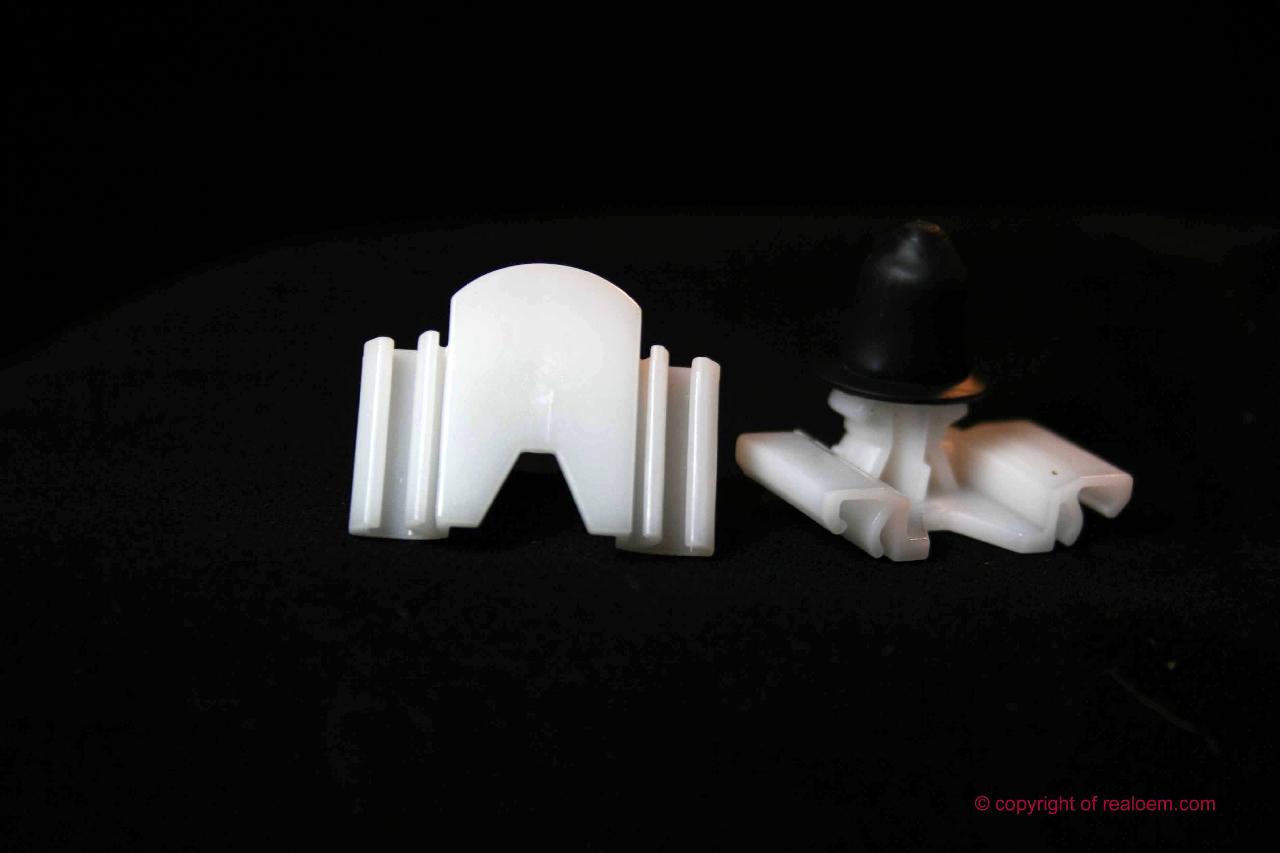

| 06 | Clamp | X | 51138183102 | $1.56 | Shop at ECS Tuning | |||||
| 07 | Front left sealing betw.door and entranc | 1 | 51218202675 | $20.77 | Shop at ECS Tuning | |||||
| 07 | Front right sealing betw.door/entrance | 1 | 51218202676 | $20.77 | Shop at ECS Tuning | |||||
| 08 | Rear sealing between door and entrance | 2 | 51228202679 | $20.77 | Shop at ECS Tuning | |||||
| 09 | Clip | L=3,5MM | X | 51218202677 | $0.85 | Shop at ECS Tuning | ||||
| 10 | Clip | L=2,5MM | X | 51218202678 | $0.85 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Exterior trim / grill?
- This technical diagram illustrates the Exterior trim / grill within the Vehicle trim group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Moulding fender front left (Part #51138184481).
- Which models use the hardware listed in this Exterior trim / grill?
- The hardware and components featured in the Exterior trim / grill are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the Moulding fender front left (51138184481) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exterior trim / grill assembly?
- Each item in the Exterior trim / grill corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Moulding fender front left by locating its position on the schematic, which then links to the official BMW part number 51138184481 for the Vehicle trim section.
