Cover door sill / wheel arch for BMW 7 Series E38 730i (1996)

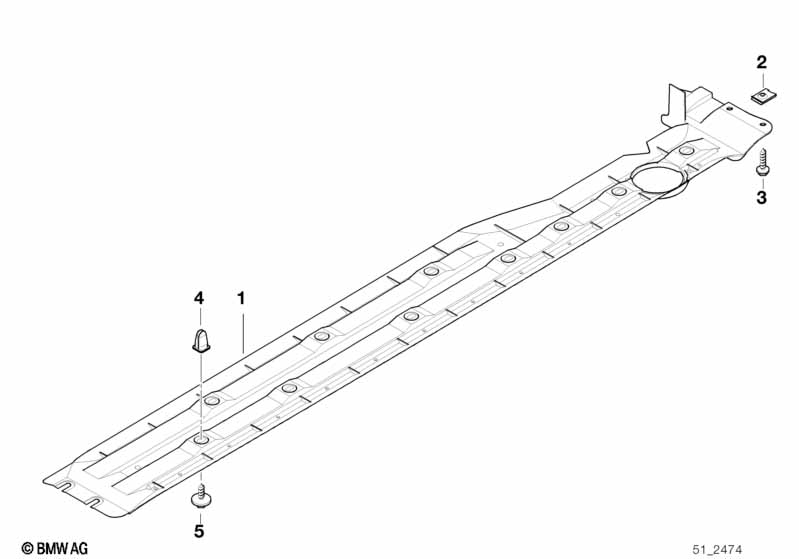

This Cover door sill / wheel arch technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left door sill cover | 1 | 51718171659 | $58.17 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Right door sill cover | 1 | 51718171660 | $58.17 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Body nut | ST4,8-9-ZNS3 | 4 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 03 | Hex head screw | ST4,8X19-U2 SW | 4 | 07119904288 | $2.05 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | ST 4.8 WEISS | X | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 05 | Hex head screw | ST 4,8X18 SW8 | X | 07147129161 | $0.25 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 730i Cover door sill / wheel arch?
- This technical diagram illustrates the Cover door sill / wheel arch within the Vehicle trim group for the 7 Series E38 730i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Left door sill cover (Part #51718171659).
- Which models use the hardware listed in this Cover door sill / wheel arch?
- The hardware and components featured in the Cover door sill / wheel arch are specific to the 7 Series E38 730i produced during 1996. These technical specifications ensure that parts like the Left door sill cover (51718171659) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cover door sill / wheel arch assembly?
- Each item in the Cover door sill / wheel arch corresponds to the numbered list below the illustration. For the 7 Series E38 730i, you can identify the Left door sill cover by locating its position on the schematic, which then links to the official BMW part number 51718171659 for the Vehicle trim section.
