Center console for BMW 5 Series E39 528i (2000)

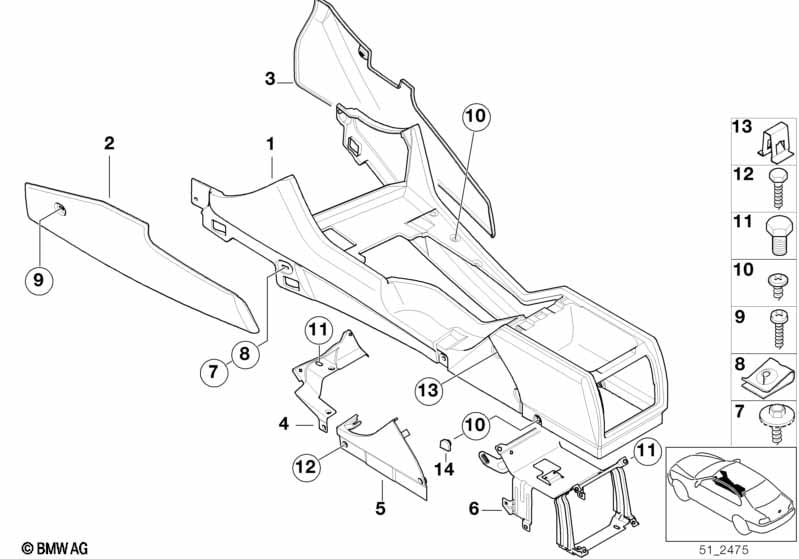

This Center console technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Center console | SCHWARZ | 1 | 07/2003 | 51168196881 | $251.10 | ENDED | Shop at ECS Tuning | ||
| 01 | Center console | SCHWARZ | 1 | 51167140657 | $481.91 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Center console | GRAU | 1 | 07/2003 | 51168196882 | $251.10 | ENDED | Shop at ECS Tuning | ||
| 01 | Center console | GRAU | 1 | 51167140658 | $481.91 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Center console | SANDBEIGE | 1 | 07/2003 | 51168196884 | $251.10 | ENDED | Shop at ECS Tuning | ||
| 01 | Center console | SANDBEIGE | 1 | 51167140660 | $481.91 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Center console | MARINEBLAU | 1 | 51167140659 | $481.91 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Center console | ENGLISCHGRÜN | 1 | 51167140661 | $251.10 | ENDED, +core | Shop at ECS Tuning | |||
| LEATHER VERSION MONTANA | ||||||||||
| 01 | Center console | SCHWARZ | 1 | 51168209840 | $1470.78 | ENDED | Shop at ECS Tuning | |||
| 01 | Center console | GRAU | 1 | 51168209841 | $951.39 | ENDED | Shop at ECS Tuning | |||
| 01 | Center console | MARINEBLAU | 1 | 51168209842 | $951.39 | ENDED | Shop at ECS Tuning | |||
| 01 | Center console | SANDBEIGE | 1 | 51168209843 | $951.39 | ENDED | Shop at ECS Tuning | |||
| 02 | Front left center console trim panel | SCHWARZ | 1 | 51168196911 | $64.32 | Shop at ECS Tuning | ||||
| 02 | Front left center console trim panel | GRAU | 1 | 51168196913 | $64.32 | Shop at ECS Tuning | ||||
| 02 | Front left center console trim panel | MARINEBLAU | 1 | 51168196915 | $54.13 | ENDED | Shop at ECS Tuning | |||
| 02 | Front left center console trim panel | SANDBEIGE | 1 | 51168196917 | $64.32 | ENDED | Shop at ECS Tuning | |||
| 02 | Front left center console trim panel | DUNKELGRUEN | 1 | 51168196919 | $54.13 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Latent heat accumulator |
=Yes |
|||||||||
| 02 | Front left center console trim panel | SCHWARZ | 1 | 51168200879 | $54.13 | ENDED | Shop at ECS Tuning | |||
| 02 | Front left center console trim panel | GRAU | 1 | 51168200881 | $54.13 | ENDED | Shop at ECS Tuning | |||
| 02 | Front left center console trim panel | MARINEBLAU | 1 | 51168200883 | $54.13 | ENDED | Shop at ECS Tuning | |||
| 02 | Front left center console trim panel | SANDBEIGE | 1 | 51168200885 | $54.13 | ENDED | Shop at ECS Tuning | |||
| 02 | Front left center console trim panel | DUNKELGRUEN | 1 | 51168200887 | $54.13 | ENDED | Shop at ECS Tuning | |||
| 03 | Front right center console trim panel | SCHWARZ | 1 | 51168196912 | $64.32 | Shop at ECS Tuning | ||||
| 03 | Front right center console trim panel | GRAU | 1 | 51168196914 | $64.32 | Shop at ECS Tuning | ||||
| 03 | Front right center console trim panel | MARINEBLAU | 1 | 51168196916 | $54.13 | ENDED | Shop at ECS Tuning | |||
| 03 | Front right center console trim panel | SANDBEIGE | 1 | 51168196918 | $64.32 | Shop at ECS Tuning | ||||
| 03 | Front right center console trim panel | DUNKELGRUEN | 1 | 51168196920 | $54.13 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Latent heat accumulator |
=Yes |
|||||||||
| 03 | Front right center console trim panel | SCHWARZ | 1 | 51168200880 | $54.13 | Shop at ECS Tuning | ||||
| 03 | Front right center console trim panel | GRAU | 1 | 51168200882 | $54.13 | ENDED | Shop at ECS Tuning | |||
| 03 | Front right center console trim panel | MARINEBLAU | 1 | 51168200884 | $54.13 | ENDED | Shop at ECS Tuning | |||
| 03 | Front right center console trim panel | SANDBEIGE | 1 | 51168200886 | $54.13 | ENDED | Shop at ECS Tuning | |||
| 03 | Front right center console trim panel | DUNKELGRUEN | 1 | 51168200888 | $54.13 | ENDED | Shop at ECS Tuning | |||
| 04 | Bracket, center console | 1 | 51168159703 | $2.13 | Shop at ECS Tuning | |||||
| 05 | Cover center console | SCHWARZ | 1 | 51168196901 | $23.27 | Shop at ECS Tuning | ||||
| 05 | Cover center console | GRAU | 1 | 51168196902 | $23.27 | Shop at ECS Tuning | ||||
| 05 | Cover center console | MARINEBLAU | 1 | 51168196903 | $32.36 | ENDED | Shop at ECS Tuning | |||
| 05 | Cover center console | SANDBEIGE | 1 | 51168196904 | $23.27 | Shop at ECS Tuning | ||||
| 05 | Cover center console | DUNKELGRUEN | 1 | 51168196905 | $32.36 | ENDED | Shop at ECS Tuning | |||
| 06 | Bracket, center console rear | 1 | 51168236768 | $38.60 | ENDED | Shop at ECS Tuning | ||||
| 07 | Hex head screw | 4,2X19MM | 1 | 51168192903 | $0.73 | Shop at ECS Tuning | ||||
| 08 | C-clip nut | 1 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 09 | Sheet metal screw | ST4,2X13 SW | 1 | 07119904186 | $0.18 | Shop at ECS Tuning | ||||
| 10 | Fillister head self-tapping screw | ST4,2X16-Z2 | 1 | 07119907948 | $0.18 | Shop at ECS Tuning | ||||
| 11 | Oval-head screw with washer | DELTA PT4X12 | X | 07149200941 | Shop at ECS Tuning | |||||
| 12 | Sheet metal screw | ST4,2X16MM | 6 | 07119904172 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Plug-in retainer | 2 | 07146957034 | $0.25 | Shop at ECS Tuning | |||||
| 14 | Centre console blind plug | SCHWARZ | 2 | 51168196931 | $0.42 | Shop at ECS Tuning | ||||
| 14 | Centre console blind plug | GRAU | 2 | 51168196932 | $0.42 | Shop at ECS Tuning | ||||
| 14 | Centre console blind plug | MARINEBLAU | 2 | 51168196933 | $0.47 | ENDED | Shop at ECS Tuning | |||
| 14 | Centre console blind plug | SANDBEIGE | 2 | 51168196934 | $0.42 | Shop at ECS Tuning | ||||
| 14 | Centre console blind plug | DUNKELGRUEN | 2 | 51168196935 | $0.47 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
