Mounting parts, center console, rear for BMW 5 Series E39 528i (2000)

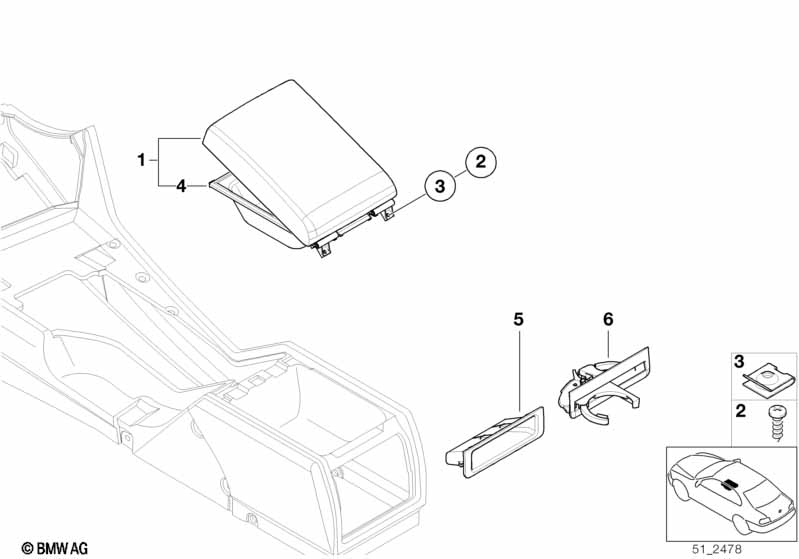

This Mounting parts, center console, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, centre console | SCHWARZ | 1 | 51167140702 | $167.11 | ENDED | Shop at ECS Tuning | |||
| 01 | Cover, centre console | GRAU | 1 | 51167140703 | $175.19 | +core | Shop at ECS Tuning | |||
| 01 | Cover, centre console | MARINEBLAU | 1 | 51167140704 | $175.19 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Cover, centre console | SANDBEIGE | 1 | 51167140705 | $175.19 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Cover, centre console | ENGLISCHGRÜN | 1 | 51167140706 | $175.19 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Fillister head self-tapping screw | ST4,2X19-Z1 | 2 | 07119907801 | $0.22 | Shop at ECS Tuning | ||||
| 03 | Body nut | ST4,2-2 | 2 | 07129904245 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Center armrest tray | 1 | 51168196967 | $25.23 | Shop at ECS Tuning | |||||

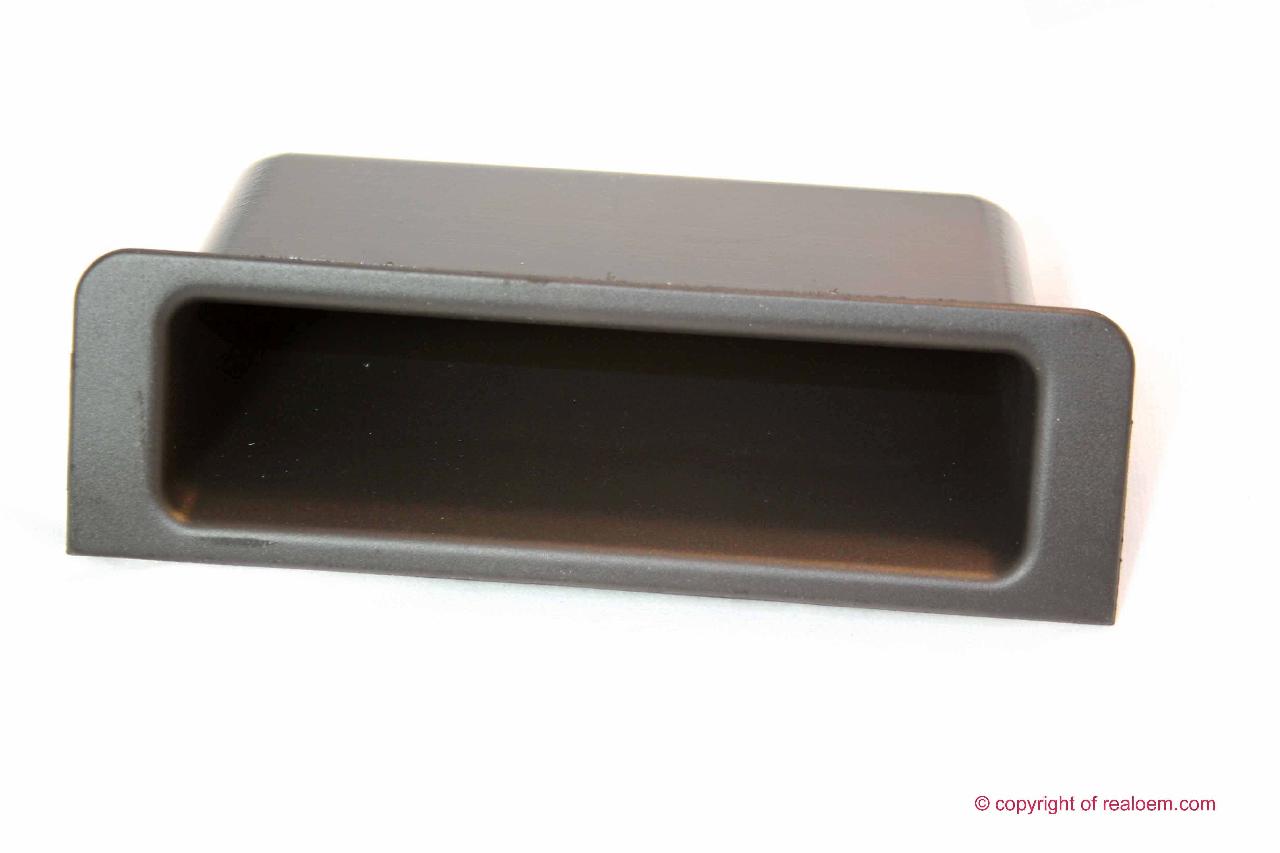

| 05 | Center console cubby, rear | 1 | 51168159701 | $11.32 | Shop at ECS Tuning | |||||

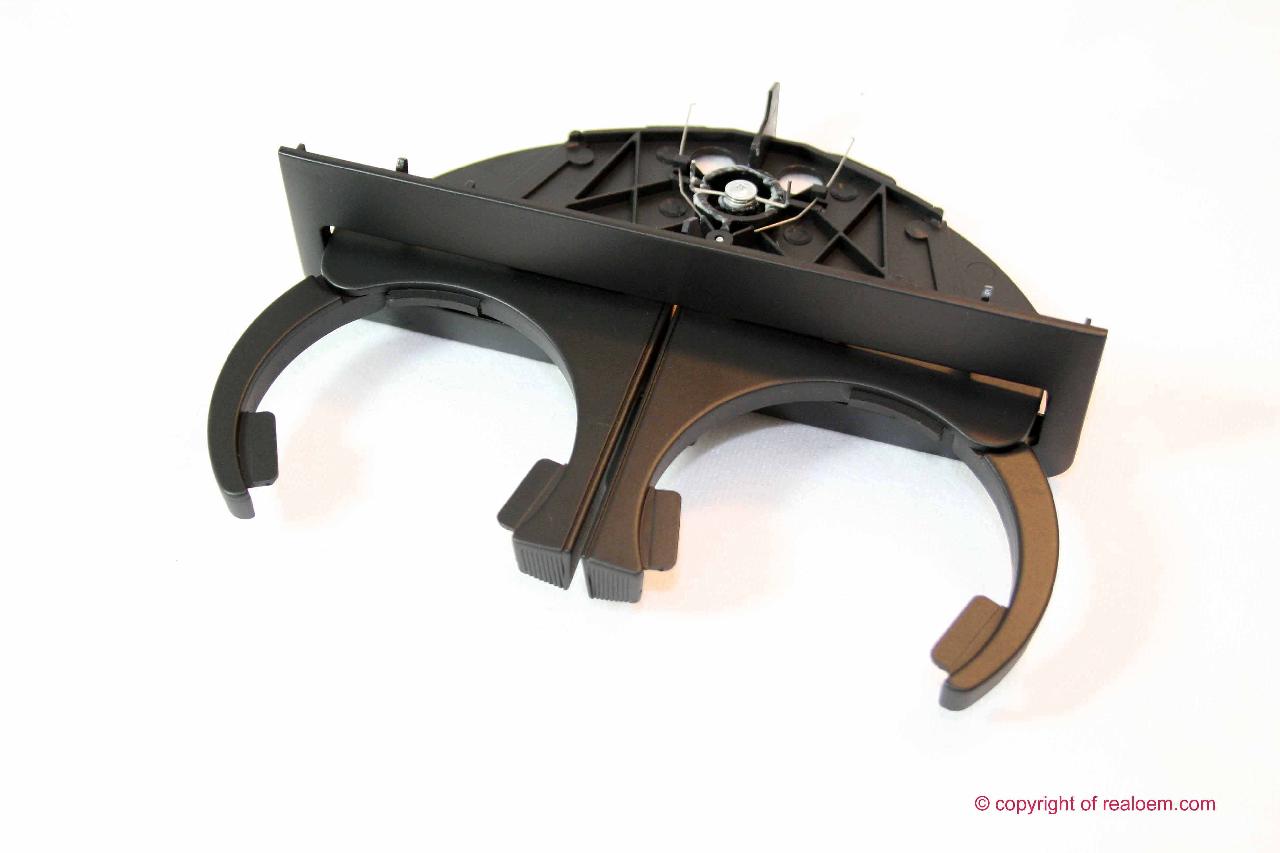

| 06 | Rear CAN holder | SCHWARZ | 1 | 51168184520 | $54.05 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
