Armrest, centre console for BMW 5 Series E39 530i (2003)

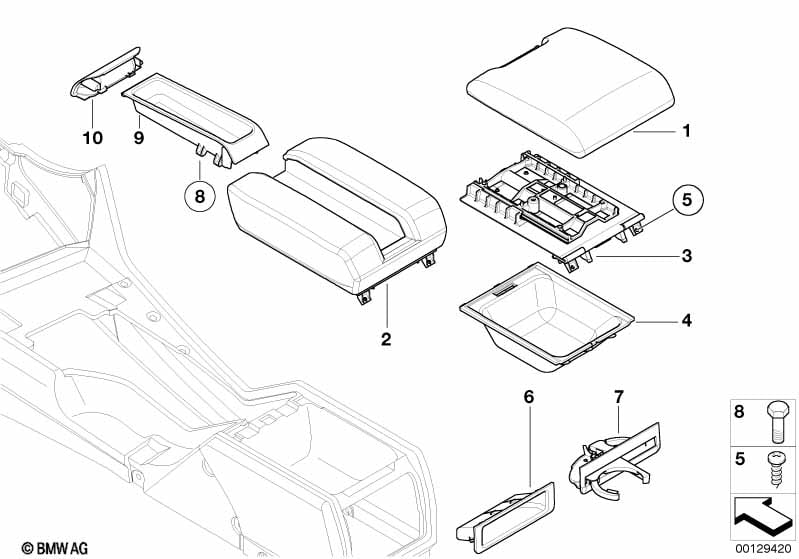

This Armrest, centre console technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Center arm rest, imitation leather | SCHWARZ | 1 | 51167140687 | $192.95 | Shop at ECS Tuning | ||||
| 01 | Center arm rest, imitation leather | GRAU | 1 | 51167140688 | $192.95 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Center arm rest, imitation leather | MARINEBLAU | 1 | 51167140689 | $208.95 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Center arm rest, imitation leather | SANDBEIGE | 1 | 51167140690 | $192.95 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Center arm rest, imitation leather | ENGLISCHGRÜN | 1 | 51167140691 | $185.26 | ENDED, +core | Shop at ECS Tuning | |||
| LEATHER VERSION MONTANA | ||||||||||
| 01 | Center arm rest, leather | SCHWARZ | 1 | 51168190199 | $380.95 | ENDED | Shop at ECS Tuning | |||
| 01 | Center arm rest, leather | GRAU | 1 | 51168190200 | $380.95 | ENDED | Shop at ECS Tuning | |||
| 01 | Center arm rest, leather | MARINEBLAU | 1 | 51168190201 | $107.95 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Center arm rest, leather | SANDBEIGE | 1 | 51168190202 | $380.95 | ENDED | Shop at ECS Tuning | |||
| 02 | Center arm rest f telephone | SCHWARZ | 1 | 09/1997 | 51167140697 | $227.05 | ENDED | Shop at ECS Tuning | ||
| 02 | Center arm rest f telephone | GRAU | 1 | 09/1997 | 51167140698 | $227.05 | ENDED | Shop at ECS Tuning | ||
| 02 | Center arm rest f telephone | MARINEBLAU | 1 | 09/1997 | 51167140699 | $270.07 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Center arm rest f telephone | SANDBEIGE | 1 | 09/1997 | 51167140700 | $227.05 | ENDED | Shop at ECS Tuning | ||
| 02 | Center arm rest f telephone | DUNKELGRÜN | 1 | 09/1997 | 51167140701 | $227.05 | ENDED, +core | Shop at ECS Tuning | ||
| LEATHER VERSION MONTANA | ||||||||||
| 02 | Center arm rest f telephone | SCHWARZ | 1 | 09/1997 | 51168213881 | $427.34 | Shop at ECS Tuning | |||
| 02 | Center arm rest f telephone | GRAU | 1 | 09/1997 | 51168213882 | $427.34 | Shop at ECS Tuning | |||
| 02 | Center arm rest f telephone | MARINEBLAU | 1 | 09/1997 | 51168213883 | $427.34 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Center arm rest f telephone | SANDBEIGE | 1 | 09/1997 | 51168213884 | $427.34 | Shop at ECS Tuning | |||
| 03 | Sliding unit f telephone centre arm rest | 1 | 09/1997 | 51168213874 | $117.10 | Shop at ECS Tuning | ||||
| 03 | Centre arm rest sliding unit | 1 | 51168196965 | $136.05 | Shop at ECS Tuning | |||||
| 04 | Center armrest tray | 1 | 51168196967 | $25.23 | Shop at ECS Tuning | |||||
| 05 | Fillister head screw | M4X12 | 2 | 07119900692 | $1.80 | Shop at ECS Tuning | ||||
| 06 | Center console cubby, rear | 1 | 51168159701 | $11.32 | Shop at ECS Tuning | |||||
| 07 | Rear CAN holder | SCHWARZ | 1 | 51168184520 | $54.05 | ENDED | Shop at ECS Tuning | |||
| 08 | Screw for thermoplastic plastics | M4X16 | 2 | 07129900669 | $0.65 | Shop at ECS Tuning | ||||
| 09 | Center armrest tray | 1 | 09/1997 | 51168215943 | $15.50 | Shop at ECS Tuning | ||||

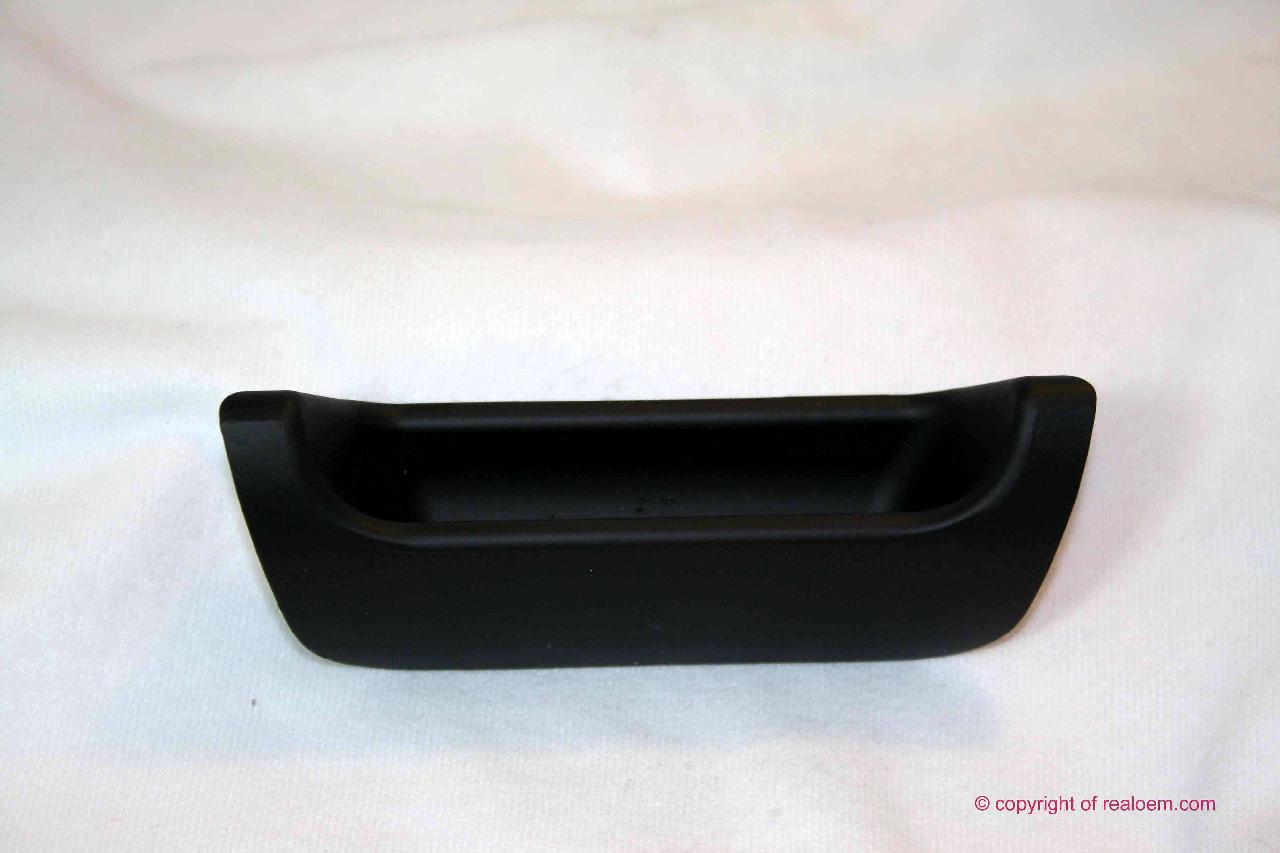

| 10 | Recessed handle | SCHWARZ | 1 | 51167141735 | $7.00 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
