Trim panel leg room for BMW 5 Series E39 528i (1998)

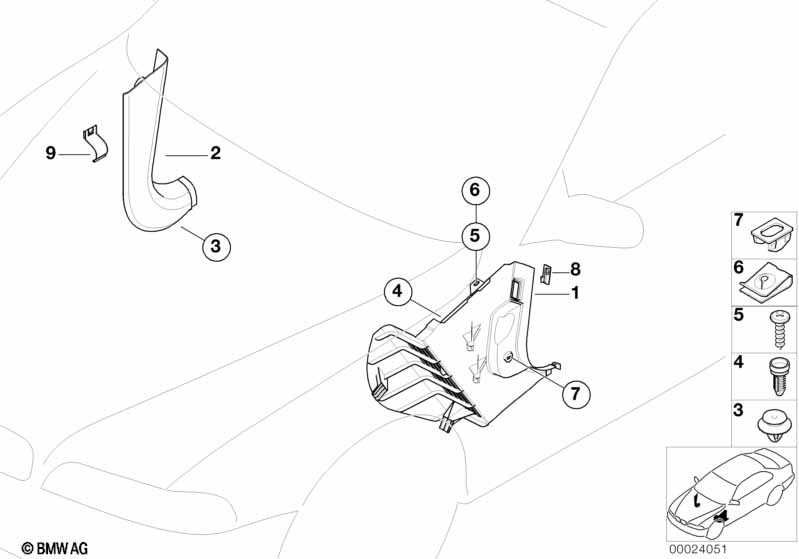

This Trim panel leg room technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lateral trim panel front left | SCHWARZ | 1 | 51438208329 | Shop at ECS Tuning | |||||
| 01 | Lateral trim panel front left | GRAU | 1 | 51438208331 | ENDED | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel front left | MARINEBLAU | 1 | 51438208333 | ENDED | Shop at ECS Tuning | ||||
| 01 | Lateral trim panel front left | SANDBEIGE | 1 | 51438208335 | Shop at ECS Tuning | |||||
| 01 | Lateral trim panel front left | DUNKELGRUEN | 1 | 51438208337 | ENDED | Shop at ECS Tuning | ||||
| 02 | Lateral trim panel front right | SCHWARZ | 1 | 51438208330 | Shop at ECS Tuning | |||||
| 02 | Lateral trim panel front right | GRAU | 1 | 51438208332 | ENDED | Shop at ECS Tuning | ||||
| 02 | Lateral trim panel front right | MARINEBLAU | 1 | 51438208334 | ENDED | Shop at ECS Tuning | ||||
| 02 | Lateral trim panel front right | SANDBEIGE | 1 | 51438208336 | Shop at ECS Tuning | |||||
| 02 | Lateral trim panel front right | DUNKELGRUEN | 1 | 51438208338 | ENDED | Shop at ECS Tuning | ||||
| 03 | Clip, black | 2 | 51498123832 | $0.29 | Shop at ECS Tuning | |||||
| 04 | Locking button | DUNKELGRAU | 1 | 51438173509 | $1.10 | Shop at ECS Tuning | ||||
| 04 | Locking button | DUNKELBEIGE | 1 | 51438173510 | $1.87 | Shop at ECS Tuning | ||||
| 04 | Locking button | HELLGRAU | 1 | 51438203384 | $1.10 | Shop at ECS Tuning | ||||
| 04 | Locking button | DUNKELGRUEN | 1 | 51438208318 | $0.78 | ENDED | Shop at ECS Tuning | |||
| 04 | Locking button | SANDBEIGE | 1 | 51438217709 | $1.10 | Shop at ECS Tuning | ||||
| 04 | Push-button | SCHWARZ | 1 | 51458116321 | $1.10 | Shop at ECS Tuning | ||||
| 05 | Fillister head self-tapping screw | ST4,2X19 | 1 | 51431874616 | $0.39 | Shop at ECS Tuning | ||||
| 06 | C-clip nut | 1 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 07 | Lock insert | 1 | 51711916199 | $0.32 | Shop at ECS Tuning | |||||
| 08 | Cover | SCHWARZ | 1 | 51438212181 | $1.14 | Shop at ECS Tuning | ||||
| 08 | Cover | GRAU | 1 | 51438212182 | $1.14 | Shop at ECS Tuning | ||||
| 08 | Cover | MARINEBLAU | 1 | 51438212183 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 08 | Cover | DUNKELGRUEN | 1 | 51438212184 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 08 | Cover | SANDBEIGE | 1 | 51438212185 | $1.14 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 09 | Warning torch holder | 1 | 51718170078 | $7.37 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
