Glove box for BMW 5 Series E39 528i (2000)

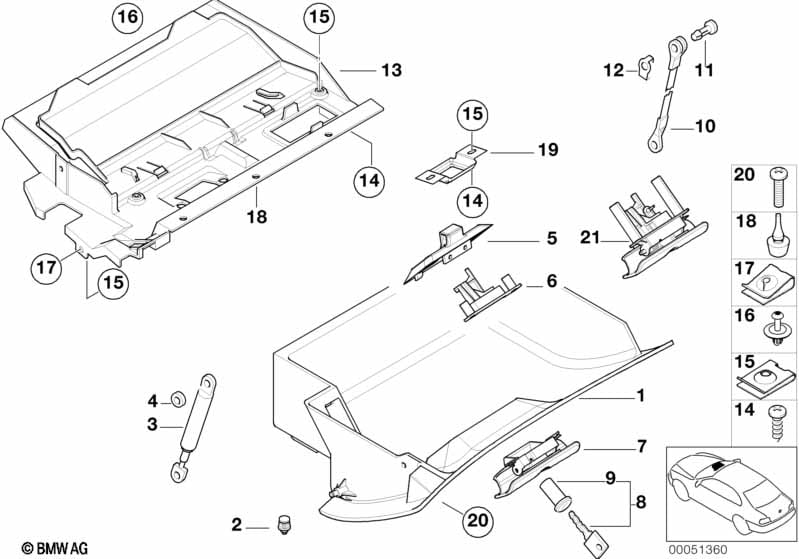

This Glove box technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Glove box vinyl | SCHWARZ | 1 | 51167143320 | $397.36 | +core | Shop at ECS Tuning | |||
| 01 | Glove box vinyl | GRAU | 1 | 51167143321 | $397.36 | +core | Shop at ECS Tuning | |||
| 01 | Glove box vinyl | MARINEBLAU | 1 | 51167143322 | $245.52 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Glove box vinyl | SANDBEIGE | 1 | 51167143323 | $397.36 | +core | Shop at ECS Tuning | |||
| 01 | Glove box vinyl | ENGLISCHGRÜN | 1 | 51167143324 | $245.52 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Glove box clamping bearing | 1 | 51168163902 | $2.83 | Shop at ECS Tuning | |||||
| 03 | Glove box damper | 1 | 09/1997 | 51168235256 | $16.60 | Shop at ECS Tuning | ||||
| 04 | Damping washer | 2 | 51168233599 | $0.47 | Shop at ECS Tuning | |||||
| 05 | Glove box lock upper part | SCHWARZ | 1 | 51168163017 | $14.52 | Shop at ECS Tuning | ||||
| 06 | Glove box locking mechanism | 1 | 51168168048 | $15.27 | ENDED | Shop at ECS Tuning | ||||
| 07 | Glove box lock lower part | SCHWARZ | 1 | 51168163018 | $13.87 | Shop at ECS Tuning | ||||
| 09 | Rep.kit f lock cylinder | 1 | 51169061388 | $36.91 | Shop at ECS Tuning | |||||
| 10 | Glove box joint | 1 | 51168187780 | $3.32 | Shop at ECS Tuning | |||||
| 11 | Pin | 1 | 51161828956 | $0.48 | ENDED | Shop at ECS Tuning | ||||
| 12 | Fuse | 3 | 07129900504 | $0.44 | Shop at ECS Tuning | |||||
| 12 | Circlip | 3 | 01/1996 | 63129904300 | $0.53 | Shop at ECS Tuning | ||||
| 13 | Covering glove box | 1 | 51168159711 | $13.14 | Shop at ECS Tuning | |||||
| 14 | Fillister head self-tapping screw | ST4,2X16-Z2 | 5 | 07119907948 | $0.18 | Shop at ECS Tuning | ||||
| 15 | Body nut | ST4,2-1-ZNS3 | 5 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 16 | Expanding rivet | D=7,5MM | 2 | 51481915964 | $0.43 | Shop at ECS Tuning | ||||
| 17 | C-clip nut | 1 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 18 | Rubber buffer | 3 | 51168244385 | $1.13 | Shop at ECS Tuning | |||||
| 19 | Catch | 1 | 51168164724 | $0.92 | Shop at ECS Tuning | |||||
| 20 | Countersunk screw | M5X20 | 2 | 07119905564 | $1.05 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
