Fine wood trim, Vavona high-polished for BMW 5 Series E39 528i (1998)

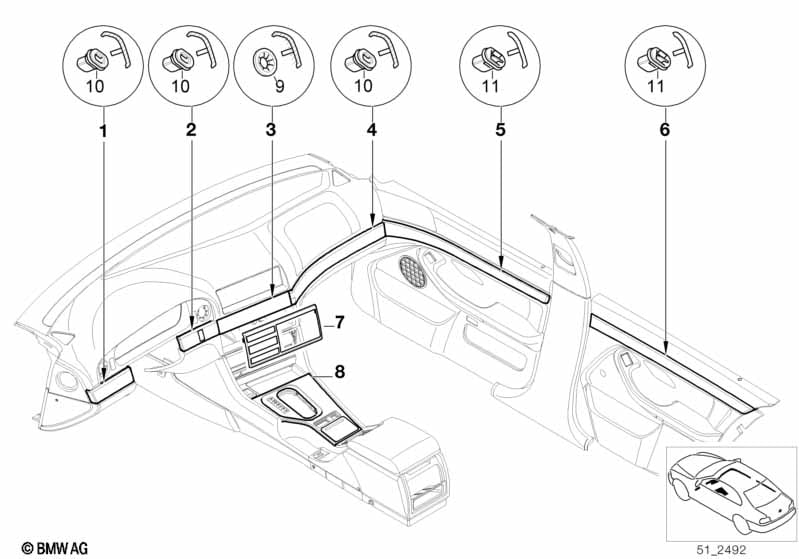

This Fine wood trim, Vavona high-polished technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Standard wood trim/special option SA 773 | |||||||||
| 01 | Wooden strip,instrument panel ext. right | VAVONA | 1 | 51458186962 | Shop at ECS Tuning | |||||
| 02 | Wooden strip,instrument panel cent. rght | VAVONA | 1 | 51458186964 | Shop at ECS Tuning | |||||
| For vehicles with Tyre pressure control (TPC) or Cruise control |
S265A=Yes S540A=Yes |
|||||||||
| 02 | Wooden strip,instrument panel cent. rght | VAVONA | 1 | 51458186976 | ENDED | Shop at ECS Tuning | ||||
| 03 | Wooden cover f radio flap | VAVONA | 1 | 51458159744 | $93.54 | Shop at ECS Tuning | ||||
| 04 | Wooden strip,instrument panel left | VAVONA | 1 | 51458186961 | Shop at ECS Tuning | |||||
| 05 | Wooden strip, door front left | VAVONA | 1 | 51418159639 | $149.53 | Shop at ECS Tuning | ||||
| 05 | Wooden strip, door front right | VAVONA | 1 | 51418159640 | $149.53 | Shop at ECS Tuning | ||||
| 06 | Wooden strip, door rear left | VAVONA | 1 | 51428159657 | $149.53 | Shop at ECS Tuning | ||||
| 06 | Wooden strip, door rear right | VAVONA | 1 | 51428159658 | $149.53 | Shop at ECS Tuning | ||||
| 07 | On bord monitor wood strips | VAVONA | 1 | 09/2000 | 51168386925 | ENDED | Shop at ECS Tuning | |||
| 08 | Base of center console | VAVONA | 1 | 51168196964 | $246.33 | ENDED | Shop at ECS Tuning | |||
| 09 | Spring nut | 3 | 51458220836 | $0.18 | Shop at ECS Tuning | |||||
| 10 | Insert | X | 03/2000 | 51458161557 | $1.23 | Shop at ECS Tuning | ||||
| 11 | Insert | X | 51417001629 | $1.23 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
