Door trim, cloth/leatherette, rear for BMW 5 Series E39 528i (2000)

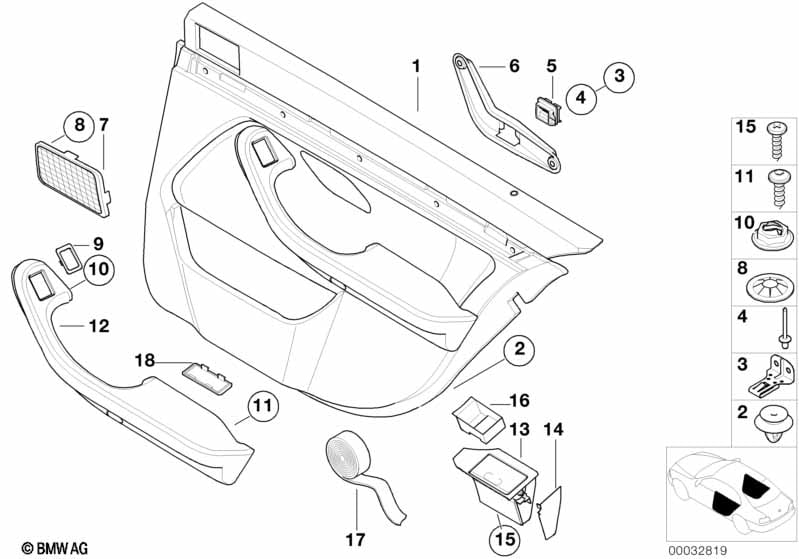

This Door trim, cloth/leatherette, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | OLD/NEW REFERENCE UPHOLSTERY CODE Refer to "Help - abbreviations" in EPC |
|||||||||
| For vehicles with Diagonal rep cloth |
F4=Yes |
|||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 03/1998 | 51427139903 | $732.13 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 03/1998 | 51427139904 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | GRAU | 1 | 03/1998 | 51427139905 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | GRAU | 1 | 03/1998 | 51427139906 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | BIARRITZBLAU | 1 | 09/1998 | 51428252901 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | BIARRITZBLAU | 1 | 09/1998 | 51428252902 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | SIENAROT | 1 | 09/1998 | 51428252905 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | SIENAROT | 1 | 09/1998 | 51428252906 | $498.85 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth flock |
F6=Yes |
|||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 09/1998 | 51428258509 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 09/1998 | 51428258510 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | GRAU | 1 | 09/1998 | 51428258511 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | GRAU | 1 | 09/1998 | 51428258512 | $732.13 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | MARINEBLAU | 1 | 09/1998 | 51428258513 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | MARINEBLAU | 1 | 09/1998 | 51428258514 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | DUNKELGRÜN | 1 | 09/1998 | 51428258515 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | DUNKELGRÜN | 1 | 09/1998 | 51428258516 | $406.22 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Chrome Line Interieur and Roller sun vizor, rear lateral and Diagonal rep cloth |
S345A=Yes S416A=Yes F4=Yes |
|||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 03/1998 | 07/2003 | 51427139955 | $498.85 | ENDED | Shop at ECS Tuning | |
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 03/1998 | 51427139955 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 03/1998 | 51427139956 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | GRAU | 1 | 03/1998 | 51427139957 | $807.70 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | GRAU | 1 | 03/1998 | 51427139958 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | BIARRITZBLAU | 1 | 09/1998 | 51428252921 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | BIARRITZBLAU | 1 | 09/1998 | 51428252922 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | SIENAROT | 1 | 09/1998 | 51428252925 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | SIENAROT | 1 | 09/1998 | 51428252926 | $498.85 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth flock and Roller sun shield and Chrome-Line/SA345 |
F6=Yes =Yes =Yes |
|||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 09/1998 | 51428258519 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 09/1998 | 51428258520 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | GRAU | 1 | 09/1998 | 51428258521 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | GRAU | 1 | 09/1998 | 51428258522 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | MARINEBLAU | 1 | 09/1998 | 51428258523 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | MARINEBLAU | 1 | 09/1998 | 51428258524 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | DUNKELGRÜN | 1 | 09/1998 | 51428258525 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | DUNKELGRÜN | 1 | 09/1998 | 51428258526 | $498.85 | ENDED | Shop at ECS Tuning | ||
| For vehicles with Cloth flock and Roller sun shield and Shadow-Line |
F6=Yes =Yes =Yes |
|||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 09/1998 | 09/2001 | 51428258529 | $498.85 | ENDED | Shop at ECS Tuning | |
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 09/1998 | 09/2001 | 51428258530 | $498.85 | ENDED | Shop at ECS Tuning | |
| 01 | Door trim panel, rear, left | GRAU | 1 | 09/1998 | 09/2001 | 51428258531 | $498.85 | ENDED | Shop at ECS Tuning | |
| 01 | Door trim panel, rear, right | GRAU | 1 | 09/1998 | 09/2001 | 51428258532 | $498.85 | ENDED | Shop at ECS Tuning | |
| 01 | Door trim panel, rear, left | MARINEBLAU | 1 | 09/1998 | 09/2001 | 51428258533 | $498.85 | ENDED | Shop at ECS Tuning | |
| 01 | Door trim panel, rear, right | MARINEBLAU | 1 | 09/1998 | 09/2001 | 51428258534 | $498.85 | ENDED | Shop at ECS Tuning | |
| 01 | Door trim panel, rear, left | DUNKELGRÜN | 1 | 09/1998 | 09/2001 | 51428258535 | $498.85 | ENDED | Shop at ECS Tuning | |
| 01 | Door trim panel, rear, right | DUNKELGRÜN | 1 | 09/1998 | 09/2001 | 51428258536 | $498.85 | ENDED | Shop at ECS Tuning | |
| For vehicles with Shadow-Line and Roller sun vizor, rear lateral and Diagonal rep cloth |
S339A=Yes S416A=Yes F4=Yes |
|||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 03/1998 | 51427139995 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 03/1998 | 51427139996 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | GRAU | 1 | 03/1998 | 51427139997 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | GRAU | 1 | 03/1998 | 51427139998 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | BIARRITZBLAU | 1 | 09/1998 | 51428252941 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | BIARRITZBLAU | 1 | 09/1998 | 51428252942 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, left | SIENAROT | 1 | 09/1998 | 51428252945 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 01 | Door trim panel, rear, right | SIENAROT | 1 | 09/1998 | 51428252946 | $498.85 | ENDED | Shop at ECS Tuning | ||
| 18 | Cover f footwell light cut-out | SCHWARZ | 2 | 51418261519 | $4.16 | Shop at ECS Tuning | ||||
| 18 | Cover f footwell light cut-out | GRAU | 2 | 51418261520 | $1.73 | Shop at ECS Tuning | ||||
| 18 | Cover f footwell light cut-out | SANDBEIGE | 2 | 51418261521 | $1.73 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
