Trim panel A- / B- / C-Column for BMW 5 Series E39 523i (2000)

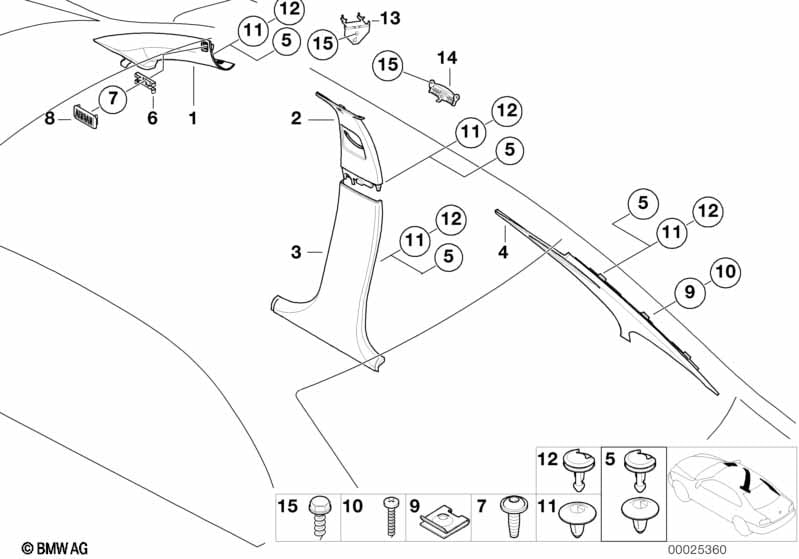

This Trim panel A- / B- / C-Column technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with ITS - Head airbag |
=Yes |
|||||||||
| 01 | Left windshield panel cover - ITS | HELLGRAU | 1 | 09/1997 | 51438235005 | $54.29 | Shop at ECS Tuning | |||
| 01 | Right windshield panel cover - ITS | HELLGRAU | 1 | 09/1997 | 51438235006 | $54.29 | Shop at ECS Tuning | |||
| 01 | Left windshield panel cover - ITS | SANDBEIGE | 1 | 51438235007 | $54.29 | ENDED | Shop at ECS Tuning | |||
| 01 | Right windshield panel cover - ITS | SANDBEIGE | 1 | 51438235008 | $54.29 | Shop at ECS Tuning | ||||
| 01 | Left windshield panel cover - ITS | ANTHRAZIT | 1 | 09/1997 | 51432252889 | $61.90 | ENDED | Shop at ECS Tuning | ||
| 01 | Right windshield panel cover - ITS | ANTHRAZIT | 1 | 09/1997 | 51432252890 | $61.90 | ENDED | Shop at ECS Tuning | ||
| 02 | Trim panel,lft upper centre column ITS | SANDBEIGE | 1 | 51437013939 | $76.81 | ENDED | Shop at ECS Tuning | |||
| 02 | Trim panel,right upper centre column ITS | SANDBEIGE | 1 | 51437013940 | $76.81 | ENDED | Shop at ECS Tuning | |||
| 02 | Trim panel,lft upper centre column ITS | ANTHRAZIT | 1 | 09/1997 | 51437893547 | $55.10 | ENDED | Shop at ECS Tuning | ||
| 02 | Trim panel,right upper centre column ITS | ANTHRAZIT | 1 | 09/1997 | 51437893548 | $55.10 | Shop at ECS Tuning | |||
| 03 | Covering column-center lower left | SCHWARZ | 1 | 51438202611 | $67.98 | Shop at ECS Tuning | ||||
| 03 | Trim panel, right lower centre column | SCHWARZ | 1 | 51438202612 | $67.98 | Shop at ECS Tuning | ||||
| 03 | Covering column-center lower left | MARINEBLAU | 1 | 51438202613 | $67.98 | ENDED | Shop at ECS Tuning | |||
| 03 | Trim panel, right lower centre column | MARINEBLAU | 1 | 51438202614 | $67.98 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering column-center lower left | DUNKELGRUEN | 1 | 51438202615 | $30.13 | ENDED | Shop at ECS Tuning | |||
| 03 | Trim panel, right lower centre column | DUNKELGRUEN | 1 | 51438202616 | $30.13 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering column-center lower left | GRAU | 1 | 51438207195 | $67.98 | Shop at ECS Tuning | ||||
| 03 | Trim panel, right lower centre column | GRAU | 1 | 51438207196 | $67.98 | Shop at ECS Tuning | ||||
| 03 | Covering column-center lower left | SANDBEIGE | 1 | 51438207197 | $67.98 | Shop at ECS Tuning | ||||
| 03 | Trim panel, right lower centre column | SANDBEIGE | 1 | 51438207198 | $67.98 | Shop at ECS Tuning | ||||
| 04 | Trim panel column, rear left | ANTHRAZIT | 1 | 51432491495 | $86.59 | ENDED | Shop at ECS Tuning | |||
| 04 | Trim panel column, rear right | ANTHRAZIT | 1 | 51432491496 | $86.59 | Shop at ECS Tuning | ||||
| 04 | Trim panel column, rear left | HELLGRAU | 1 | 51438207835 | $86.59 | ENDED | Shop at ECS Tuning | |||
| 04 | Trim panel column, rear right | HELLGRAU | 1 | 51438207836 | $86.59 | ENDED | Shop at ECS Tuning | |||
| 04 | Trim panel column, rear left | SANDBEIGE | 1 | 51438207837 | $86.59 | ENDED | Shop at ECS Tuning | |||
| 04 | Trim panel column, rear right | SANDBEIGE | 1 | 51438207838 | $86.59 | ENDED | Shop at ECS Tuning | |||
| 05 | Clip | X | 51438189311 | $0.55 | Shop at ECS Tuning | |||||
| For vehicles with ITS - Head airbag |
=Yes |
|||||||||
| 06 | Cover cap support | 2 | 09/1999 | 51437006830 | $0.64 | Shop at ECS Tuning | ||||
| 07 | Oval-head screw, shoulder, self-thread | M5X28 ISA | 2 | 09/1997 | 07147195762 | $0.33 | Shop at ECS Tuning | |||
| 08 | Cover cap "Airbag" | SCHWARZ | 2 | 09/1997 | 51432251367 | $1.54 | Shop at ECS Tuning | |||
| 08 | Cover cap "Airbag" | HELLGRAU | 2 | 09/1997 | 51438226056 | $1.71 | Shop at ECS Tuning | |||
| 08 | Cover cap "Airbag" | SANDBEIGE | 2 | 09/1997 | 51438226057 | $1.71 | Shop at ECS Tuning | |||
| 13 | Bracket, windshield panel cover - ITS | 2 | 51438227597 | $1.46 | Shop at ECS Tuning | |||||
| 14 | Column B cover bracket ITS | 2 | 51437013951 | $1.23 | ENDED | Shop at ECS Tuning | ||||
| 15 | Hex head screw | ST4,2X13-C-Z2 | 4 | 07119916914 | $0.18 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
