Edge protector / Trim for entry for BMW 5 Series E39 525i (2003)

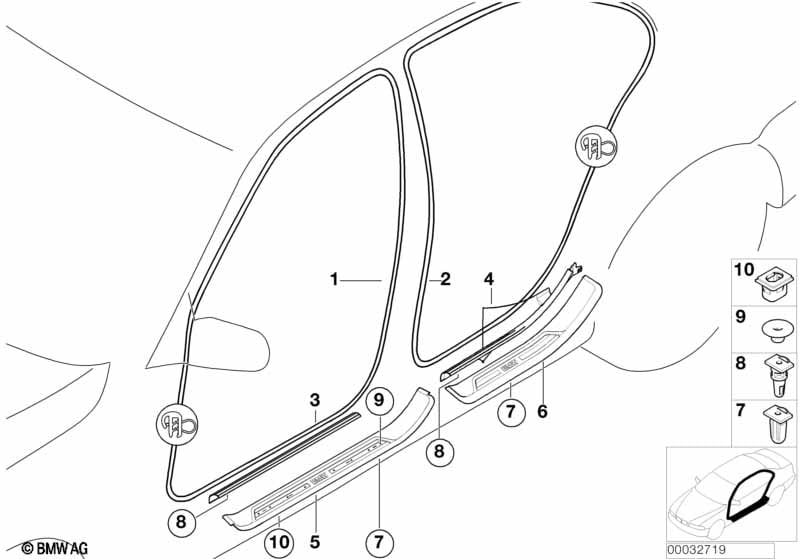

This Edge protector / Trim for entry technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Edge protection front | ANTHRAZIT | 2 | 51727116403 | $62.38 | Shop at ECS Tuning | ||||
| 02 | Edge protection rear | ANTHRAZIT | 2 | 51727116405 | $64.62 | Shop at ECS Tuning | ||||
| 03 | Sill strip front | SCHWARZ | 2 | 51478204004 | $16.05 | Shop at ECS Tuning | ||||
| 03 | Sill strip front | GRAU | 2 | 51478204005 | $16.05 | Shop at ECS Tuning | ||||
| 03 | Sill strip front | MARINEBLAU | 2 | 51478204006 | $16.05 | Shop at ECS Tuning | ||||
| 03 | Sill strip front | SANDBEIGE | 2 | 51478204007 | $16.05 | Shop at ECS Tuning | ||||
| 03 | Sill strip front | DUNKELGRUEN | 2 | 51478204008 | $16.05 | Shop at ECS Tuning | ||||
| 04 | Sill strip rear left | SCHWARZ | 1 | 51478204009 | $16.05 | Shop at ECS Tuning | ||||
| 04 | Sill strip rear right | SCHWARZ | 1 | 51478204010 | $16.05 | Shop at ECS Tuning | ||||
| 04 | Sill strip rear left | GRAU | 1 | 51478204011 | $11.10 | Shop at ECS Tuning | ||||
| 04 | Sill strip rear right | GRAU | 1 | 51478204012 | $16.05 | Shop at ECS Tuning | ||||
| 04 | Sill strip rear left | MARINEBLAU | 1 | 51478204013 | $16.05 | Shop at ECS Tuning | ||||
| 04 | Sill strip rear right | MARINEBLAU | 1 | 51478204014 | $16.05 | Shop at ECS Tuning | ||||
| 04 | Sill strip rear left | SANDBEIGE | 1 | 51478204015 | $16.05 | Shop at ECS Tuning | ||||
| 04 | Sill strip rear right | SANDBEIGE | 1 | 51478204016 | $16.05 | Shop at ECS Tuning | ||||
| 04 | Sill strip rear left | DUNKELGRUEN | 1 | 51478204017 | $16.05 | Shop at ECS Tuning | ||||
| 04 | Sill strip rear right | DUNKELGRUEN | 1 | 51478204018 | $16.05 | Shop at ECS Tuning | ||||
| 05 | Front left entrance cover | SCHWARZ | 1 | 02/1996 | 51478178119 | $42.60 | Shop at ECS Tuning | |||
| 05 | Front right entrance cover | SCHWARZ | 1 | 02/1996 | 51478178120 | $42.60 | Shop at ECS Tuning | |||
| For vehicles with M Sports package |
P337A=Yes |
|||||||||
| 05 | Front left entrance cover | "M" | 2 | 09/1998 | 51472695661 | $71.50 | Shop at ECS Tuning | |||
| 05 | M trim piece, front left entry | SCHWARZ | 2 | 09/1998 | 51472466363 | Shop at ECS Tuning | ||||
| 05 | Front right entrance cover | "M" | 2 | 09/1998 | 51472695662 | $71.50 | Shop at ECS Tuning | |||
| 05 | M trim piece, front right entry | SCHWARZ | 2 | 09/1998 | 51472466364 | Shop at ECS Tuning | ||||
| For vehicles with Individual BMW identification |
S778A=Yes |
|||||||||
| 05 | Front right entrance cover | INDIVIDUAL | 1 | 01/2000 | 51472466366 | Shop at ECS Tuning | ||||
| 05 | Front left entrance cover | INDIVIDUAL | 1 | 01/2000 | 51477893359 | $106.41 | Shop at ECS Tuning | |||
| 05 | Front left entrance cover | INDIVIDUAL | 1 | 01/2000 | 51472466365 | Shop at ECS Tuning | ||||
| 06 | Rear left entrance cover | SCHWARZ | 1 | 02/1996 | 51478178123 | $42.60 | Shop at ECS Tuning | |||
| 06 | Rear right entrance cover | SCHWARZ | 1 | 02/1996 | 51478178124 | $42.60 | Shop at ECS Tuning | |||
| For vehicles with M Sports package |
P337A=Yes |
|||||||||
| 06 | Rear left entrance cover | "M" | 2 | 09/1998 | 51472695671 | $67.00 | Shop at ECS Tuning | |||
| 06 | Rear right entrance cover | "M" | 2 | 09/1998 | 51472695672 | $67.00 | Shop at ECS Tuning | |||
| For vehicles with Individual SA778 |
=Yes |
|||||||||
| 06 | Rear left entrance cover | BMW INDIVIDUAL | 1 | 01/2000 | 51477893361 | $106.41 | ENDED, +core | Shop at ECS Tuning | ||
| 06 | Rear right entrance cover | BMW INDIVIDUAL | 1 | 01/2000 | 51477893362 | $106.41 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Clip Natur | L=13,2MM | X | 51471840960 | $0.24 | Shop at ECS Tuning | ||||
| 08 | Sill strip clip | X | 51478234047 | $0.44 | Shop at ECS Tuning | |||||
| 09 | Insert | 2 | 51418252848 | $0.35 | Shop at ECS Tuning | |||||
| 10 | Insert | 2 | 05/1997 | 51478238611 | $0.75 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525i Edge protector / Trim for entry?
- This technical diagram illustrates the Edge protector / Trim for entry within the Vehicle trim group for the 5 Series E39 525i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Edge protection front (Part #51727116403).
- Which models use the hardware listed in this Edge protector / Trim for entry?
- The hardware and components featured in the Edge protector / Trim for entry are specific to the 5 Series E39 525i produced during 2003. These technical specifications ensure that parts like the Edge protection front (51727116403) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Edge protector / Trim for entry assembly?
- Each item in the Edge protector / Trim for entry corresponds to the numbered list below the illustration. For the 5 Series E39 525i, you can identify the Edge protection front by locating its position on the schematic, which then links to the official BMW part number 51727116403 for the Vehicle trim section.
