Headlining / Handle for BMW 5 Series E39 528i (2000)

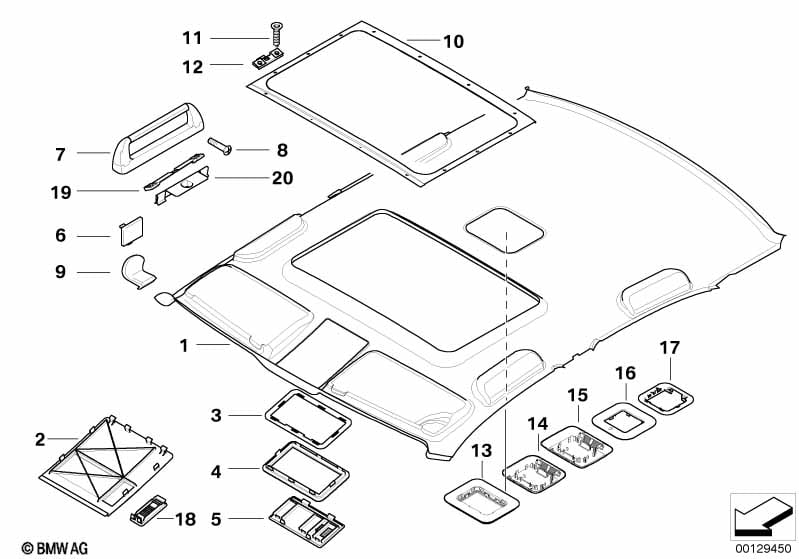

This Headlining / Handle technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with ITS - Head airbag |
=Yes |
|||||||||
| 01 | Molded headlining f slid. lift. roof ITS | ANTHRAZIT | 1 | 09/2000 | 51442251953 | $488.62 | +core | Shop at ECS Tuning | ||
| 01 | Molded roof lining ITS | ANTHRAZIT | 1 | 09/1997 | 09/2000 | 51442251931 | $428.81 | ENDED, +core | Shop at ECS Tuning | |
| 01 | Molded roof lining ITS | HELLGRAU | 1 | 09/1997 | 09/2000 | 51448233229 | $428.81 | +core | Shop at ECS Tuning | |
| 01 | Molded roof lining ITS | SANDBEIGE | 1 | 09/1997 | 09/2000 | 51448233230 | $428.81 | ENDED, +core | Shop at ECS Tuning | |
| For vehicles with Lift-up-and-slide-back sunroof, electric and ITS - Head airbag |
S401A=Yes =Yes |
|||||||||
| 01 | Molded headlining f slid. lift. roof ITS | HELLGRAU | 1 | 09/1997 | 09/2000 | 51448233227 | $488.62 | Shop at ECS Tuning | ||
| 01 | Molded headlining f slid. lift. roof ITS | SANDBEIGE | 1 | 09/1997 | 09/2000 | 51448233228 | $488.62 | ENDED, +core | Shop at ECS Tuning | |
| 02 | Cover sliding roof motor | ANTHRAZIT | 1 | 51442268978 | $28.75 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover sliding roof motor | HELLGRAU | 1 | 51448206527 | $28.75 | +core | Shop at ECS Tuning | |||
| 02 | Cover sliding roof motor | SANDBEIGE | 1 | 51448206528 | $28.75 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Hands-free telephone |
=Yes |
|||||||||
| 02 | Cover sliding roof motor | ANTHRAZIT | 1 | 51442269454 | $28.75 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Cover sliding roof motor | HELLGRAU | 1 | 51448206529 | $28.75 | +core | Shop at ECS Tuning | |||
| 02 | Cover sliding roof motor | SANDBEIGE | 1 | 51448206530 | $28.75 | Shop at ECS Tuning | ||||
| For vehicles with Hands-free telephone only applies to garage door opener |
=Yes |
|||||||||
| 02 | Cover sliding roof motor | ANTHRAZIT | 1 | 51442269455 | $28.75 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover sliding roof motor | HELLGRAU | 1 | 51448206531 | $28.75 | Shop at ECS Tuning | ||||
| 02 | Cover sliding roof motor | SANDBEIGE | 1 | 51448206532 | $28.75 | Shop at ECS Tuning | ||||
| 03 | Frame f hands free telephone | 1 | 51448171515 | $1.65 | Shop at ECS Tuning | |||||
| 04 | Frame f hands free telephone | ANTHRAZIT | 1 | 51442268975 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Frame f hands free telephone | HELLGRAU | 1 | 51448174704 | $3.21 | Shop at ECS Tuning | ||||
| 04 | Frame f hands free telephone | SANDBEIGE | 1 | 51448174705 | $3.21 | ENDED | Shop at ECS Tuning | |||
| 05 | Cover, microphone | HELLGRAU | 1 | 05/1998 | 51448250115 | $4.29 | Shop at ECS Tuning | |||
| 05 | Cover, microphone | SANDBEIGE | 1 | 05/1998 | 51448250117 | $4.29 | Shop at ECS Tuning | |||
| 05 | Cover, microphone | ANTHRAZIT | 1 | 05/1998 | 51448250118 | $4.29 | Shop at ECS Tuning | |||
| For vehicles with ITS - Head airbag |
=Yes |
|||||||||
| 06 | Covering cap for grip 0° - ITS | HELLGRAU | 4 | 09/1997 | 51168268637 | $0.56 | Shop at ECS Tuning | |||
| 06 | Covering cap for grip 0° - ITS | SANDBEIGE | 4 | 09/1997 | 51168268638 | $0.56 | Shop at ECS Tuning | |||
| 06 | Covering cap for grip 0° - ITS | SCHWARZ | 4 | 09/1997 | 51168268639 | $0.56 | Shop at ECS Tuning | |||
| For vehicles with ITS - Head airbag and Lift-up-and-slide-back sunroof |
=Yes =Yes |
|||||||||
| 06 | Covering cap for grip 8° - ITS | HELLGRAU | 4 | 09/1997 | 51168268640 | $0.56 | Shop at ECS Tuning | |||
| 06 | Covering cap for grip 8° - ITS | SANDBEIGE | 4 | 09/1997 | 51168268641 | $0.56 | ENDED | Shop at ECS Tuning | ||
| 06 | Covering cap for grip 8° - ITS | SCHWARZ | 4 | 09/1997 | 51168268642 | $0.56 | Shop at ECS Tuning | |||
| For vehicles with ITS - Head airbag |
=Yes |
|||||||||
| 07 | Handle front - ITS | SCHWARZ | 2 | 09/1997 | 51168245906 | $38.02 | ENDED | Shop at ECS Tuning | ||
| 07 | Handle front - ITS | HELLBEIGE | 2 | 09/1997 | 51168245905 | $38.02 | +core | Shop at ECS Tuning | ||
| 07 | Handle front - ITS | HELLGRAU | 2 | 09/1997 | 51168245894 | $38.02 | ENDED, +core | Shop at ECS Tuning | ||
| 07 | Handle rear left - ITS | SCHWARZ | 1 | 09/1997 | 51168245909 | $38.02 | +core | Shop at ECS Tuning | ||
| 07 | Handle, rear right - ITS | SCHWARZ | 1 | 09/1997 | 51168245910 | $38.02 | Shop at ECS Tuning | |||
| 07 | Handle rear left - ITS | HELLGRAU | 1 | 09/1997 | 51168245911 | $38.02 | Shop at ECS Tuning | |||
| 07 | Handle, rear right - ITS | HELLGRAU | 1 | 09/1997 | 51168245912 | $38.02 | +core | Shop at ECS Tuning | ||
| 07 | Handle rear left - ITS | HELLBEIGE | 1 | 09/1997 | 51168245913 | $38.02 | +core | Shop at ECS Tuning | ||
| 07 | Handle, rear right - ITS | HELLBEIGE | 1 | 09/1997 | 51168245914 | $38.02 | ENDED, +core | Shop at ECS Tuning | ||
| 08 | Fillister head self-tapping screw | ST4,8X19 | 8 | 07119907790 | $0.25 | Shop at ECS Tuning | ||||
| 09 | Handle hook | SCHWARZ | 2 | 51162236798 | $0.86 | Shop at ECS Tuning | ||||
| 09 | Handle hook | HELLGRAU | 2 | 51168175015 | $0.79 | Shop at ECS Tuning | ||||
| 09 | Handle hook | SANDBEIGE | 2 | 51168175016 | $0.79 | Shop at ECS Tuning | ||||
| 10 | Frame sliding-lifting roof | 1 | 54128174073 | $27.27 | Shop at ECS Tuning | |||||
| 11 | Torx-countersunk head screw | ISA L=9.5MM | X | 54128169957 | $0.29 | Shop at ECS Tuning | ||||
| 12 | Clamp | 2 | 54138120576 | $1.84 | Shop at ECS Tuning | |||||
| 15 | Cover f ultrasonic burglar alarm | HELLGRAU | 1 | 09/1998 | 51448249975 | $55.40 | Shop at ECS Tuning | |||
| 15 | Cover f ultrasonic burglar alarm | HELLBEIGE | 1 | 09/1998 | 51448249976 | $55.40 | ENDED | Shop at ECS Tuning | ||
| 15 | Cover f ultrasonic burglar alarm | SCHWARZ | 1 | 09/1998 | 51448249977 | $55.40 | Shop at ECS Tuning | |||
| 16 | Bracket f ultrasonic module top | 1 | 51448249978 | $5.42 | ENDED | Shop at ECS Tuning | ||||
| 17 | Bracket f ultrasonic module bottom | 1 | 51448243665 | $5.33 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Hands-free telephone and Lift-up-and-slide-back sunroof |
=Yes =Yes |
|||||||||
| 18 | Cover, microphone | SCHWARZ | 1 | 05/1998 | 51448250108 | $4.29 | Shop at ECS Tuning | |||
| 19 | Front handle base - ITS | 1 | 09/1997 | 51168243132 | $3.52 | Shop at ECS Tuning | ||||
| 20 | Bracket for sliding lifting roof frame | 14 | 51448169740 | $0.55 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
